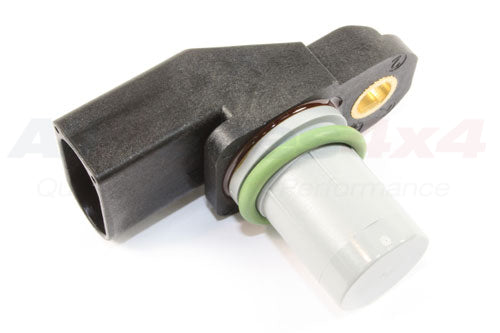

8510297 - Camshaft Position Sensor Electrical Part Land Rover Range Rover Freelander 1, Range Rover

8510297 - Nokkenaspositiesensor

- €117,30
€117,30
€117,30 - €117,30
€117,30
Aftermarket Part
Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.
Nokkenassensor bewaakt de rotatiepositie van de nokkenas en rapporteert deze aan de motor-ECU.

De ECU gebruikt dit signaal om de cilinderpositie te identificeren en de brandstofinjectietiming in te stellen, in samenwerking met de krukaspositiesensor om sequentiële injectie te coördineren. De sensor wordt op de cilinderkop gemonteerd en leest een doel op de nokkenas.

Deze wordt gemonteerd op de van BMW afgeleide dieselmotoren (Td4 2.0L en Td6 3.0L) en maakt gebruik van een driepolige connector met een D-vormige stekker.
Vehicle Model Land Rover Freelander 1 1996-2006 (L314)
Range Rover 2002-2012 (L322)
Alternative Codes
8510297

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

  • Netherlands / Belgium / Germany: 2–4 working days after dispatch.
  • Other EU countries + UK: 4–8 working days after dispatch.
  • Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What does the 8510297 camshaft position sensor do?
The camshaft position sensor monitors the rotational position of the camshaft and reports it to the engine ECU. The ECU uses that signal to identify cylinder position and set injection timing, working with the crankshaft sensor to coordinate sequential injection. It mounts to the cylinder head and reads a target on the camshaft.
Which Land Rovers does this sensor fit?
It fits the diesel Freelander 1 and Range Rover L322, specifically the BMW-derived Td4 2.0L and Td6 3.0L engines. It uses a three-pin connector with a D-shaped plug. Use your VIN to confirm the diesel engine variant before ordering.
What are the signs of a failing camshaft position sensor?
Typically hard starting, stalling, hesitation, or a sudden loss of power, often with an engine warning light and a stored fault code. On these BMW-derived diesels a failed sensor can stop the ECU reading cylinder position, so the engine may crank but not start.
Can this sensor be fitted at home?
Usually yes. It's typically secured by a single bolt at the cylinder head and unplugs at the three-pin connector, so it's normally a hand-tool job. Clear any stored fault codes after fitting so the ECU relearns.
