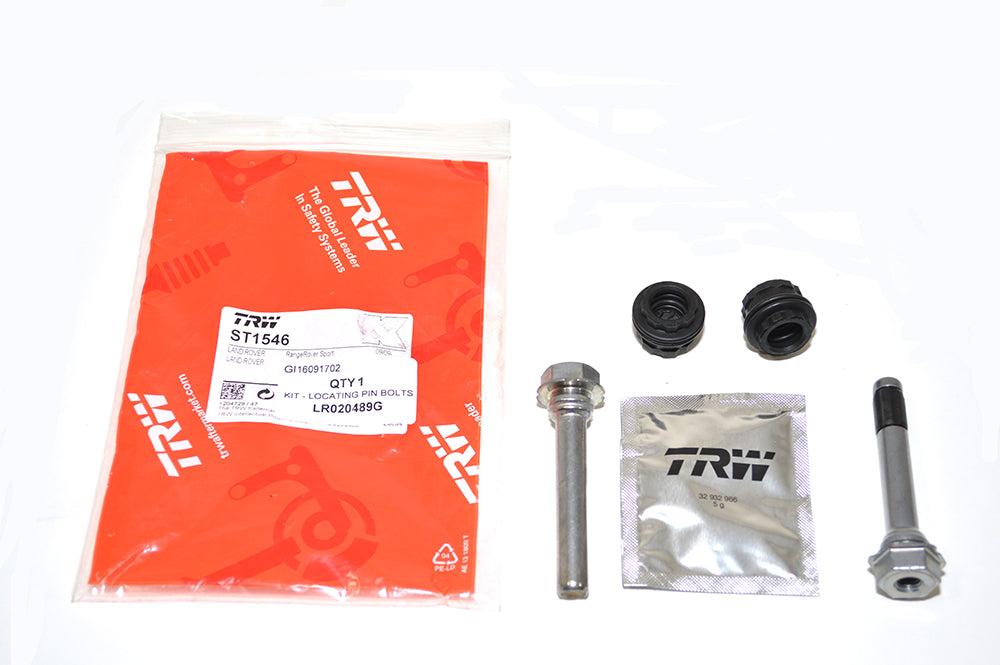

LR020489G - Kit - Locating Pin Bolts by TRW Land Rover Range Rover

LR020489G - Set - Positioneringsbouten

- €24,20
€24,20
€24,20 - €24,20
€24,20
OEM Part
OEM: Made by an Original Equipment Manufacturer. This part is made by an original equipment manufacturer or under their license, ensuring compatibility and quality.
Brand TRW
Set - Positioneerpennen
Vehicle Model Land Rover Defender New 2020+
Land Rover Discovery 4 2010-2016 (L319)
Land Rover Discovery 5 2017+ (L462)
Range Rover 2002-2012 (L322)
Range Rover 2013-2022 (L405)
Range Rover Sport 2005-2013 (L320)
Range Rover Sport 2014-2022 (L494)
Fitment Notes Brake calliper attachment kit — JLR comment: "Caliper Set, Pin And Boot". Qty 2 per vehicle.
DISCOVERY 4 2010-2016 (L319) — Front and rear brake discs/callipers, 3.0L V6 TC Diesel and 5.0L V8 Petrol AJ133; also four-corner air suspension builds. From (V)AA000001.
DISCOVERY 5 2017> (L462) — Front brake discs/callipers, incl. 18" front disc/calliper size (Solihull and Nitra plant builds).
NEW DEFENDER 2020> (L663) — Front brake discs/callipers, disc and calliper size front 18/rear 18.
RANGE ROVER 2010-2012 (L322) — Front brake discs/callipers, 3.6L V8 Diesel Lion and 5.0L V8 Petrol AJ133. From (V)AA333946.
RANGE ROVER 2013> (L405) — Front brake discs/callipers, all engines incl. 2.0L Petrol, 3.0L V6 Diesel/SC Petrol, 5.0L V8. From (V)EA000001.
RANGE ROVER SPORT 2010-2013 (L320) — Front and rear brake discs/callipers, 3.0L V6 TC Diesel, 3.6L V8 Diesel, 5.0L V8 Petrol. From (V)AA000001.
RANGE ROVER SPORT 2014> (L494) — Front brake discs/callipers, all engines, 18" and 19" disc/calliper sizes, non-SVR. From (V)GA000001.
Alternative Codes
LR020489GLR020489

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

  • Netherlands / Belgium / Germany: 2–4 working days after dispatch.
  • Other EU countries + UK: 4–8 working days after dispatch.
  • Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the LR020489G brake caliper locating pin bolt kit?
The LR020489G is a brake caliper locating pin and boot kit, described by JLR as a caliper set of pin and boot. The pins let the caliper slide over the pads. OEM TRW part fitting a wide range of Land Rover models.
What's included and how many kits are needed?
The LR020489G kit contains the caliper locating pins and their boots. Two kits are typically needed per vehicle, one per caliper on the axle being serviced. Order a kit for each caliper when replacing worn or seized pins.
Which Land Rovers does the LR020489G fit?
The LR020489G fits new Defender L663, Discovery 4 and 5, Range Rover L322 (2010-2012) and L405, and Range Rover Sport L320 (2010-2013) and L494. Fitment varies by disc and caliper size, so confirm with your VIN.
Should the caliper locating pins be reused?
Caliper locating pins are best replaced rather than reused when seized or corroded, and the boots are typically single-use once disturbed. Fitting fresh LR020489G pins and boots keeps the caliper sliding freely, which matters for even braking.

Alternative & Related Options

Same part, different brands or quality grades. Click any option to view full details.

1 option
LR020489 - Kit - Centreerpennenbouten
Aftermarket LR020489 - Kit - Centreerpennenbouten
Stock 0
€17,20 excl. VAT
View →
