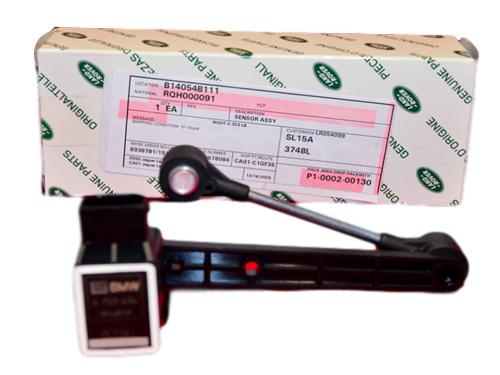

RQH000091LR - Ride Height Sensor – Rear – RH by Land RoverElectrical Part Land Rover Range Rover Range Rover

RQH000091LR - Rijhoogtesensor – Achter – Rechts

- €250,00

€250,00

€250,00 - €250,00

€250,00

Genuine: Original manufacturer part. This product is the original part designed and produced by the vehicle manufacturer.

Omschrijving:
Hoogtesensor Rechtsachter voor de luchtvering- en koplampnivelleringssystemen.

Deze rotatiepositiesensor wordt gemonteerd op de rechter achterwielophangingsarm en bewaakt de veerweg door de relatieve armpositie te volgen. Het signaal wordt gevoed aan de Electronic Air Suspension (EAS) ECU om de juiste rijhoogte te handhaven, en tegelijkertijd aan de automatische koplampnivellering om de xenon-lichtbundelhoek aan te passen als reactie op veranderingen in de voertuigbelasting. Beide functies zijn afhankelijk van een nauwkeurig, gekalibreerd signaal van deze sensor.

Toegepast op voertuigen uitgerust met xenon-koplampen, waarbij de hoogtesensoren achter een dubbele rol vervullen in de vering- en verlichtingsregeling.

Alle productcodes / identificatiecodes:
RQH000091 RQH000091LR RQH000091LR RQH000091

Modellen:
Range Rover 2002-2012 (L322)
Opmerkingen over de pasvorm:
RANGE ROVER L322 2002-2012 — Hoogtesensor, achter RH, met Xenon-koplampen

Vehicle Model Range Rover 2002-2012 (L322)

Fitment Notes RANGE ROVER L322 2002-2012 — Ride height sensor, rear RH, with Xenon headlamps

Alternative Codes

RQH000091RQH000091LR

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

Netherlands / Belgium / Germany: 2–4 working days after dispatch.
Other EU countries + UK: 4–8 working days after dispatch.
Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What does the rear right-hand ride height sensor do on a Range Rover L322?

The rear RH ride height sensor is a rotary position sensor on the right-hand rear suspension arm of the Range Rover L322 (2002-2012). It reports suspension travel to the air suspension (EAS) ECU to hold ride height, and to the automatic headlamp levelling system to set Xenon beam angle.

Where is this sensor fitted and which corner does it cover?

This sensor mounts to the right-hand rear suspension arm of the Range Rover L322. It's the rear RH unit of the ride height sensor set, so the front sensors and the left rear are separate parts. Confirm you're ordering for the correct corner.

What are the signs this ride height sensor is failing?

A failing rear RH ride height sensor on the L322 typically triggers suspension fault warnings, incorrect or uneven ride height, and erratic Xenon headlamp levelling. Because the EAS ECU depends on an accurate signal, a faulty sensor can drop the air suspension into a fault mode.

Does this fit any Range Rover L322?

This fits the Range Rover L322 (2002-2012) equipped with Xenon headlamps, where the rear ride height sensors serve both suspension and headlamp levelling. On non-Xenon cars the sensor application can differ, so check your vehicle's specification before ordering.
