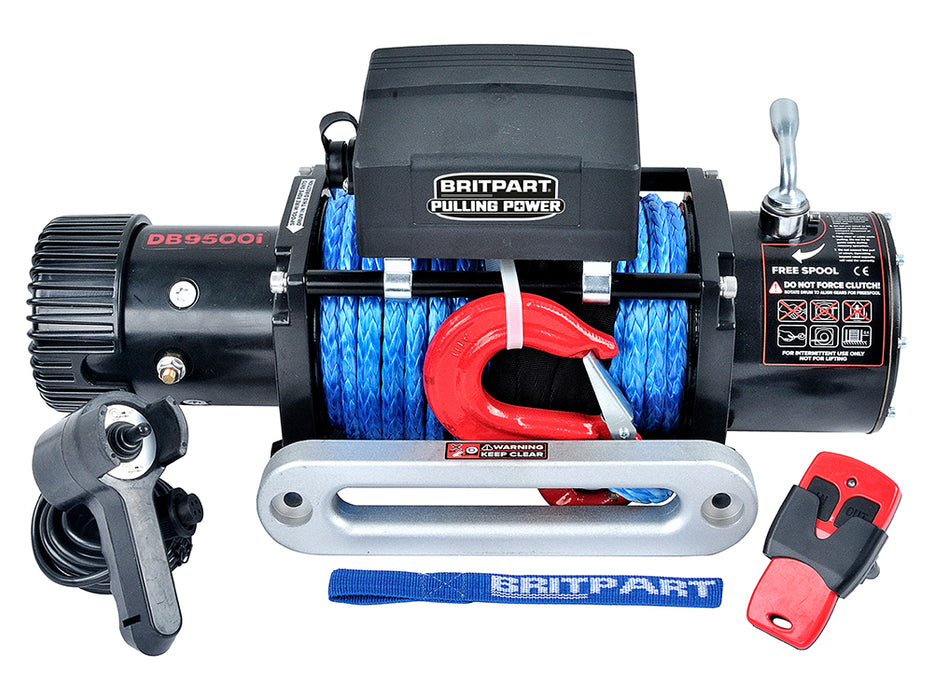

DB9500IR - Electric Winch – 12V – Rope Accessory Land Rover Range Rover

DB9500IR – Elektrische lier – 12V – Touw

- €810,00

€810,00

€810,00 - €810,00

€810,00

FYI: This product’s size or weight exceeds standard limits, so extra shipping fees could apply.

Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

Beschrijving:
Elektrische lier - 12V - Touw

Alle productcodes / identificaties:
DB9500IR DB9500IR DB9500IR

Alternative Codes

DB9500IR

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

Netherlands / Belgium / Germany: 2–4 working days after dispatch.
Other EU countries + UK: 4–8 working days after dispatch.
Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the DB9500IR electric winch?

The DB9500IR is a 12V recovery winch with a single-line rated pull of 9,500 lbs (4,309 kg), supplied with synthetic Dyneema rope. A 3.6 kW series-wound DC motor drives it through a planetary gearbox, with an automatic load-holding brake and a sealed weatherproof contactor for switching.

What's the difference between this winch and the steel cable version?

The DB9500IR is the synthetic-rope version, running lightweight Dyneema rope on a hardened drum. The alternative is supplied with galvanised steel cable instead. Synthetic rope is lighter and easier to handle, while steel cable typically resists abrasion better, so the choice depends on how you'll use the winch.

How does the DB9500IR hold and control the load?

The DB9500IR uses an automatic load-holding brake that holds the load on the drum, plus free-spooling with powered-in and powered-out operation. Switching runs through a sealed weatherproof contactor unit, and the rope feeds onto a hardened drum.

What's needed to install this 12V winch?

The DB9500IR runs on a 12V supply and typically mounts to a winch-rated bumper or mounting plate able to take the 9,500 lb pull. Wiring it to the battery through the supplied contactor is usually required, and some installations also need an extended wiring kit with a battery cut-off switch.
