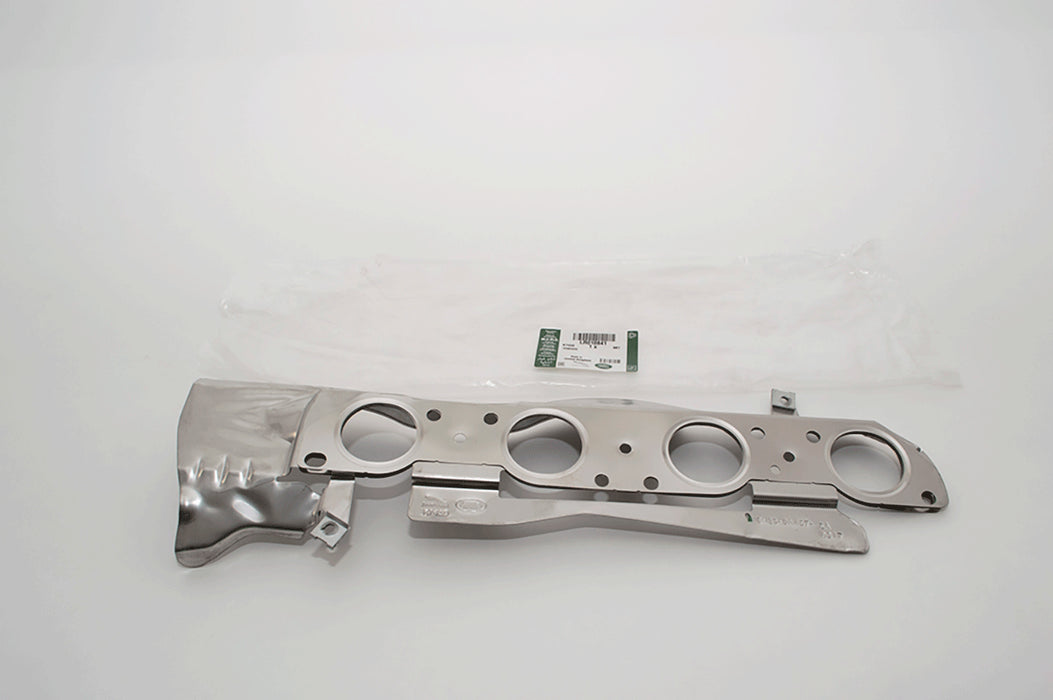

LR010841LR - Gasket by LAND ROVER Land Rover Range Rover

LR010841LR - Pakking

- €78,80
€78,80
€78,80 - €78,80
€78,80
Genuine Part
Genuine: Original manufacturer part. This product is the original part designed and produced by the vehicle manufacturer.
Pakking
Vehicle Model Land Rover Discovery 4 2010-2016 (L319)
Range Rover 2002-2012 (L322)
Range Rover Sport 2005-2013 (L320)
Fitment Notes Genuine Land Rover exhaust manifold gasket (LR010841) — LH side (RH side is LR010839). 5.0L V8 AJ133 Petrol only (NA and Supercharged).
DISCOVERY 4 2010-2016 — 5.0L OHC SGDI NA V8 Petrol AJ133 (V)AA000001
RANGE ROVER L322 2010-2012 — 5.0L OHC SGDI NA and SC V8 Petrol AJ133 (V)AA000001
RANGE ROVER SPORT L320 2010-2013 — 5.0L OHC SGDI NA and SC V8 Petrol AJ133 (V)AA000001
Alternative Codes
LR010841LR

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

  • Netherlands / Belgium / Germany: 2–4 working days after dispatch.
  • Other EU countries + UK: 4–8 working days after dispatch.
  • Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the LH exhaust manifold gasket for?
This is the left-hand exhaust manifold gasket, sealing the exhaust manifold against the cylinder head face on the left-hand bank of the 5.0L V8 AJ133 petrol engine. It contains exhaust gas at the manifold-to-head joint through the heat cycling the manifold sees in service.
What's the difference between the LH and RH gasket?
This gasket is the left-hand side. The right-hand bank takes the handed equivalent, LR010839. The two aren't interchangeable, so if you're doing both manifolds order one of each, and check which bank you're working on before fitting.
Should this manifold gasket be reused?
No, replace this exhaust manifold gasket whenever the manifold is removed. Exhaust gaskets are typically single-use because heat sets them, so refitting an old one usually leads to a blowing leak at the head joint.
Which models does this LH gasket fit?
This left-hand exhaust manifold gasket fits Discovery 4, Range Rover L322 and Range Rover Sport L320 with the 5.0L V8 AJ133 petrol, naturally aspirated or supercharged, from (V)AA000001. It's petrol only, so confirm your engine.
