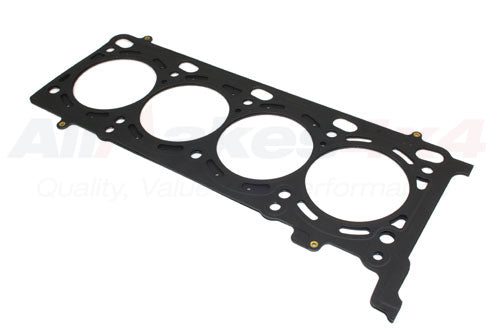

LVB000370 - Cylinder Head Gasket – 2.07mm – Cyl 5-8 by AllmakesEngine Part Land Rover Range Rover Range Rover

LVB000370 - Cilinderkoppakking – 2,07 mm – Cil 5-8

€39,50 - €39,50
€39,50
€39,50 - €39,50
€39,50
Aftermarket Part
Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.
Cilinderkoppakking voor de 4.4L V8 benzine M62 motor, die de verbinding tussen de cilinderkop en het motorblok afdicht over cilinders 5 tot 8.

Het dicht de verbrandingskamers af om compressie te behouden en isoleert de koelvloeistof- en oliekanaalgalerijen die tussen de kop en het blok aan die zijde lopen. Dit is de 2.07mm dikte; de M62 gebruikt gegradeerde koppakkingen die zijn geselecteerd op basis van gemeten zuigeruitsteeksel, dus de juiste dikte moet overeenkomen met de zijde die wordt gereviseerd.
Vehicle Model Range Rover 2002-2012 (L322)
Fitment Notes RANGE ROVER L322 2002-2009 — 4.4 V8 Benzine M62, Cilinderkoppakking 2,07 mm Cilinders 5-8
Alternative Codes
LVB000370

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

Laat het mij weten als dit weer op voorraad is

Liever wachten tot het op voorraad is? Laat uw e-mailadres achter en we mailen u zodra het binnen is. Geen nieuwsbrief.

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

  • Netherlands / Belgium / Germany: 2–4 working days after dispatch.
  • Other EU countries + UK: 4–8 working days after dispatch.
  • Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the LVB000370 head gasket used for?
The LVB000370 is the cylinder head gasket for cylinders 5 to 8 of the Range Rover L322 4.4L V8 petrol (BMW M62 engine). It seals that bank's head to the block, maintaining compression and isolating the coolant and oil galleries across the deck. This is the 2.07mm thickness grade.
Which cylinders does this cover, and does the V8 need another gasket?
The LVB000370 covers cylinders 5 to 8 only. The 4.4L V8 M62 uses a separate head gasket per bank, so cylinders 1 to 4 take their own gasket. Each bank's thickness is selected independently to suit measured piston protrusion, so the two banks don't always run the same grade.
How do I choose between the 2.07mm and 1.74mm gasket for cylinders 5-8?
Head gasket thickness for the M62 5-8 bank is selected to suit measured piston protrusion. The LVB000370 is the 2.07mm grade; the 1.74mm grade (LVB000360) is the alternative for the same bank. Measure protrusion or match your original gasket's grade before ordering, as the wrong thickness affects compression and deck clearance.
