About This Collection About Land Rover ABS Sensors
ABS sensors are mounted at each wheel hub and read the rotation speed of a toothed reluctor ring attached to the hub or driveshaft. The signal is sent continuously to the ABS control module, which compares all four wheels and modulates brake pressure to prevent lock-up when one wheel decelerates faster than the others. A failed or implausible wheel speed signal will usually illuminate the ABS warning lamp and may disable ABS, traction control, DSC, and HDC functions while the fault is active. The base hydraulic braking system remains available, but anti-lock and stability functions are reduced or unavailable until the fault is cleared.
This collection is part of the Land Rover Brake System category and covers:
- Individual ABS sensors for front and rear axle positions
- Wheel speed sensors (functionally identical to ABS sensors; the two names refer to the same component)

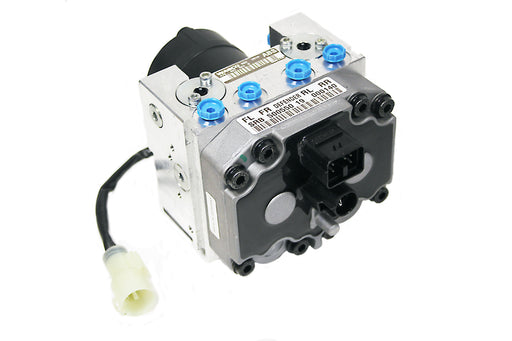

- ABS modulators (the hydraulic control unit: the pump and valve assembly that modulates brake pressure based on wheel speed sensor data)
- ABS modulator kits and bracket hardware
- ABS rings (reluctor rings; the toothed tone rings from which sensors read wheel speed)
- Connector and wiring repair kits
This collection does not cover brake discs, brake pads, handbrake cables, or master cylinder components. Those are listed in their respective brake system subcategories.
Discovery 2 models generate the highest volume of ABS sensor replacements in the Land Rover range. The Td5-powered Discovery 2 (1998 to 2004) uses a passive inductive sensor that reads from a reluctor ring housed inside a sealed hub assembly. The sensor itself is replaceable; however, bearing wear or damage to the internal ring requires replacement of the sealed wheel hub assembly, not the sensor alone. Later platforms from Discovery 3 onwards use active Hall-effect sensors that require a powered supply and produce a digital signal rather than an analogue AC voltage.
Buying Guide Buying Guide: OEM Grade vs Aftermarket ABS Sensors
ABS sensors are safety-critical. A sensor that produces an unstable or out-of-tolerance signal can trigger false ABS activation at low speed, persistent fault codes, or traction control faults on models where these systems share the same wheel speed data. For this reason, quality selection matters in a way it does not for non-safety consumables.
OEM-grade sensors from suppliers stocked in this collection are built to the original specification for signal output, connector compatibility, and mounting dimensions. Non-approved generic alternatives sometimes produce marginal signal quality, particularly at very low wheel speeds, which causes intermittent faults even after a successful fit.
On Defender Classic models from the Td5 era (1998 to 2016) and on Freelander 1 (1997 to 2006), passive sensor design means a damaged or corroded reluctor ring will produce exactly the same fault code as a failed sensor. Before ordering a replacement sensor for these models, inspect the reluctor ring for missing teeth or heavy corrosion. A sensor replacement will not clear the fault if the ring is the root cause.
On Freelander 2 (2006 to 2014) and Discovery 3 onwards, active sensors read from a magnetic encoder ring integrated into the wheel bearing seal rather than a toothed metal ring. The failure mode is different: rust scale building up beneath the magnetic strip or metallic brake dust adhering to it are the common causes of signal errors on these platforms, rather than broken teeth. Connector seating and cable routing remain the most straightforward inspection points after age and road wash exposure.
Important On Discovery 3, Discovery 4, and Range Rover Sport L320 models, an ABS sensor fault can trigger ABS, traction control, hill descent control, and an amber Electronic Parking Brake warning. These systems share wheel speed data. Automatic EPB functions may be inhibited until the fault is diagnosed and cleared; manual EPB operation typically remains available. Replace a failed sensor promptly on these platforms.
Model Fitment ABS Sensor Fitment by Model
| Model | Years | Sensor Positions | Notes |
| Defender Classic | 1998 to 2016 | Front and rear | Td5 and Puma (2.4 / 2.2 TDCi); ABS availability varies by specification and market on Td5 and Puma models; earlier 200Tdi and 300Tdi variants generally pre-date Defender ABS fitment; confirm by VIN or by checking existing ABS hardware |
| Discovery 2 | 1998 to 2004 | Front and rear | Highest demand in collection; Td5 and 4.0 V8; passive inductive sensor; reluctor ring is internal to the sealed hub assembly; bearing wear or hub damage requires wheel hub assembly replacement, not sensor alone |
| Discovery 3 | 2004 to 2009 | Front and rear | 2.7 TDV6 and V8; active Hall-effect sensors; sensor faults may trigger traction control and HDC warnings alongside ABS light |
| Discovery 4 | 2009 to 2016 | Front and rear | 3.0 TDV6 and petrol variants; ABS sensor failure is a common cause of C-series fault codes and limp mode on this platform |
| Discovery 5 | 2017 onwards | Front and rear | L462; D7u platform |
| Discovery Sport | 2014 onwards | Front and rear | L550; pre-facelift models use JLR D8/LR-MS platform shared with Evoque L538; facelifted model moved to PTA platform shared with Evoque L551 |
| Freelander 1 | 1997 to 2006 | Front and rear | L314; passive inductive sensor; front sensors most frequently replaced; inspect reluctor ring |
| Freelander 2 | 2006 to 2014 | Front and rear | L359; 2.2 TD4 and 3.2 i6; active sensor design |
| Range Rover P38 | 1994 to 2001 | Front and rear | ABS fitted as standard; passive inductive sensor design |
| Range Rover L322 | 2002 to 2012 | Front and rear | BMW M62 and Jaguar AJ-V8 / TDV8 variants |
| Range Rover L405 | 2013 to 2022 | Front and rear | D7u aluminium platform |
| Range Rover Sport L320 | 2005 to 2013 | Front and rear | IBF platform; shared architecture with Discovery 3 |
| Range Rover Sport L494 | 2014 to 2022 | Front and rear | D7u platform |
| Range Rover Evoque | 2012 onwards | Front and rear | L538 (2012 to 2018) and L551 (2019 onwards) |
| Range Rover Velar | 2017 onwards | Front and rear | L560; D7a platform |
Compatibility Guide Confirming the Right ABS Sensor for Your Vehicle
ABS sensor fitment is position-specific, connector-specific, and in some cases generation-specific. Confirm these before ordering:
Axle position (front or rear): Front and rear sensors differ on most models. On Discovery 2, Discovery 3, and Defender Classic, sensors are not interchangeable between axles in most applications. State front left, front right, rear left, or rear right when ordering.
Connector type: Sensor connector design changed across generations. A sensor for a Td5-era Defender uses a different connector to a Puma-era Defender. Check the connector housing on the existing sensor before ordering a replacement.
Reluctor ring tooth count: On older passive-sensor models including Discovery 2, Freelander 1, and Range Rover P38, the ABS sensor reads from a reluctor ring with a specific tooth count. If replacing both the sensor and ring together, confirm the tooth count matches between the two components.
VIN and build date lookup: For Discovery 3, Discovery 4, Range Rover Sport L320, Range Rover L405, and Discovery Sport, use the full VIN for parts lookup. Engine variant and build date can affect sensor specification on some platforms. The 10th digit of the VIN encodes the model year on post-1996 Land Rover vehicles. The VIN is typically visible through the windscreen on the driver-side dashboard, at the base of the driver-side B-pillar, or in the vehicle documents.
Fitting Notes Common Fitting Notes for ABS Sensors
These are part-selection and installation notes, not repair procedures:
- Clean the mounting bore before fitting. Mud and corrosion in the sensor bore can prevent the sensor from seating at the correct depth, which affects signal quality and can generate a new fault immediately after fitting.
- Inspect the reluctor ring before condemning the sensor. A cracked, corroded, or missing-tooth reluctor ring produces the same fault code as a failed sensor. On Discovery 2 and Freelander 1, inspect the ring at the hub before ordering a sensor replacement; replacing the sensor alone will not clear the fault if the ring is damaged.
- Seat the connector fully and check the locking clip. ABS sensor connectors are exposed to road wash and vibration. An incompletely latched connector is a common cause of intermittent ABS faults on Defender and Freelander models, and the fault may not present consistently during a test drive.
- Route the cable clear of rotating and hot components. On front axle positions, the sensor cable passes close to the steering linkage and driveshaft. Check cable clearance at full steering lock and over the full suspension travel range after fitting.
Workshop Tip On Discovery 4 and Range Rover Sport L320, a Land Rover-capable diagnostic tool will identify the affected corner through ABS and chassis fault codes and live wheel speed data. Read the specific sensor position before ordering rather than replacing all four. Confirming correct wheel speed output at low speed on a live data screen is the most reliable post-fit verification.
Technical Guides Related Technical Guides
Land Rover Fault Code Diagnosis
How EOBD works by model, which diagnostic tool you need for Defender, Discovery, or Range Rover, and how to distinguish a circuit fault from a failed component.
Land Rover fault code diagnostic guide Discovery 4 Limp Mode: Electrical Causes
ABS sensor faults are one of the electrical triggers for Discovery 4 limp mode. This guide covers the diagnostic path for multi-system warnings on the 3.0 TDV6 platform.
Discovery 4 limp mode electrical diagnosis Electronic Parking Brake Failure Guide
On Discovery 3, Discovery 4, and Range Rover Sport L320, EPB faults and ABS sensor faults are often linked. This guide explains the EPB diagnostic and repair path.
Land Rover EPB failure diagnosis Land Rover ABS Sensor Fault Guide: Sensor, Hub, Reluctor Ring or Wiring?
Step-by-step ABS sensor replacement guide for Land Rover models, covering passive and active sensor types and reluctor ring inspection.
Land Rover ABS sensor replacement guide Related Categories Related Brake System Categories
Master & Wheel Cylinders
Brake master cylinders, wheel cylinders, and repair kits for Series, Defender, and Discovery models including Girling-spec components.
Land Rover master and wheel cylinders Electrical Parts
ABS modulators cross into the electrical system category. Sensors, modules, and wiring components for all Land Rover and Range Rover models.
Land Rover electrical parts Frequently Asked Questions ABS Sensor FAQ
How do I know if my Land Rover ABS sensor has failed?
The most common symptom is the ABS warning light illuminating on the dashboard. On Discovery 3, Discovery 4, and Range Rover Sport models, a failed sensor will also typically trigger traction control and hill descent control warnings, as all three systems share the same wheel speed data. In some cases the ABS system will activate at very low speeds when it should not. A fault code reader will return a C-series code identifying which sensor position has failed, which avoids unnecessary replacement of all four sensors.
What is the difference between an ABS sensor and a wheel speed sensor on a Land Rover?
They are the same component. "Wheel speed sensor" and "ABS sensor" refer to the same part: the sensor that reads wheel rotation speed from the reluctor ring and sends that data to the ABS control module. The term used depends on the context. Land Rover parts catalogues and workshop data typically list them as ABS sensors; some diagnostic tools and fault code descriptions use "wheel speed sensor." Both names appear in this collection, and both refer to the same fitment.
How do I test a Land Rover ABS sensor?
Testing method depends on sensor type. Passive inductive sensors, found on Discovery 2, Freelander 1, and Range Rover P38, can be tested with a multimeter. Disconnect the sensor connector and measure resistance across the sensor terminals; out-of-specification resistance indicates a failed sensor. Rotate the hub slowly by hand while connected to an AC voltmeter to verify the sensor generates a signal. Active Hall-effect sensors on Discovery 3, Discovery 4, and all later models are powered sensors that require a diagnostic tool capable of reading ABS and chassis live data to confirm correct signal output. A basic EOBD or OBD-II emissions reader may not access ABS wheel speed values or manufacturer-specific chassis codes. A resistance test alone will not verify an active sensor.
Can I drive my Land Rover with a failed ABS sensor?
The vehicle will typically remain driveable. ABS, traction control, DSC, and HDC functions may be inhibited while the fault is active, but the base hydraulic braking system continues to operate. On Discovery 3, Discovery 4, and Range Rover Sport L320 models, a failed ABS sensor can also trigger an amber Electronic Parking Brake warning and inhibit automatic EPB functions; manual EPB operation typically remains available. A failed sensor should be replaced promptly rather than deferred, particularly on vehicles used in wet conditions or under significant load.
Where is the ABS sensor located on a Land Rover?
ABS sensors are mounted at each wheel hub. Front sensors are typically inserted through a bore in the hub carrier or steering upright, held by a single bolt, with the sensor face reading off the reluctor ring on the hub or driveshaft flange. Rear sensors on Discovery 2 and Defender Classic are mounted at the rear axle hub housing. On Discovery 3, Discovery 4, and later models, sensors are integrated into the wheel hub assembly area, accessible from behind the hub with the wheel removed. The sensor cable on each position runs to a connector near the suspension upright and should be inspected for cracking or abrasion at the same time as sensor replacement.
