Land Rover Engine Mechanical Parts: Timing Belts, Chains, Pistons, Bearings and Rebuild Hardware

The internal components of a Land Rover engine operate under sustained heat, pressure, and mechanical stress. On high-mileage examples, particularly those that have covered 150,000 kilometres or more, the cumulative effect of that stress becomes visible in the form of worn bearings, deterioration of timing belts and associated tensioners, internal timing chain wear, and degraded piston rings.

Understanding which components are most likely to require attention, and why, is the most reliable starting point for any engine repair decision.

Belts, chains, tensioners and guides

The timing system on Land Rover diesel engines is one of the areas most likely to require intervention on high-kilometre vehicles. The 2.7 litre TDV6 engine, used across the Discovery 3 and Range Rover Sport L320, uses a timing belt for the primary cam drive, with additional internal timing chain components.

On high-kilometre engines, belt service history, tensioner condition, and related timing components require careful attention. Where timing work is being carried out, complete engine-specific kits are strongly recommended. On engines where internal timing chain wear is present, symptoms can include a metallic rattle on cold start that may diminish once oil pressure builds.

Where timing belt service has been neglected, risk is more closely associated with belt condition, tensioner failure, or loss of correct timing rather than audible warning.

The 3.0 litre TDV6, engine code 306DT, used in the Discovery 4 and later Range Rover Sport L320 from 2009 onwards, uses a timing belt-based primary drive system together with additional internal timing components. While the belt is the primary service item, internal component wear can also become a factor on high-kilometre engines. Full timing work on this engine therefore needs to be matched carefully to the engine code and the exact service requirement.

The Td5 engine, fitted to the Defender and Discovery 2, uses a timing chain rather than a belt and is generally reliable in this respect. However, chain wear and tensioner condition should still be assessed on high-mileage engines, particularly where oil service history is unclear.

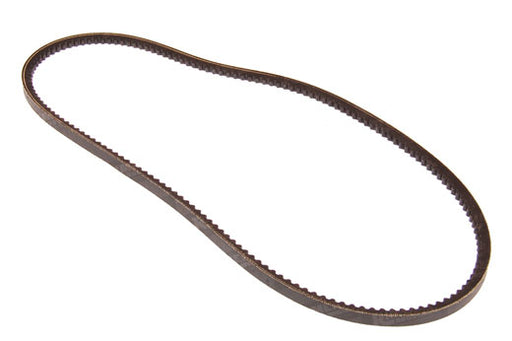

The later 2.4 TDCi and 2.2 TDCi Puma engines fitted to the Defender are also chain-driven for the primary timing system. Timing belt kits visible in some general automotive listings refer to auxiliary drive belts, not the engine timing system, and should not be confused with timing chain components.

The Freelander 2 2.2 litre TD4 engine, engine code 224DT, utilises a primary timing belt to drive the camshafts, with a short internal chain linking the twin camshafts. The belt is a scheduled service item and is the component most commonly required for timing system work on this engine. The internal chain and tensioner can develop wear on very high-kilometre examples, leading to top-end noise, though this is a secondary concern compared to belt condition and service interval compliance. Owners sourcing timing parts for the Freelander 2 2.2 TD4 should confirm whether they require the belt kit, the internal chain components, or both.

Cylinder bore wear and oil control

Piston ring wear is the primary cause of increasing oil consumption and exhaust smoke on high-kilometre Land Rover engines. Rings lose their ability to seal the combustion chamber and control oil migration from the sump, resulting in blue-grey smoke under acceleration or on the overrun.

Compression testing across all cylinders, combined with a leakdown test, will confirm whether ring wear is the likely cause before committing to an internal rebuild.

Piston ring sets are available for most Land Rover petrol and diesel engines. For diesel applications including the Td5 and the various TDV6 and TD4 units, standard and oversize ring sets are available depending on whether the cylinder bore has been re-bored or remains within original specification.

Pistons themselves are typically replaced as part of a full rebuild rather than independently, though ring replacement on a bore that is within tolerance can be a cost-effective partial restoration.

On turbocharged diesel engines, which includes effectively the entire modern Land Rover diesel range, piston and ring condition is closely linked to oil change discipline. Carbon build-up on piston crowns and ring land deposits are significantly more severe on engines that have regularly exceeded oil service intervals.

Modern Land Rover diesel engines rely heavily on Variable Geometry Turbochargers, VGT, to deliver low-end torque. If you are experiencing turbo lag or underboost codes, understanding how variable geometry turbos function can help you diagnose whether the issue is a sticky actuator or a complete turbo failure before ordering replacement parts.

Lubrication-related wear and failure

Bearing failure is one of the clearest indicators of either oil starvation or long-term lubrication neglect. A deep metallic knock that increases with engine speed often indicates bearing wear, though distinguishing between main and big-end bearings typically requires further inspection and measurement rather than relying on sound alone.

Both can produce overlapping symptom patterns, and accurate diagnosis generally involves oil pressure testing, cylinder isolation, and physical measurement of journal clearances.

Bearing sets for Land Rover engines are available in standard and undersize specifications. If the crankshaft journal has been reground to restore a worn or damaged surface, undersize bearings matching the grind specification must be fitted. Standard bearings are appropriate for journals that remain within manufacturer tolerances.

Mixing bearing sizes within a single engine is not acceptable. A full set replacement is always the correct approach.

The Td5 engine has a specific oil pressure sensitivity that makes bearing condition directly dependent on oil feed quality. Blocked oil passages, degraded oil pump performance, and extended service intervals all contribute to accelerated bearing wear in this engine. Any bearing replacement on a Td5 should include inspection of the oil pump and oil pick-up strainer as a matter of course.

Required for internal engine work

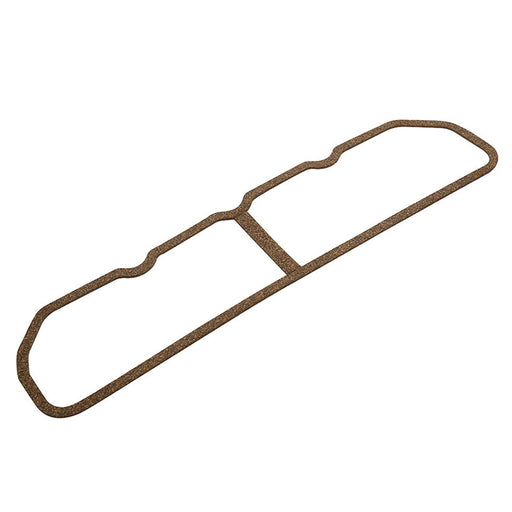

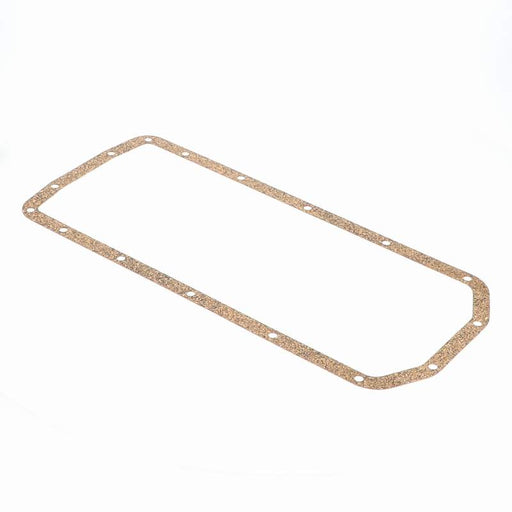

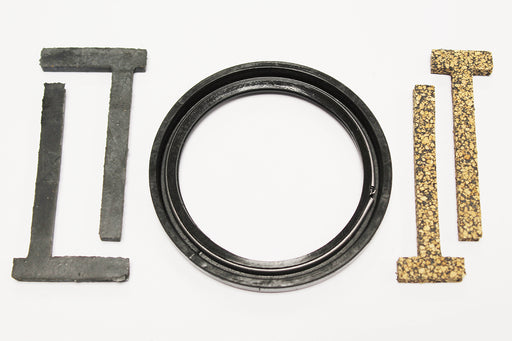

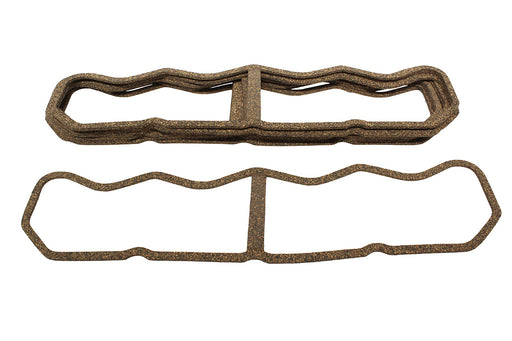

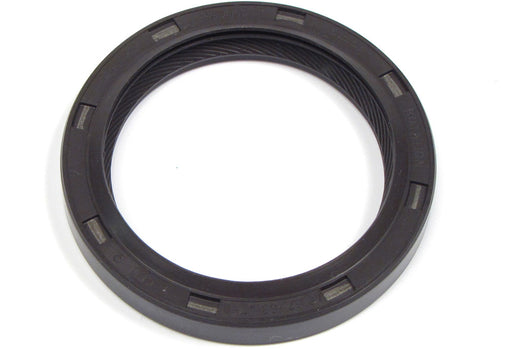

Any internal engine work involving disassembly of the cylinder head or bottom end requires new gaskets and seals. Head gaskets, sump gaskets, and crankshaft oil seals are all commonly required in the course of engine mechanical repair.

Multi-layer steel head gaskets are standard fitment on modern Land Rover diesel engines and should always be replaced with a new gasket rather than reused.

Oil contamination in the intake system on the 2.7 TDV6 is more commonly linked to turbocharger oil seal wear or crankcase breather system issues rather than a conventional gasket failure. This should be assessed during any top-end inspection on these engines.

Rebuild sequencing matters

When carrying out engine mechanical work that involves the timing system, it is worth addressing bearing and seal condition at the same time where access permits. The additional parts cost of renewing bearings and rear crankshaft seals is modest relative to the labour involved in disassembly and reassembly.

Returning a vehicle to service with renewed timing components but worn bearings that will require the engine to come apart again within 30,000 kilometres is a poor outcome for both the owner and the workshop.

The same logic applies to piston and ring work. If a cylinder bore inspection shows the bore is within specification but ring wear is evident, ring replacement is worthwhile. If bore wear is present, the decision between a re-bore with oversize pistons and rings, or the fitting of a reconditioned or replacement short engine, depends on the overall condition of the block and the extent of the wear found.

Supported applications

If your engine code or variant is not immediately visible in the product listings, use the fitment search or contact Budget Parts directly to confirm compatibility before ordering.
