Land Rover engine rebuild parts: timing systems, pistons, bearings and gaskets

The internal components of a Land Rover engine operate under sustained heat, pressure, and mechanical stress. On high-mileage examples, particularly those that have covered 150,000 kilometres or more, the cumulative effect of that stress becomes visible in the form of worn bearings, deterioration of timing belts and associated tensioners, internal timing chain wear, and degraded piston rings.

Understanding which components are most likely to require attention, and why, is the most reliable starting point for any engine repair decision.

Before you order

Engine internals are unforgiving of mismatched specification. Five checks before placing an order will avoid the most common returns and re-orders we see on this category.

1. Confirm the engine code, not just the displacement. The 2.7 TDV6 (276DT) and 3.0 TDV6 (306DT) share the TDV6 family name but use different timing components, different piston dimensions, and different bearing shells. Engine code is on the cam cover or the build plate.
2. Confirm the cylinder bore status. Piston rings ship in standard and oversize specifications. If the block has been re-bored, the oversize must match the grind. Re-using the wrong size will not seal.
3. Confirm crankshaft journal status. Crankshaft and conrod bearings ship in standard and undersize specifications. If the journal has been reground, the undersize must match the grind. Mixed sizes across one engine are not acceptable.
4. On the Freelander 2 2.2 TD4, confirm which subsystem. The DW12 uses a primary timing belt at the front of the engine and a short internal chain linking the camshafts. "TD4 timing belt kits" sold under generic part numbers are the cam-drive belt kit, not the internal chain kit. Confirm whether the work requires the belt, the chain components, or both.
5. For head gasket work, plan the multi-layer steel gasket as single-use. MLS gaskets on modern Land Rover diesels are not designed to be reused after the head has been disturbed. Order new every time.

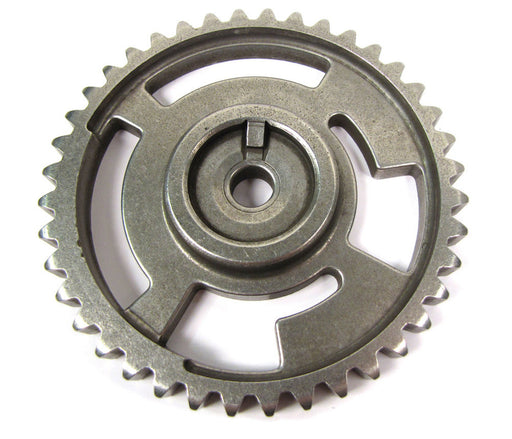

Timing systems: belts, chains, tensioners and guides

The timing system on Land Rover diesel engines is one of the areas most likely to require intervention on high-kilometre vehicles. The 2.7 TDV6 (276DT), used across the Discovery 3 and Range Rover Sport L320, uses a timing belt. Match timing parts to the engine code and product application before ordering.

On high-kilometre engines, belt service history, tensioner condition, and related timing components require careful attention. Where timing work is being carried out, complete engine-specific kits are strongly recommended.

Where timing belt service has been neglected, risk is more closely associated with belt condition, tensioner failure, or loss of correct timing rather than audible warning.

The 3.0 TDV6 (306DT), used in the Discovery 4 and later Range Rover Sport L320, is a distinct engine from the 2.7 TDV6, so check that timing parts are listed for 306DT application before ordering. Which timing components a job on this engine needs depends on the work being done, so check the product listing for exactly what a kit contains.

The Td5 engine, fitted to the Defender and Discovery 2, uses a timing chain rather than a belt and is generally reliable in this respect. Chain wear and tensioner condition should still be assessed on high-mileage engines, particularly where oil service history is unclear.

The 2.4 TDCi and 2.2 TDCi Puma engines fitted to the Classic Defender are chain-driven for the primary timing system. Timing belt kits visible in some general automotive listings refer to auxiliary drive belts, not the engine timing system, and should not be confused with timing chain components.

The Freelander 2 2.2 TD4 (DW12) uses a primary timing belt to drive the camshafts together with a short internal chain linking the twin camshafts. The belt is a scheduled service item and is the component most commonly required for timing work on this engine. The internal chain and tensioner can develop wear on very high-kilometre examples, leading to top-end noise, though this is secondary to belt condition and service-interval compliance.

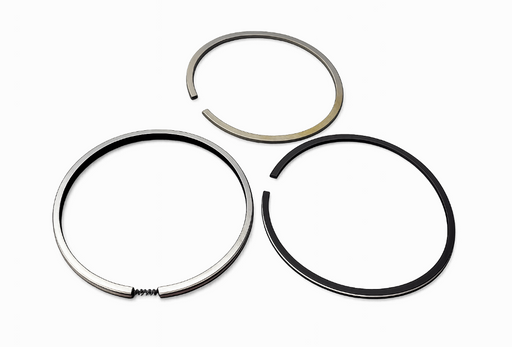

Pistons and rings: cylinder bore wear and oil control

Piston ring wear is the primary cause of increasing oil consumption and exhaust smoke on high-kilometre Land Rover engines. Rings lose their ability to seal the combustion chamber and control oil migration from the sump, resulting in blue-grey smoke under acceleration or on the overrun.

Compression testing across all cylinders, combined with a leakdown test, will confirm whether ring wear is the likely cause before committing to an internal rebuild.

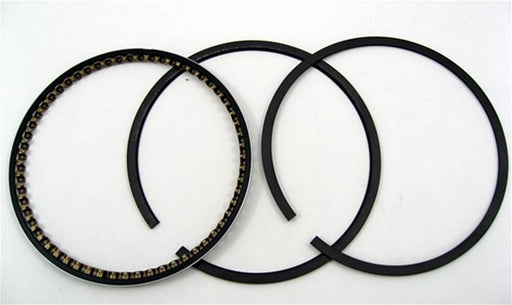

Piston ring sets are available for most Land Rover petrol and diesel engines. For diesel applications including the Td5 and the TDV6 and TD4 family, standard and oversize ring sets are available depending on whether the cylinder bore has been re-bored or remains within original specification.

Pistons themselves are typically replaced as part of a full rebuild rather than independently, though ring replacement on a bore that is within tolerance can be a cost-effective partial restoration.

On turbocharged diesel engines, which includes effectively the entire modern Land Rover diesel range, piston and ring condition is closely linked to oil change discipline. Carbon build-up on piston crowns and ring land deposits are significantly more severe on engines that have regularly exceeded oil service intervals. Pairing internal work with a fresh service from the Service Kits collection is the most reliable way to protect new internals.

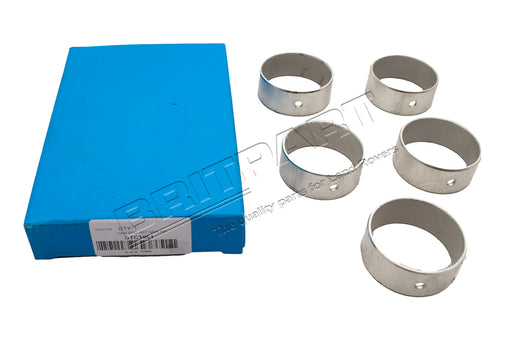

Crankshaft and conrod bearings: lubrication-related wear

Bearing failure is one of the clearest indicators of either oil starvation or long-term lubrication neglect. A deep metallic knock that increases with engine speed often indicates bearing wear, though distinguishing between main and big-end bearings typically requires further inspection and measurement rather than relying on sound alone.

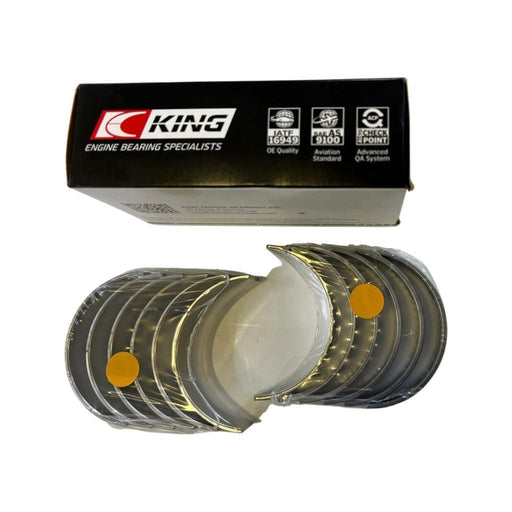

Bearing sets for Land Rover engines are available in standard and undersize specifications. If the crankshaft journal has been reground to restore a worn or damaged surface, undersize bearings matching the grind specification must be fitted. Standard bearings are appropriate for journals that remain within manufacturer tolerances.

Mixing bearing sizes within a single engine is not acceptable. A full set replacement is always the correct approach.

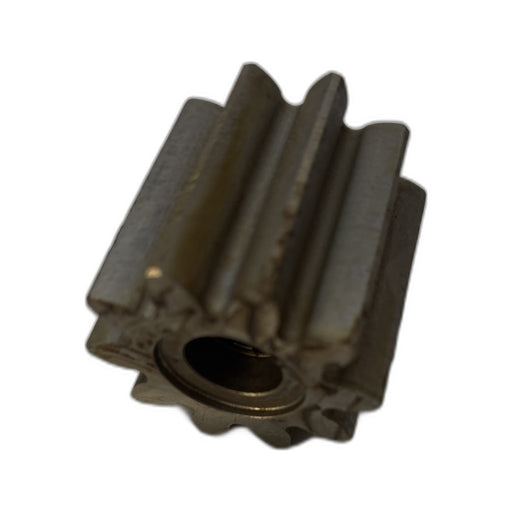

The Td5 engine has a specific oil pressure sensitivity that makes bearing condition directly dependent on oil feed quality. Blocked oil passages, degraded oil pump performance, and extended service intervals all contribute to accelerated bearing wear in this engine. Any bearing replacement on a Td5 should include inspection of the oil pump and oil pick-up strainer as a matter of course.

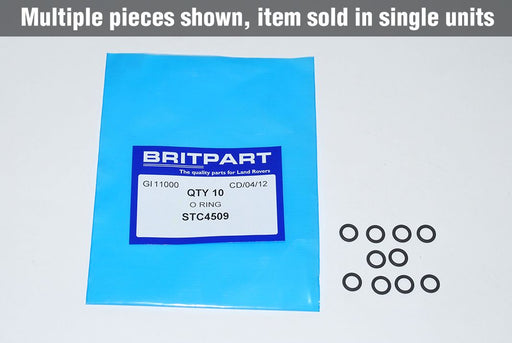

Gaskets and seals: required for internal engine work

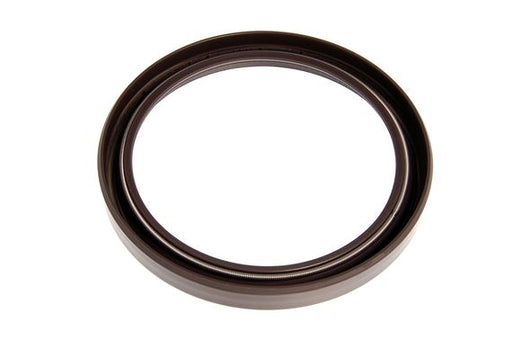

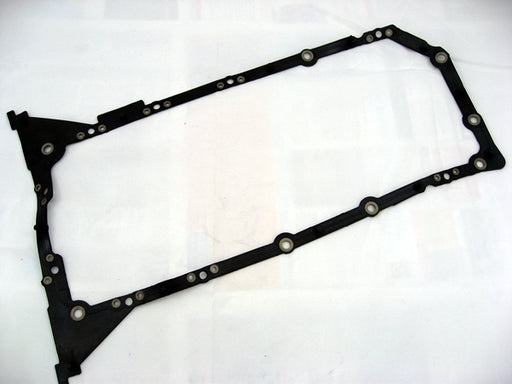

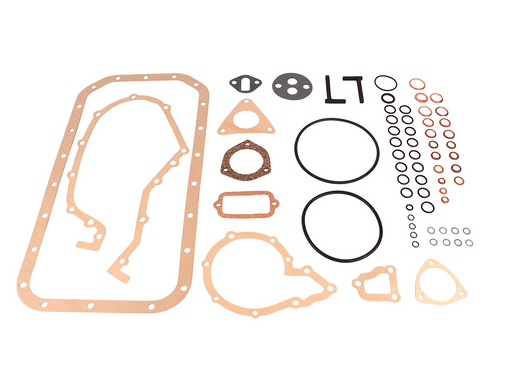

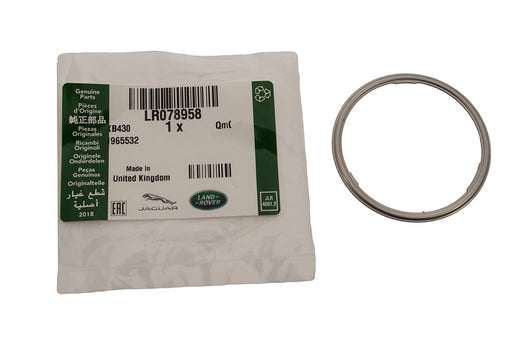

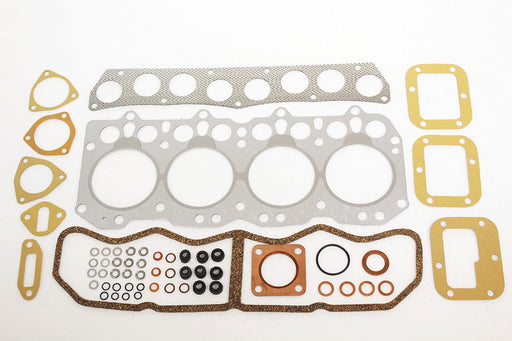

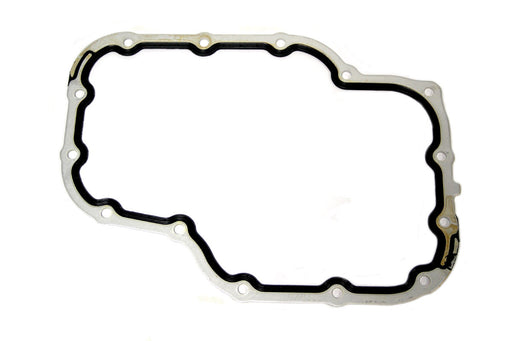

Any internal engine work involving disassembly of the cylinder head or bottom end requires new gaskets and seals. Head gaskets, sump gaskets, and crankshaft oil seals are commonly required in the course of engine mechanical repair, and a fresh refill of coolant and hoses from the Cooling Parts collection is sensible whenever the head has been off.

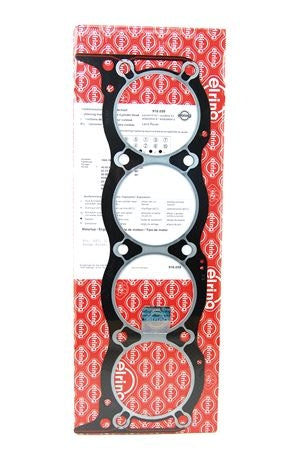

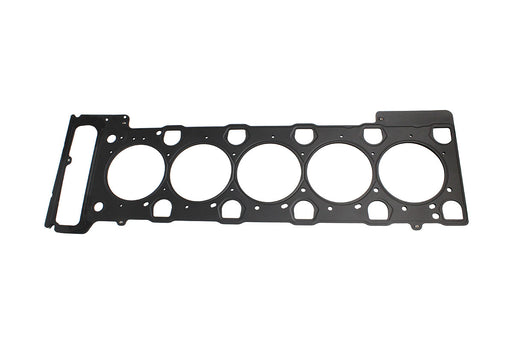

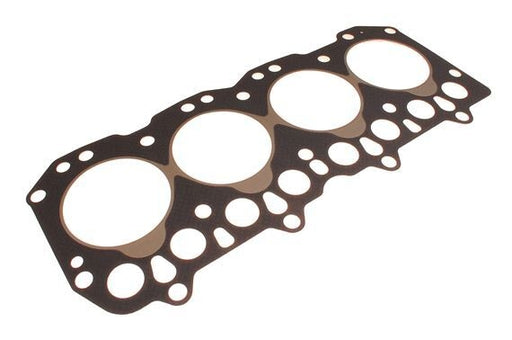

Multi-layer steel head gaskets are standard fitment on modern Land Rover diesel engines and should always be replaced with a new gasket rather than reused.

Oil contamination in the intake system on the 2.7 TDV6 is more commonly linked to turbocharger oil seal wear or crankcase breather system issues rather than a conventional gasket failure. This should be assessed during any top-end inspection on these engines. For comprehensive sealing parts, the Corteco Engine Seals collection covers the most common rebuild seal sets.

Common engine-parts ordering mistakes to avoid

Patterns observed across our engine-internals orders. None of these are repair instructions. They are buyer-confidence checks that reduce returns and re-orders.

1. Ordering a "TDV6 timing kit" without specifying 2.7 or 3.0. The two engines share a family name and a TDV6 badge but use different parts. Engine code (276DT or 306DT) settles it.

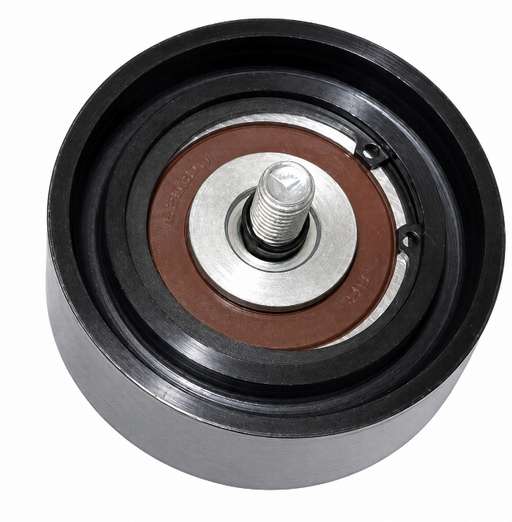

2. Reusing tensioner pulleys with a new belt. Belt kits include the tensioners for a reason. Reusing a pulley alongside a fresh belt invites failure inside one service interval.
3. Treating "TD4 timing belt kit" as universal for the Freelander 2. Generic listings often supply the cam-drive belt kit. Confirm whether the job needs the belt, the internal chain, or both before ordering.
4. Reusing an MLS head gasket after a head lift. Multi-layer steel gaskets are single-use. Reuse compromises sealing and risks repeat failure.

Rebuild sequencing matters

When carrying out engine mechanical work that involves the timing system, it is worth addressing bearing and seal condition at the same time where access permits. The additional parts cost of renewing bearings and rear crankshaft seals is modest relative to the labour involved in disassembly and reassembly.

Returning a vehicle to service with renewed timing components but worn bearings that will require the engine to come apart again within 30,000 kilometres is a poor outcome for both the owner and the workshop.

The same logic applies to piston and ring work. If a cylinder bore inspection shows the bore is within specification but ring wear is evident, ring replacement is worthwhile. If bore wear is present, the decision between a re-bore with oversize pistons and rings, or fitting a reconditioned or replacement short engine, depends on the overall condition of the block and the extent of the wear found.

Supported applications

If the engine code or variant is not immediately visible in the product listings, use the fitment search or contact Budget Parts directly to confirm compatibility before ordering.
