Land Rover gearbox and transfer box parts

Every Land Rover and Range Rover uses a two-part driveline: a main gearbox that handles gear ratios and torque delivery, and a transfer box that splits drive between the front and rear axles for the brand's 4x4 traction. Both are serviceable assemblies and both are made up of parts that wear, leak, or fail individually long before the unit itself needs replacing. This collection covers the seals, bearings, synchros, gaskets, fluids, and rebuild components for the gearboxes and transfer cases fitted across the Defender, Discovery, Range Rover, Freelander, and Series ranges.

For most owners the right approach is component replacement, not unit replacement. A leaking output seal, a worn bearing, or contaminated fluid are repairable faults. Knowing which fault you have, and which part fits your specific gearbox or transfer case, is the difference between a straightforward fix and an expensive misdiagnosis.

ZF automatic gearboxes on modern Land Rover and Range Rover models

Modern Land Rover and Range Rover models run almost exclusively on ZF automatic transmissions. The ZF 6HP26 sits in the Range Rover L322, Range Rover Sport L320, and Discovery 3 and 4. The ZF 8HP series followed it across the Range Rover L405, Range Rover Sport L494, Range Rover L460, Range Rover Sport L461, and Discovery 5.

These gearboxes are precision hydraulic-mechatronic units. The valve body, torque converter, and electronic control module are the most common failure points, usually triggered by degraded fluid rather than mechanical wear. Symptoms such as delayed engagement, gear hunting, or harsh shifting on a warm gearbox typically point to valve body or fluid condition, not to a failing transmission.

For service work on these units, ZF specifies ZF Lifeguard Fluid 6 (6HP series) or ZF Lifeguard Fluid 8 (8HP series). The two fluids are not interchangeable. ZF's official position on 8HP service intervals is "fill for life", but independent transmission specialists across Europe recommend a precautionary fluid and pan-filter service at around 80,000 to 120,000 km on vehicles used for towing, urban driving, or high-mileage motorway work. For the technical detail on fluid specifications and service requirements, ZF Aftermarket publishes its own transmission oil reference guide.

Manual gearboxes on the Defender, Discovery, and Series range

Manual gearboxes are less common on current production but are still the dominant powertrain across the Classic Defender, early Discovery, Freelander 1, and the Series range. The R380 was the long-running five-speed unit fitted to the Discovery 1 (post-200Tdi production), Discovery 2, and Classic Defender from the 300Tdi through to early Td5. The MT82 six-speed replaced it on the Defender 2.4 and 2.2 TDCi Puma. Earlier production used the LT77 (Discovery 1 200Tdi era) and the LT76 and LT95 on Series 2/3 vehicles.

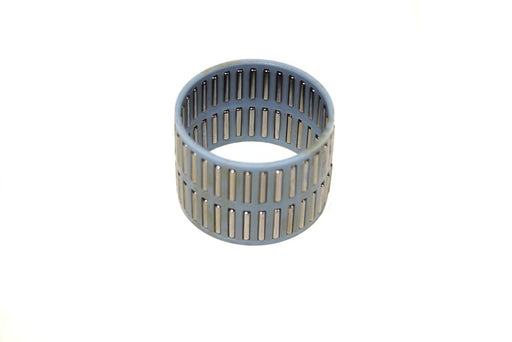

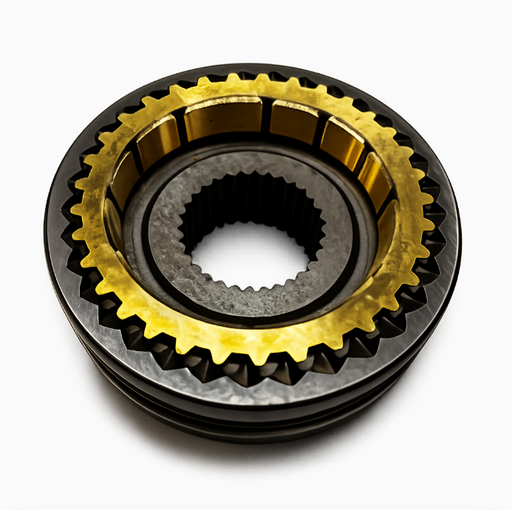

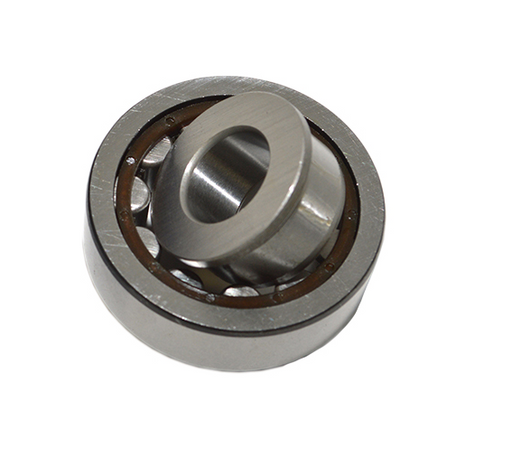

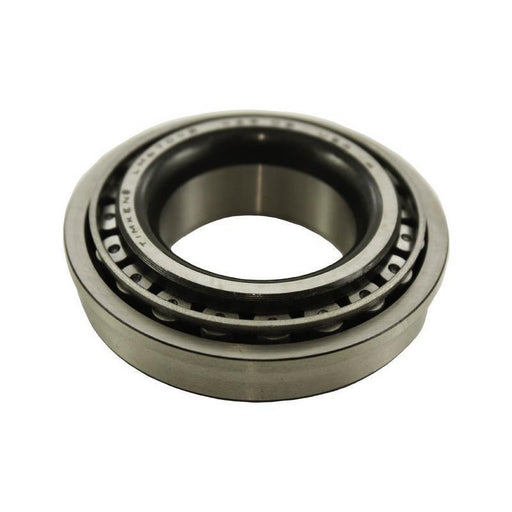

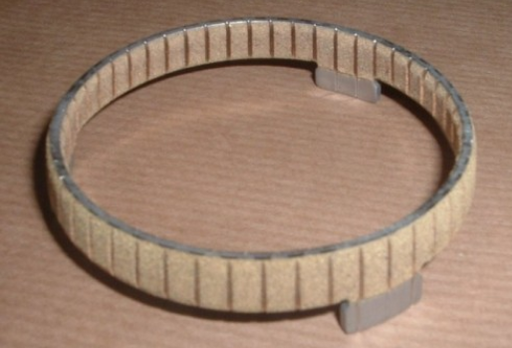

These units fail in predictable ways. Synchroniser rings on second and third gear wear first. Input shaft and lay shaft bearings degrade with age and oil contamination. Selector linkages and detent springs cause the symptoms most often misdiagnosed as a gearbox fault. Reverse idler gear chatter is common on R380 units past 240,000 km.

For most manual-gearbox owners, parts-level repair is straightforward and rebuild kits are available for the R380, LT77, and MT82. Specific Freelander 1 parts (IB5 manual) sit under the Freelander 1 collection. Series 2/3 gearbox parts have their own fitment requirements covered under the Series 2 and 3 collection.

Transfer boxes: low range, viscous couplings, and chain-drive units

The transfer box carries as much load as the gearbox and is often the part that goes ignored until it fails. The LT230 is the dominant transfer case across the Classic Defender, Discovery 1, Discovery 2, Range Rover Classic, and P38. It uses gear-drive between input and output shafts and a chain-drive system to the front output. The Discovery 3 and Discovery 4 use a chain-drive Magna Steyr unit with an electronic shift system. Modern Range Rover and Range Rover Sport models on the L405, L494, L460, and L461 platforms use a ZF-integrated transfer case as part of the transmission assembly.

Common failures are output shaft seal leaks, chain stretch on chain-drive units (Magna Steyr and modern ZF), viscous coupling failure on units fitted to early Discovery 2 and Range Rover P38, and selector motor failure on electronic-shift cases.

Common gearbox parts ordering mistakes to avoid

Most gearbox parts returns are caused by ordering errors at the buying stage rather than parts faults. The following are the most common we see across the Land Rover and Range Rover range.

• Ordering by model year only, not by gearbox code. The Range Rover Sport L320 ran both the ZF 6HP26 and the older ZF 6HP24 in early production. The same applies across Discovery 3/4 gearbox families and the L322 production run. The gearbox code stamped on the casing is the only reliable order reference.
• Mixing fluid specifications. ZF Lifeguard 6 and ZF Lifeguard 8 look similar in their packaging and are often substituted at the parts counter. The wrong fluid does not damage the gearbox immediately but degrades valve body sealing over a few thousand kilometres.

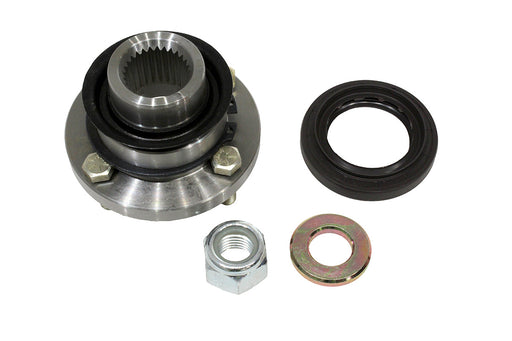

• Replacing a transfer box seal without the matching input flange. Many output seal failures are caused by flange wear; replacing the seal alone returns the leak within a few months. Inspect the flange surface before ordering the seal in isolation.
• Confusing gearbox and transfer box symptoms. Drivetrain vibration, juddering, and difficulty engaging gears can come from either the gearbox, the transfer box, the propshaft, or the clutch (on manual units). A symptom-led order list often replaces the wrong part first.
• Ordering a complete rebuild kit when only the synchros have failed. Most R380 and LT77 faults are second- and third-gear synchro wear. A targeted synchro kit costs a fraction of a full rebuild kit and resolves most symptoms.

For parts that overlap with the clutch system on manual gearboxes, see the Land Rover clutch parts collection. For driveline parts forward and aft of the gearbox, see the driveshaft and propshaft parts collection.
