Land Rover Hardware & Fasteners

The role of fasteners in Land Rover service and restoration

A Land Rover is held together by several thousand individual fasteners. Bolts, nuts, washers, clips, and rivets carry structural loads across the chassis, suspension, body, and drivetrain. On vehicles used off-road, towed regularly, or stored outdoors, these components see vibration, repeated load cycles, and exposure to mud, road salt, and water. Replacing them with the correct grade and coating during service or rebuild work is part of keeping the vehicle safe and rattle-free.

The Series I, II, and III generation use a mix of imperial Whitworth and UNF threads from the 1948 to 1985 production run, switching to metric on some later Series III assemblies. Defender, Discovery, Range Rover, and Freelander production from 1989 onwards uses metric throughout, with ISO 898-1 property class markings (8.8, 10.9, 12.9) standard across the range. This collection groups fasteners by application: chassis and structural mounts, suspension and steering linkages, body panels and bulkhead, brake and underbody, and interior trim. Use the filter to narrow by model or part category.

Hardware categories on this page

Five main groups cover the parts in this collection.

Bolts, nuts, and studs. Standard threaded fasteners across the vehicle. Suspension arm bolts, engine mount studs, gearbox crossmember bolts, body-to-chassis mounts. Grade is selected to ISO 898-1 property classes: 8.8 and 10.9 are the most common in chassis and suspension applications on Defender, Discovery, and Range Rover, with 12.9 used where higher tensile strength is required. Stainless variants (A2 and A4) appear in body and interior locations where corrosion resistance matters more than peak tensile strength.

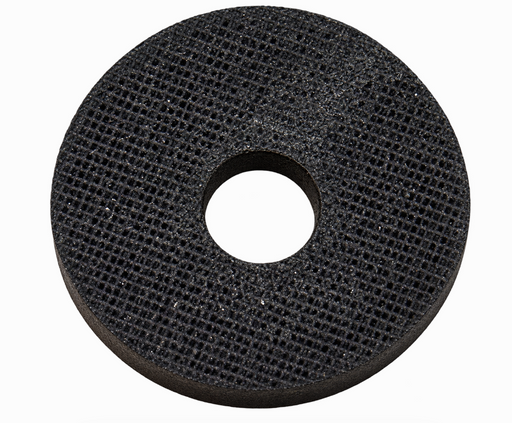

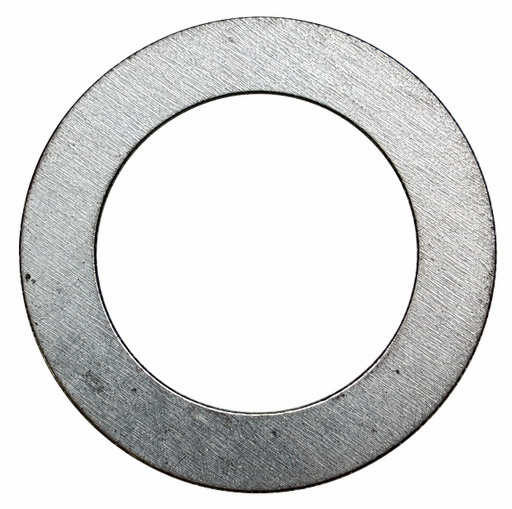

Washers and spacers. Plain washers, spring washers, locking washers, and shim spacers. These distribute clamping load, prevent galling on softer surfaces, and resist loosening from vibration. Mismatched or missing washers are a common cause of post-rebuild rattles and slow joint fatigue.

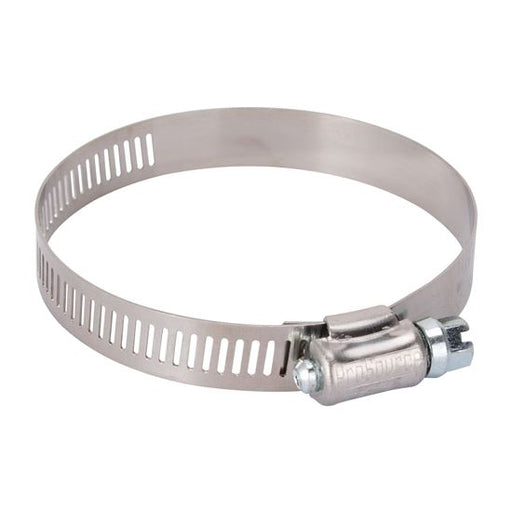

Clips, clamps, and rivets. Wiring harness clips, hose and pipe clamps, body panel rivets, and bulkhead fixings. The Freelander 1 and Freelander 2 use a high proportion of plastic clip fixings on the interior trim and underbonnet wiring; most are single-use and break on removal. Rivets are non-serviceable once set and must be drilled out to remove.

Fixing kits. Pre-grouped sets of fasteners for specific repair sections. Bulkhead repair kits, door hinge sets, body mount kits, suspension rebuild kits. Useful where a single specification list covers an entire repair area and individual SKU lookup would be slow.

Specialist fixings. Torque-to-yield bolts, single-use stretch bolts, lock nuts with metal or nylon inserts, and vibration-resistant hardware. These are called out in the Land Rover workshop manual for specific applications and should be replaced with new parts rather than reused.

Selecting the right hardware grade and coating

Three rules cover most situations.

For load-bearing chassis, suspension, and drivetrain work, use property class 8.8 or 10.9 carbon-steel bolts unless the workshop manual specifies a different grade. Property class 12.9 is reserved for applications where the manual calls for it. Carbon-steel bolts in exposed underbody locations need a corrosion-resistant coating: zinc plating is the most common, with phosphate or geomet coatings used where coating thickness matters for torque accuracy.

For body panels, interior fittings, and any joint between dissimilar metals, A2 (304-grade) or A4 (316-grade) stainless is the standard choice. A4 has better salt-water resistance and is the better option for coastal use or recovery vehicles.

For brake and steering hardware, follow the manual. These are safety-critical and frequently specify exact part numbers rather than generic grade equivalents. Mixing a stainless bolt into a brake assembly is rarely correct.

Before you order: pre-purchase fitment checks

Four checks reduce the risk of ordering the wrong fastener for the job.

• Confirm thread standard. Series I, II, and pre-1980 Series III use imperial Whitworth and UNF threads. Defender from 1983 onwards, Discovery, Range Rover, and Freelander use metric. Replacing a Series-era bolt with a metric equivalent of the same diameter will cross-thread the original mating part.
• Confirm grade marking on the original part. The head of a carbon-steel bolt carries the property class number (8.8, 10.9, 12.9). Match the replacement to the original unless the workshop manual specifies an upgrade. Mixing grades in a torqued joint changes the load distribution.
• Check whether the bolt is marked single-use in the workshop manual. Torque-to-yield bolts on suspension, drivetrain, engine, and brake assemblies must be replaced with new parts. The manual identifies these per assembly. If you do not have access to the manual, default to new bolts on any joint that carries road load.
• Check the kit contents against the joint inventory. Fixing kits group fasteners by repair section, but the exact contents vary by supplier. Before ordering a bulkhead kit, body mount kit, or suspension rebuild kit, list the fasteners the job needs and confirm the kit covers them. Crush washers, locking washers, and special-grade nuts are the most commonly missed items.

Where these parts apply across the vehicle

Hardware in this collection is used throughout Land Rover and Range Rover vehicles. Common applications by category:

• Chassis and body mount bolts, bulkhead fixings, crossmember repair section hardware: see Land Rover chassis and body parts for the structural parts these fasteners join. Series chassis rebuilds and Defender bulkhead repairs both draw heavily on this combination.
• Control arm bolts, anti-roll bar drop link nuts, ball joint pinch bolts, shock absorber mounts: see Land Rover suspension parts. Suspension overhaul work on the Discovery 3, Discovery 4, Range Rover L322, and Range Rover Sport L320 commonly pairs new arms with new pinch bolts and castle nuts.
• Caliper bracket bolts, hub carrier fixings: see Land Rover brake parts.
• Pre-assembled hardware sets included with major service jobs: see Land Rover service kits. Td5 and TDV6 service jobs frequently include sump bolt crush washers and rocker cover gasket fasteners that are easy to miss when ordering individually.
• Wheel studs and wheel bolts are listed in their own collections: Land Rover wheel studs and Land Rover wheel bolts.

Technical guides

Three guides cover repair areas where hardware selection and torque specification matter for the result.
