Land Rover Series Parts

Hex Head Bolt with a 1/4" BSF thread and a 5/8" shank length. A common application is the swivel pin housing, where it retains the swivel oil seal...

Swivel Bearing - the bearing on which the front axle swivel pin housing pivots, within the steering swivel assembly. It locates the swivel pin in ...

Clutch Cover (pressure plate assembly) for the clutch on 4-cylinder petrol applications. The cover bolts to the flywheel and houses the diaphragm ...

Brake Shoe Set for the front drum brake assembly, supplied as a complete axle set of four shoes covering both front wheels. Each shoe carries the ...

Ball Joint for the anti-roll bar drop link. It forms the pivoting connection at the end of the anti-roll bar, linking the bar to the suspension so ...

Hex Nut, 7/16" UNF, plain steel. This full hex nut secures the door top to the door base on Series models and is used at other 7/16" UNF fixing po...

Jubilee Clip - 60-80mm is a worm-drive hose clip with a 60-80mm clamping range. The band is tightened by a captive worm screw to secure large-bore...

O-Ring for the LT95 combined gearbox and transfer box. It seals one of the shaft and housing joints within the unit, retaining gear oil and prevent...

Heater Control Finger Grip The finger grip fitted to a heater control slider on the heater (HVAC) control panel, operated in the up/down plane. It...

Propshaft Bolt Kit - Rear is a driveline fixing set for securing the rear propeller shaft at its flange connections. The kit provides the correct-...

Wing Nut with a 1/4" BSF thread, tightened by hand without tools. Used to secure the battery clamp frame and the oil-bath air cleaner clamp, where...

Set Screw, M8 x 70 mm. A fully threaded hexagon-head fastener in high-tensile steel with a bright zinc-plated finish. Used across a range of chassi...

Glass Fuse rated at 10A, a cartridge-type fuse used in the vehicle electrical system. The fuse seats in the fuse box or an inline fuse holder and ...

Hub Bearing - the outer taper roller bearing that supports the wheel hub on the stub axle. Each wheel hub runs on a pair of opposed taper roller b...

Oil Temperature Transmitter for the engine instrumentation circuit. The transmitter threads into the oil gallery and varies its electrical resistan...

Nyloc Nut with an M16 thread - a nylon-insert locking nut used on heavily loaded suspension and driveline fixings. A nylon collar set into the top...

Rear Stop/Tail Lamp - LED - LED combined stop and tail lamp with a red lens, supplied as a complete sealed unit to replace the standard rear stop/t...

Clutch Driven Plate (friction disc) for the clutch assembly, 9 1/2 inch diameter. The driven plate is clamped between the flywheel and the pressur...

Head Gasket Seals the cylinder head to the cylinder block on the pre-TDi 2.25L and 2.5L naturally aspirated and turbocharged diesel engines. It co...

Oil Pump Gasket for the engine lubrication system, sealing the oil pump to its mounting face on the cylinder block. It maintains a leak-free joint...

Water Temperature Sender threads into the cooling system and measures engine coolant temperature, feeding the signal to the dashboard temperature g...

Split Pin Assortment A 280-piece assortment of split pins (cotter pins) in a range of sizes, supplied as a workshop set. Split pins secure castell...

Heater Intake Hose is the flexible convoluted air hose in the heater fresh-air intake ducting. It connects the fresh-air intake to the heater hous...

Windscreen Hinge Bolt is a fixing used to secure the folding windscreen frame hinge to the scuttle. It clamps the hinge mounting at the base of th...

Accelerator Pedal Return Spring for the cable-operated throttle linkage. The spring returns the accelerator pedal to its rest position when foot p...

Sealing Washer - copper sealing ring for the cooling system drain points. It seats under the radiator drain plug and the cylinder block drain tap, ...

Hub Bearing - Taper Roller - Front & Rear is a taper roller wheel bearing for the front or rear hub assembly. Each bearing is made up of a tap...

Oil Pressure Switch threads into the engine block oil gallery and monitors lubrication system pressure. It operates the low oil pressure warning l...

Plain Washer - a flat, load-spreading washer with a 1/4 in (6 mm) bore and 5/8 in outside diameter, approximately 1/16 in thick, finished in Sherar...

Inlet Valve Stem Seal for the cylinder head valvetrain, fitted over the inlet valve stem at the top of the valve guide. The seal meters the oil pa...

Plain Washer with a 6 mm (1/4") bore, a general-purpose flat washer for use with M6 fasteners. Fitted beneath a bolt head or nut to spread the cla...

Lock Nut is a captive plastic fastener (commonly known as a Lokut nut) that receives a No. 10 self-tapping screw. The body pushes into a square pa...

Spring ring

This unit provides position illumination at the front of the vehicle and interfaces with the vehicle's electrical lighting circuit and mounting ape...

Thermostat Housing Gasket seals the joint between the thermostat housing and the cylinder head water outlet in the engine cooling circuit. It main...

Brake Pipe Clip – Double secures a pair of brake pipes along their routing through the braking hydraulic circuit, retaining both lines against the ...

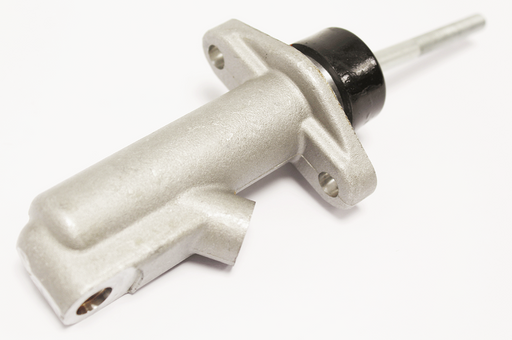

Brake & Clutch Master Cylinder - Combined CV-Type serves both the braking and clutch hydraulic circuits from a single unit. In this CV-type de...

Windscreen Seal - 2.5m is the rubber glazing seal for the windscreen, supplied as a 2.5 m length. It seats the windscreen glass in its aperture an...

Heater Control Finger Grip The finger grip fitted to the hot/cold (temperature) control on the heater control panel. It clips onto the control lev...

Rocker Cover Gasket (Top) - seals the rocker cover joint on the 2.6L 6-cylinder petrol engine. Fitted between the rocker cover and the cylinder he...

Halfshaft Collar is a locating collar fitted to the front axle halfshaft. It seats against the inner side of the halfshaft bearing (244150), setti...

Bolt, a hexagon-head fastener with a 5/16" UNF thread, 7/8" long. This imperial fastener is of the UNF (Unified National Fine) thread series and i...

Steering Wheel Boss in the steering column assembly, providing the mounting interface between the column shaft and the steering wheel. The 48-spli...

Ball Bearing for the transfer box, supporting the output shaft and its output flange. Fitted in the LT230 and NV225 transfer boxes, the bearing lo...

Track Rod End for the steering linkage, with a left-hand thread and a fully threaded shank. The track rod end forms the ball-jointed connection be...

Lokut Nut is a self-locking nut used to secure the headlamp to the body at the front wing. The self-locking design resists loosening under vibrati...

Seat Belt Buckle - Right-Hand - the latching receptacle of the seat belt restraint, into which the belt tongue (latch plate) engages and locks to h...

Blanking Plug closes off an unused 8mm (5/16 inch) aperture in a body panel or chassis section. It belongs to the body grommets and panel-sealing g...
