Land Rover Series Parts

Timing Cover Mudshield is the pressed shield that fits over the timing cover at the front of the engine. It screens the timing case and front pull...

Exhaust Bracket for the exhaust system on left-hand drive vehicles. This bracket supports and locates the exhaust along its run beneath the vehicl...

Lock Plate for the rear drum brake shoe retainer. This fold-over tab plate locks the two screws that secure the brake shoe bottom retainer ring. I...

Sealing Washer for the carburettor choke switch on petrol engine applications. Fitted at the choke switch, it seals the joint at the fitting to pr...

Oil Cooler for the engine lubrication system, in 4-cylinder Military Lightweight specification. Connected into the engine oil circuit, it passes t...

Rear Propshaft for the short-wheelbase chassis, forming part of the driveline between the transfer gearbox and the rear axle. The propshaft transm...

Rear Crankshaft Packing Strip (T-Piece) forms part of the rear crankshaft oil seal arrangement at the back of the cylinder block. The T-piece pack...

Gear Lever Locating Pin locates and retains the main gear lever within the manual gearbox. It holds the lever against its pivot so that shift move...

Steering Relay Gasket seals the steering relay assembly within the steering linkage. The steering relay transfers movement from the steering box d...

Bulb rated 12V 4W with a small-diameter fitting, part of the vehicle lighting system. This low-wattage bulb suits the small-fitting (Lucas-type) l...

Inlet Valve - the poppet valve that seals the inlet port in the cylinder head and opens on the induction stroke to admit the incoming air charge to...

Contact Set - Lucas Distributor is the breaker-point set for the ignition distributor. Mounted on the distributor baseplate, the points are opened...

Oil Filter Bowl Bolt Washer - rubber sealing washer for the oil filter bowl centre bolt. Fitted to the centre bolt that retains the oil filter bow...

Layshaft Bearing for the Series manual gearbox. It supports the layshaft (countershaft) within the gearbox casing, allowing the constant-mesh gear ...

Castle Nut (castellated nut) used to retain halfshafts, output shafts and differential pinion shafts in Land Rover axle and drivetrain assemblies. ...

Joint Washer for the gearbox output shaft housing. This gasket seals the mating face between the output shaft housing and the gearbox casing, prev...

Hex-head screw, 5/16" UNF thread, 1-1/4" long. Unified Fine (UNF) thread form with a hexagonal head for use with standard imperial spanners and so...

Lucar Connector - a fully insulated two-way in-line electrical connector for joining wiring within the loom. Of the Lucar (blade) terminal type, i...

Spare Wheel Cover in black vinyl, sized to fit a 235/85 R16 spare tyre. The cover fits over an externally mounted spare wheel to shield the tyre a...

Hazard Flasher Relay - the switching relay in the hazard warning circuit. When the hazard switch is operated, the flasher relay pulses all four di...

Turnbuckle is the semi-circular catch that fastens the seat box and rear tub locker lids down. It rotates over the mating hasp to hold the lid shu...

Camshaft Cover Gasket seals the camshaft cover plate to the cylinder block, forming part of the camshaft housing and engine lubrication boundary. ...

Cylinder Head Bolt - a clamping bolt securing the cylinder head to the engine block. It draws the head down onto the block to compress the head ga...

Swivel Housing Gaiter Kit in leather for the front axle swivel housings, supplied as an axle set to cover both sides. The gaiter encloses the swiv...

Fan Belt for the engine auxiliary (accessory) drive. Transmits drive from the crankshaft pulley to the water pump, cooling fan and dynamo or altern...

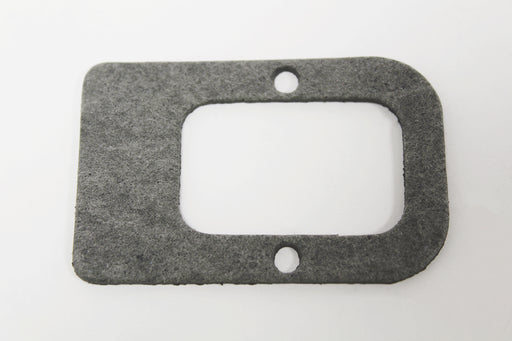

Window Catch Gasket seals the window catch on the rear side door. It fits between the window catch and the door panel, forming a weatherproof seal...

Plain Nut - an M10 threaded fastener used at engine and chassis fixing points. Applications include retaining the shock absorber mountings to the ...

Brake Pipe for the front braking hydraulic circuit. This is the flexible pipe that feeds the front wheel cylinders. It connects the chassis-mounte...

Hub Bearing – inner taper roller bearing for the front and rear wheel hubs. The bearing sits inside the hub and runs on the stub axle, carrying th...

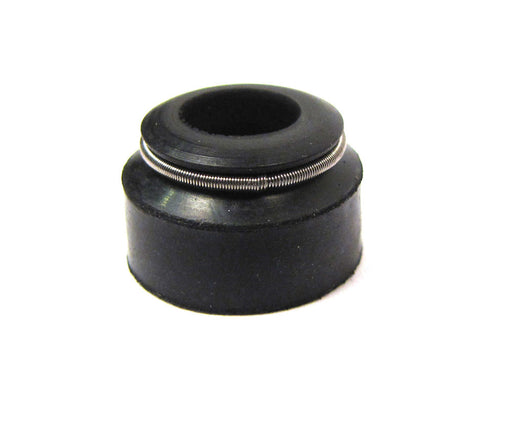

Inlet Valve Stem Seal for the cylinder head valvetrain, fitted over the inlet valve stem at the top of the valve guide. The seal meters the oil pa...

Strap

Inlet Valve Guide for the diesel cylinder head, part of the valve train. Pressed into the cylinder head, the guide locates the inlet valve stem an...

Parabolic Leaf Spring for the rear axle, supplied as a matched pair. A parabolic spring uses fewer, tapered leaves than a conventional multi-leaf ...

Water Pump for the Rover V8 petrol engine, of the viscous-drive type. It mounts to the front of the engine and forms part of the engine cooling cir...

Indicator front/rear LED clear lens

Plain Washer - flat washer for use in general fastening assemblies throughout the vehicle. Distributes load and protects mating surfaces under bol...

Auxiliary Fuel Tank for the fuel storage system, in the original military pattern. This under-seat auxiliary petrol tank supplements the main fuel...

Hex-head bolt, 3/8" UNC thread, 3/4" long. Unified Coarse (UNC) thread form with a hexagonal head for use with standard imperial spanners and sock...

Bolt - 5/16" UNF x 1/2" - a hex-head set screw with a 5/16" UNF (Unified National Fine) thread and 1/2" length. Fully threaded to the head, it pro...

Countersunk Screw - a machine screw with a flat, cone-shaped head that seats flush with the surface it fixes, leaving no proud edge. Metric M6 thr...

Screw M6 x 20 pan-head screw. It can be used in place of LR083229 (RYG500650 / DYP500210 / EYG50080) but is not identical: this screw has no capti...

Contact Set for the ignition distributor of the 3.5L V8 petrol engine. The contact breaker points open and close the primary circuit to the ignitio...

Ignition Condenser for the contact-breaker distributor, of the Ducellier type. Wired across the contact-breaker points, the condenser absorbs the ...

Starter Motor for the engine starting system - a 12V high-torque gear-reduction unit for petrol applications. The starter mounts to the bellhousin...

Glass Fuse rated at 5A, a cartridge-type fuse used in the vehicle electrical system. The fuse seats in the fuse box or an inline fuse holder and p...

Shock Absorber for the rear suspension, forming part of the rear axle damping assembly. This telescopic hydraulic damper is fitted between the cha...

Shock Absorber for the front axle, damping suspension movement by converting the energy of spring oscillation into heat as the axle moves relative ...

Handbrake Shoe - V8 - LT95 is a brake shoe for the transmission-mounted parking brake used with the LT95 four-speed gearbox. Rather than acting at...
