79103LR - Nutsert – 5/16" UNF by Land RoverBody Part Land Rover Range Rover Range Rover, Series

79103LR - Popnagelmoer – 5/16" UNF

- €2,40

€2,40

€2,40 - €2,40

€2,40

Tip: Log in to your account to unlock volume discounts on this item.

Genuine: Original manufacturer part. This product is the original part designed and produced by the vehicle manufacturer.

Omschrijving:

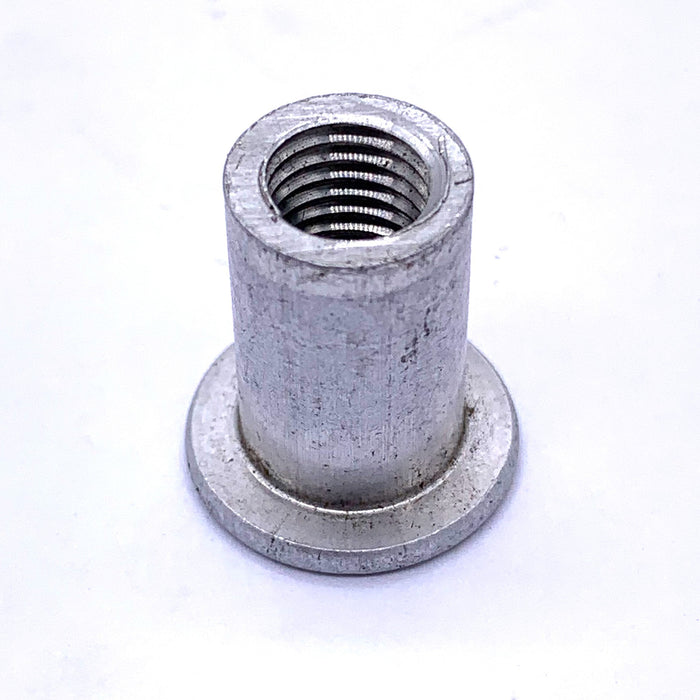

De Nutsert - 5/16" UNF is een blindklinkmoer (rivnut) met een 5/16" UNF binnendraad.

Een blindklinkmoer wordt in een voorgeboord gat in plaatmetaal of dunwandig materiaal geplaatst en met een blindklinkmoertang vastgezet, waardoor de kraag aan de achterzijde uitzet om het inzetstuk op zijn plaats te klemmen. Het resultaat is een permanent, belastbaar bevestigingspunt met schroefdraad, geschikt voor toepassingen waarbij toegang tot de achterkant van het paneel niet mogelijk is.

Gebruikt in het hele Series- en Range Rover Classic-assortiment in carrosserie- en interieurpaneelassemblages.

Alle productcodes / identificatiecodes:
79103 79103LR 79103 79103,

Modellen:
Range Rover Classic t/m 1994
Land Rover Series 2 en 3

Vehicle Model Range Rover Classic up to 1994
Land Rover Series 2 and 3

Fitment Notes RANGE ROVER CLASSIC 1986-1991 — Rivnut 5/16" UNF for rear forward-facing seat assembly (to VIN HA610293)

Alternative Codes

7910379103LR

In stock 8 units

8 · Gouda 0 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the 79103 nutsert and what does it do?

The 79103 is a blind rivet nut (rivnut) with a 5/16in UNF internal thread. It sets into a pre-drilled hole in sheet metal, expanding its collar on the reverse to create a permanent threaded fixing point where there's no access behind the panel. It's used on the Series and Range Rover Classic.

How is the 79103 nutsert installed?

The 79103 nutsert installs with a rivnut setting tool. You drill the correct-size hole, insert the rivnut, and the tool draws it up so the collar clamps onto the back of the panel. Once set it gives a load-bearing 5/16in UNF thread. A hand rivnut tool is typically enough for this size.

Where is the 79103 used on a Range Rover Classic?

On the Range Rover Classic the 79103 is used in the rear forward-facing seat assembly, providing a 5/16in UNF mounting point. This applies to 1986 to 1991 models up to VIN HA610293. It's also used across Series body and interior panels.

How many 79103 nutserts will I need?

The 79103 is sold individually, so order one per mounting point. A seat assembly or panel repair typically uses several, so count the fixing points on your Series or Range Rover Classic before ordering. Buying a few spares is sensible, as a mis-set rivnut can't be reused.
