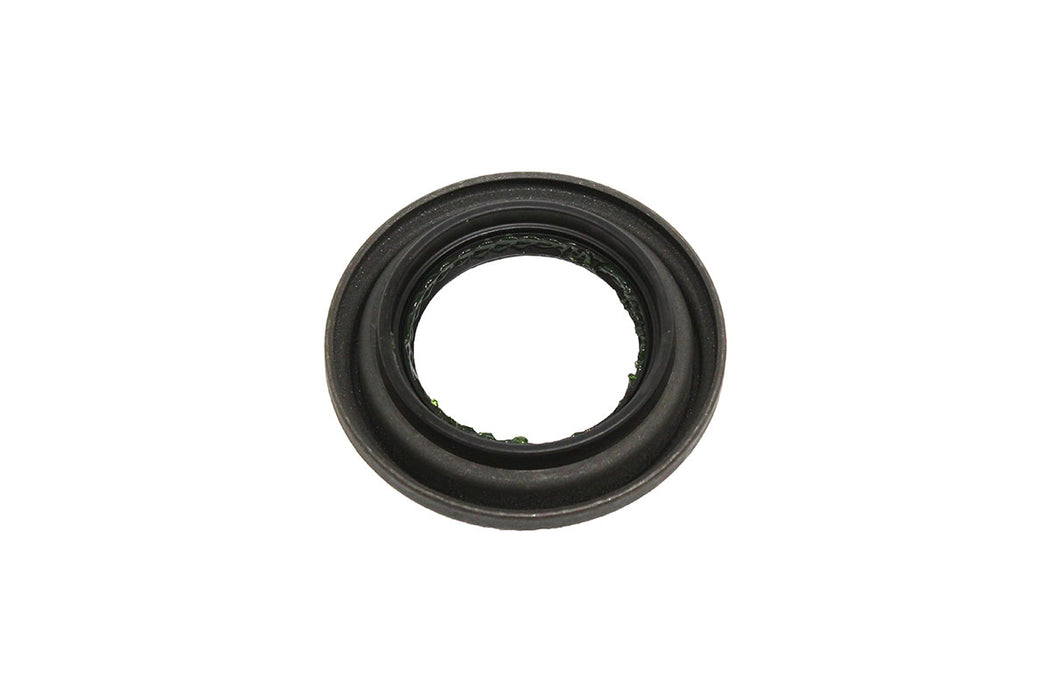

AAU3381LR - Seal - Driving Pinion Oil by LAND ROVEREngine Part Land Rover Range Rover Defender, Series

AAU3381LR - Keerring - Aandrijfpignonolie

- €15,70

€15,70

€15,70 - €15,70

€15,70

Genuine: Original manufacturer part. This product is the original part designed and produced by the vehicle manufacturer.

Keerring - Drijfashuis

Vehicle Model Land Rover Defender t/m 2016
Land Rover Series 2 en 3

Fitment Notes Chassis - vanaf LA930456, Chassis - tot KA930455
DAIMLER LIMOUSINE 1968 - 1992 CLASSIC Differentieel compleet

Alternative Codes

AAU3381LRAAU33818HA-019-5AEU2515RTC1010

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

Netherlands / Belgium / Germany: 2–4 working days after dispatch.
Other EU countries + UK: 4–8 working days after dispatch.
Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the AAU3381LR pinion oil seal for?

The AAU3381LR pinion oil seal seals the drive pinion shaft where it enters the Salisbury rear differential. It sits at the nose of the diff housing, running against the pinion flange behind the propshaft. It keeps axle oil in and water and dirt out of the pinion bearings.

Does this seal fit any Land Rover rear axle?

This seal is specific to the Salisbury rear differential, the heavy-duty axle used on the Series III 109-inch and the Defender 110 and 130. It won't suit the lighter Rover-type axles. Confirm your vehicle has the Salisbury diff before ordering.

Why does a pinion oil seal leak and when should it be replaced?

A pinion oil seal leaks as the lip hardens or the flange surface wears, showing as oil at the nose of the differential. Replace it whenever the pinion flange or nut is disturbed. On the Salisbury axle, ignored oil loss can starve the pinion head bearing.

What are the alternative part numbers for this seal?

This seal also cross-references to RTC1010, AEU2515 and 8HA-019-5, so a match against any of those confirms the right part. Inspect the pinion flange sealing surface when fitting, since a scored flange will quickly ruin a new seal.
