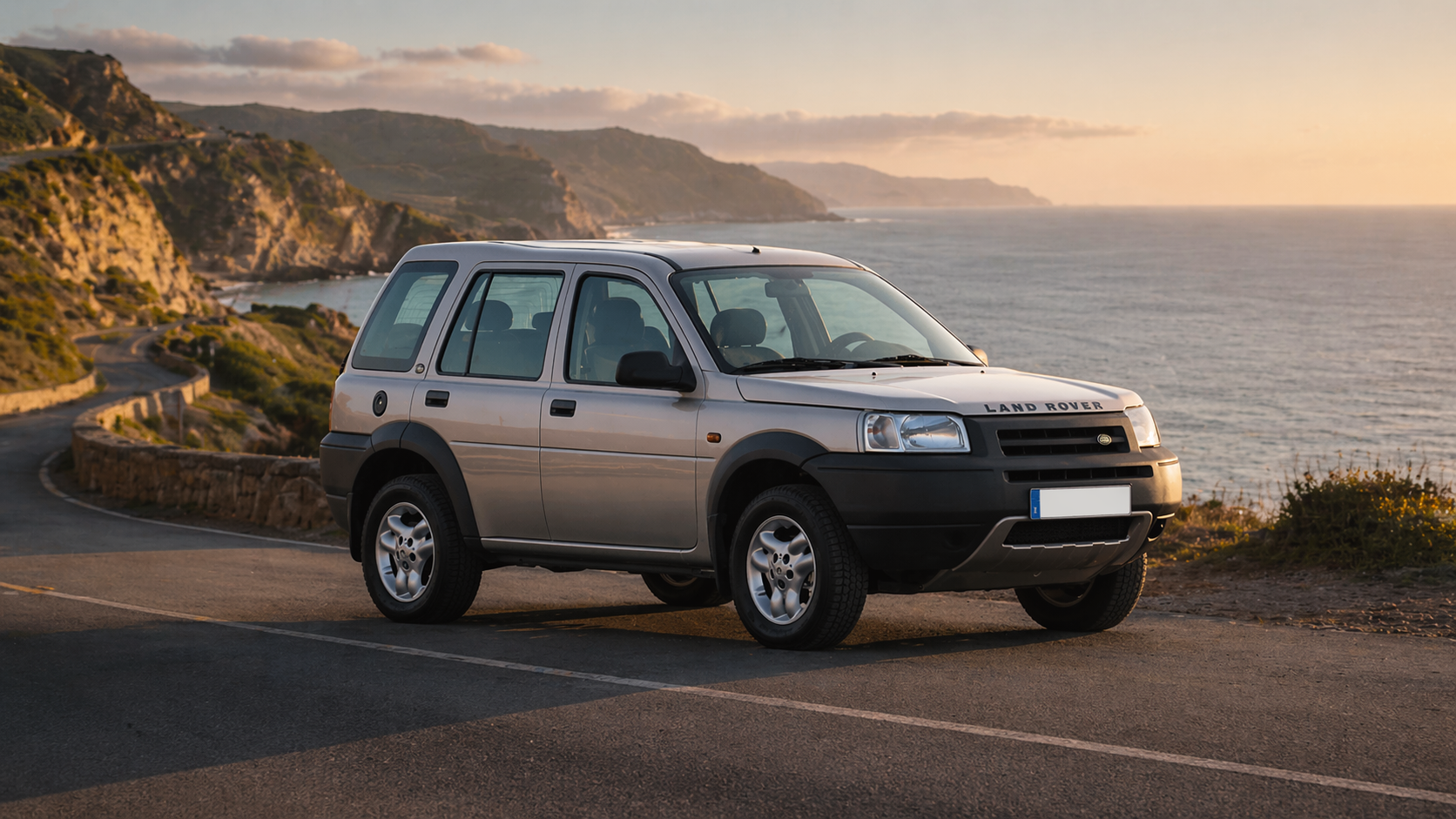

Freelander 1 Common Problems, Faults & Parts Guide (1997–2006)
Freelander 1 Fault Guide
Priority Fault
Drivetrain Failure
Wear Pattern
Service Data
Body Electrical
The Freelander 1 is one of the most technically distinctive Land Rovers ever built and one of the most fault-specific. With four engine variants, a unique drivetrain architecture, and several known failure modes that can write off an otherwise sound vehicle, correct diagnosis before ordering parts is critical. This guide covers the major fault areas on the Freelander 1, scoped by engine variant and production year.
TL;DR
Model Identification
Freelander 1 Fault & Maintenance Summary
- The Freelander 1 (1997-2006) has four distinct engine variants, each with its own failure hierarchy.
- The 1.8 K-Series petrol is most closely associated with head gasket failure driven by cooling system faults and overheating.
- The TD4 diesel is known for EGR fouling, swirl flap failure on automatic models, and vacuum pump deterioration.
- All Freelander 1 variants share high-risk drivetrain issues, especially IRD failure and viscous coupling degradation.
- Front lower arm bushes, CV joints, and brake wear items are among the most frequent routine replacement parts.
Freelander 1 Engine Variants: Know Your Model Before You Order Parts
The Freelander 1 was produced across two body generations, pre-facelift (1997-2000) and facelift (2001-2006), with four distinct engine options. Parts compatibility, fault profiles, and diagnostic priorities differ significantly between them.
| Engine | Type | Years | Known Priority Fault |
|---|---|---|---|
| 1.8 K-Series | Petrol 4-cyl | 1997-2006 | Head gasket / coolant cross-pipe |
| 2.5 KV6 | Petrol V6 | 2001-2006 | Oil leaks, head gasket (uncommon) |
| 2.0 L-Series (Di) | Diesel 4-cyl | 1997-2000 | Fuel pump timing / injector wear |
| 2.0 TD4 (BMW M47) | Diesel 4-cyl | 2001-2006 | EGR fouling, swirl flap failure (auto only), vacuum pump |
All variants share the same core drivetrain architecture. IRD unit and viscous coupling faults apply regardless of engine choice. Always confirm engine code and model year before ordering gaskets, filters, manifolds, sensors, or engine ancillaries.
Workshop LogicFreelander 1 Symptom Diagnostic Table
| Symptom | Likely System | Primary Suspect | Priority |
|---|---|---|---|
| White smoke from exhaust (petrol) | Cooling / Cylinder head | K-Series head gasket | Critical |
| Coolant loss with no visible leak | Cooling / Cylinder head | K-Series cross-pipe / head gasket | Critical |
| Mayonnaise under oil filler cap | Engine internals | Head gasket failure | Critical |
| Grinding or growling under load | Drivetrain | IRD unit bearing failure | Critical |
| Binding or vibration on full lock | Drivetrain | VCU or front outer CV joint | High |
| Clunk from front under acceleration | Drivetrain | Front inner CV joint / IRD | High |
| Black smoke and loss of power (TD4) | Engine / Induction | EGR fouling / swirl flap failure | High |
| Hard brake pedal (TD4) | Braking / Vacuum | Vacuum pump or servo failure | High |
| Click on full steering lock | Drivetrain | Front outer CV joint | Medium |
| Vague steering or pulling | Suspension | Front lower arm bushes | Medium |
| Soft or spongy brake pedal | Braking | Air in system / caliper leak | Medium |
| Jammed or slow window | Body electrical | Window regulator / motor failure | Low |
Freelander 1 K-Series 1.8 Head Gasket Failure: The Most Critical Fault
The 1.8 K-Series petrol engine is the most common Freelander 1 engine in the EU aftermarket and also the most vulnerable to catastrophic failure when cooling system maintenance is neglected. Head gasket failure on the K-Series is not a simple wear item. It is a system-level failure driven by design sensitivity and accelerated by overheating.
Root Cause
The K-Series block uses a bolt-through design where the head bolts also seal coolant galleries. Coolant pressure fluctuation, especially after even brief overheating, can cause the gasket to lift. The coolant cross-pipe beneath the inlet manifold is a known failure initiator and can trigger rapid coolant loss before a driver sees meaningful warning on the dashboard.
Critical Gauge Warning
The standard Freelander 1 temperature gauge can remain in the normal range until the engine is already seriously overheated. By the time the needle moves, damage may already be underway. Live coolant temperature data is a far better early warning method than relying on the dash gauge alone.
Typical Symptoms
- White or sweet-smelling exhaust smoke
- Persistent coolant loss with no visible external leak
- Mayonnaise under the oil filler cap or on the dipstick
- Rapid overheating in traffic or at idle
- Coolant reservoir bubbling under pressure from cold start
Measured Thresholds
Normal K-Series operating temperature is 88-92°C. If coolant temperature exceeds 115°C without thermostat intervention, head gasket integrity is at immediate risk.
Correct Parts Strategy
Always fit an MLS head gasket, not the original composite design. The Multi-Layer Steel gasket provides better sealing under thermal cycling and is the correct choice for any K-Series rebuild.
- K-Series MLS head gasket set
- Coolant cross-pipe assembly
- Thermostat and housing
- Coolant temperature sensor
- New single-use head bolt set
Sensor reference: NTC type, approximately 2,200-2,500 Ω at 20°C.
Head bolt torque sequence: 20 Nm, then 45 Nm, then +180°, then +45°
Workshop Note
Diesel Fault Cluster
Pressure-test the cooling system to 1.1 bar and perform a combustion gas block test before condemning the head gasket on symptoms alone. Running a K-Series with a failed gasket, even briefly, commonly warps or cracks the cylinder head and increases the repair cost substantially.
Freelander 1 TD4 Diesel: EGR, Swirl Flap & Vacuum Pump Faults
The TD4 uses the BMW M47 2.0-litre four-cylinder diesel. The three priority fault areas in the Freelander 1 installation are the EGR valve, the inlet swirl flap mechanism on automatic variants, and the engine-driven vacuum pump.
EGR Valve Fouling
Failure mode: Carbon deposits cause the EGR valve to stick open or closed. A stuck-open valve introduces excessive exhaust gas into the intake, creating rough idle, black smoke, and progressive power loss.
Diagnostic check: If idle quality improves when the EGR connector is disconnected, the valve is a strong suspect. Expected charge pressure at full throttle is 1.0-1.1 bar.
Parts: EGR valve assembly, matched to production date.
Swirl Flap Failure
Automatic TD4 only. Manual TD4 models do not use this swirl flap arrangement.
Failure mode: Plastic swirl flaps in the manifold can detach and enter the engine, causing severe internal damage.
Diagnostic check: Inspect spindle play. Movement exceeding 0.5 mm is a replacement trigger.
Parts: Complete inlet manifold assembly with swirl flaps.
Vacuum Pump Failure
Failure mode: Wear or seal failure reduces brake servo assistance, often leading to a progressively heavy brake pedal.
Diagnostic test: After exhausting stored vacuum, the pedal should drop within 2-3 seconds of engine start.
Reference: Servo inlet vacuum should be around 500-550 mbar.
Parts: Vacuum pump assembly, sealing washer, and vacuum hose inspection.
Freelander 1 IRD Unit Failure: Drivetrain Noise Diagnosis
The Intermediate Reduction Drive (IRD) is the front differential and power distribution unit unique to the Freelander 1 drivetrain. It is one of the most expensive failure points on the platform and one of the most frequently missed during routine servicing.
What the IRD Does
The IRD transfers drive from the gearbox output to the front axle while managing speed differential between front and rear axles in conjunction with the viscous coupling. Failure compromises 4WD function and can lead to major drivetrain damage.
Common Failure Pattern
Oil starvation is the primary cause. Water ingress through degraded seals is secondary. Once oil is depleted or contaminated, bearing failure typically follows within a relatively short running period.
Typical Failure Sequence
- Low whine or hum from the front drivetrain, increasing with road speed
- Growling under load, especially during acceleration
- Vibration through the floor or centre console
- In advanced cases, clunking or sudden drivetrain resistance
Service Specification
Critical Rule
Oil: API GL-4 75W-90
Capacity: 0.85 litres
Interval: 60,000 km or 4 years
Diagnostic check: Oil should sit at the bottom of the filler hole thread and appear clear amber. Black oil or metallic contamination strongly suggests internal wear.
Freelander 1 Viscous Coupling Unit (VCU): When 4WD Becomes a Liability
The Viscous Coupling Unit (VCU) links the front and rear axles through a mechanical fluid coupling. When front and rear axle speeds differ, the internal silicone fluid thickens and transfers torque. When the unit stiffens or locks, the system begins to overload the rest of the drivetrain.
The Golden Rule: Tyre Matching
Always fit all four tyres as a matched set using the same brand, model, and specification. A tread depth difference of more than 3 mm between front and rear axles creates continuous rotational conflict in the VCU, generating heat and placing severe stress on the IRD. This is one of the most avoidable causes of catastrophic Freelander 1 drivetrain failure.
Symptoms
- Binding sensation on low-speed turns
- Shudder or vibration from the rear at 60 to 80 km/h
- Unexplained increase in fuel consumption
- IRD or transfer-related overheating in normal use
Diagnostic Check
With all wheels clear of the ground, rotate one rear wheel by hand. The opposite rear wheel should rotate in the same direction at a similar speed. Significant resistance, or front wheel movement during this test, points to a seized or locking VCU.
Freelander 1 CV Joint & Driveshaft Wear
CV joint wear on the Freelander 1 is closely tied to VCU and IRD condition. A locked VCU or failing IRD increases stress on the front driveshafts and reduces normal service life.
| Symptom | Location | Likely Fault |
|---|---|---|
| Clicking on full steering lock | Front axle | Front outer CV joint |
| Clunk under acceleration from rest | Front axle | Front inner CV joint / inboard joint |
| Constant vibration at motorway speed | Rear / front | Driveshaft imbalance or rear propshaft centre bearing |
Inspection Standard
Brake System
Inspect all driveshaft gaiters during every steering or suspension job. Any split boot, grease loss, or contamination requires immediate action. Do not simply re-grease a contaminated CV joint. Replace it.
Freelander 1 Brake System: Discs, Calipers & Master Cylinder
The Freelander 1 uses disc brakes at all four corners across the production run. Some versions use a drum-in-hat layout within the rear disc for the mechanical handbrake, but the service brake remains disc-operated on all variants.
Routine Wear Items
- Front brake discs and pads
- Rear brake discs and pads
- DOT 4 brake fluid, renewed every 2 years
Brake fluid spec: DOT 4 / ISO 4925 Class 4
Common Fault Areas
Rear caliper seizure is common on corrosion-prone vehicles and can cause uneven pad wear, pull under braking, and handbrake binding. Master cylinder failure should only be diagnosed after a full leak and bleeding sequence has been completed.
Soft Pedal Diagnostic Sequence
Suspension Wear
- Check reservoir fluid level
- Inspect lines, unions, and bleed nipples for leaks
- Check rear caliper seals
- Bleed all four corners
- Assess the master cylinder only after the above steps
Freelander 1 Suspension: Front Lower Arms, Drop Links & Rear Bushes
The Freelander 1 uses MacPherson struts at the front and a trailing arm / multi-link arrangement at the rear. Front lower arm bushes are one of the highest-frequency wear items on the vehicle.
Front Lower Arm Bushes
Common symptoms include vague steering, wandering under load, increased effort on turn-in, and clunking over uneven surfaces. Replace as an axle pair.
Drop Links
Worn anti-roll bar drop links produce knocking over bumps at low speed. Any noticeable end play is reason for replacement.
Rear Bushes & Corrosion
Rear trailing arm bush wear causes instability under braking and cornering. On coastal vehicles, inspect rear mounting points carefully for structural corrosion before quoting bush-only repairs.
| Fastener | Torque |
|---|---|
| Front lower arm to subframe (front bush bolt) | 90 Nm |
| Front lower arm to hub carrier (ball joint pinch bolt) | 55 Nm |
| Anti-roll bar drop link (both ends) | 50 Nm |
| Rear trailing arm bush bolt | 90 Nm |
Freelander 1 Maintenance Intervals & Torque Reference
| Component | Interval | Specification |
|---|---|---|
| Engine oil & filter (TD4) | 15,000 km or 1 year | 5W-30 ACEA C3 |
| Engine oil & filter (K-Series) | 10,000 km or 1 year | 10W-40 semi-synthetic |
| Brake fluid | 2 years | DOT 4 / ISO 4925 Class 4 |
| Coolant (all variants) | 3 years / 60,000 km | OAT long-life antifreeze |
| IRD oil | 60,000 km or 4 years | API GL-4 75W-90, 0.85 litres |
| Gearbox oil (manual) | 60,000 km | GL-4 75W-90 |
| Spark plugs (K-Series) | 30,000 km | Iridium recommended, OE gap 0.8 mm |
| Air filter | 30,000 km | Confirm by VIN / model year |
| Timing belt + water pump (TD4) | 120,000 km or 10 years | Replace together |
| Cam belt + tensioner + idler (K-Series) | 100,000 km or 5 years | Replace all three components |
| Fastener | Torque |
|---|---|
| Wheel bolts (all variants) | 140 Nm |
| K-Series head bolts | 20 Nm, then 45 Nm, then +180°, then +45° |
| Sump plug (TD4) | 25 Nm |
| Sump plug (K-Series) | 20 Nm |
| IRD filler / level plug | 35 Nm |
| Front brake caliper guide bolts | 35 Nm |
| Front brake caliper bracket bolts | 85 Nm |
Freelander 1 Window Regulator Failure
The Freelander 1 uses a cable-drum window regulator integrated with the window motor. Failure usually appears as a glass drop into the door, intermittent movement, or grinding and clicking during operation.
Failure Mode
Nylon cable guides fracture and allow the cable to jump the drum. The motor may continue to run, but the glass does not move. The driver's door is the most common failure point.
Diagnostic
If the motor runs but the window does not move, the regulator cable or guide has failed. If the motor is silent with confirmed supply voltage at the connector, the motor has failed.
Parts Note
FAQ
Complete regulator and motor assembly replacement is generally the most practical repair route. Driver and passenger side assemblies are not interchangeable, so confirm door position before ordering.
Freelander 1 Common Faults
What is the most common reason a Freelander 1 is written off?
The most common terminal failures are a seized Viscous Coupling Unit (VCU) that destroys the Intermediate Reduction Drive (IRD), or catastrophic overheating in the 1.8 K-Series engine. Both are largely avoidable with proper tyre matching and cooling system maintenance, but once the damage is done, repair costs often exceed the vehicle's value.
Can I run my Freelander 1 in 2WD mode by removing the propshaft?
Many owners do this as a temporary workaround for a failing VCU, but it is not a proper long-term solution. The Freelander 1 was designed as a permanent 4WD system. Removing the propshaft changes load paths in the drivetrain and may accelerate IRD wear. It may also affect insurance or roadworthiness requirements depending on market.
How do I know if my TD4's loss of power is the turbo or the EGR?
Turbo failure is more likely to involve a high-pitched whine and oil-related smoke. EGR fouling usually causes black smoke, rougher low-speed running, and poor low-end response that may improve at higher RPM. Before replacing major components, always inspect vacuum hoses and intercooler hoses for splits or leaks.
Why does my Freelander 1 clunk when I reverse on full steering lock?
This is a classic sign of a stiffening or locking VCU. As the internal fluid ages, the coupling loses its ability to accommodate speed difference between axles during tight turns. The resulting drivetrain wind-up overloads the CV joints and IRD, causing clunking or binding.
Is the 1.8 K-Series head gasket failure inevitable?
No. The K-Series is sensitive, but failure is usually triggered by a secondary cooling fault. Replacing weak cooling components, using an MLS gasket, and maintaining the system properly significantly reduces the risk.
