Land Rover Gearbox & Transferbox Parts

External Circlip for the R380 manual gearbox selector yoke. The circlip locates in the groove on the selector yoke and retains it in position with...

Seat yoke

O-Ring - Gear Change Selector seals the gear change selector shaft where it enters the transmission housing, preventing lubricant leakage at the sh...

Gearbox Gasket seals the top cover to the main casing of the LT77 five-speed manual gearbox, forming an oil-tight joint between the top cover plate...

Front Cover Bolt - M10 flanged hex bolt used to secure the engine front (timing) cover. It also serves as a general-purpose fixing at engine and dr...

Flange Bolt - M10 x 35mm flanged hex bolt used at a range of driveline and engine mounting points, including bell housing, flywheel and clutch, tra...

Dowel is a precision locating pin used to align mating components in the drivetrain, such as the bell housing, gearbox casing and flywheel or drive...

Pinion Bearing - 35 × 68.5mm, a tapered roller bearing installed on the Constant Mesh Pinion shaft within the LT77, R380, and LT95 manual gearboxes...

Reverse lamp switch LT85 V8

Flange Bolt is an M8 x 35 mm bolt with an integral flange beneath the head. The flange spreads clamp load across the joint face and acts as a buil...

Taper Roller Bearing - the mainshaft bearing used in the LT77 and R380 five-speed manual gearboxes, located at the rear of the primary pinion where...

Bearing used across several Land Rover drivetrain assemblies: the LT230 transfer box, where it supports the high and low range gear; the LT95 gearb...

Bolt - 5/16" UNF x 3-3/4" A 5/16" UNF setbolt, 3-3/4" long, catalogued for use across several applications. Its uses include securing the timing/f...

Transmission Brake Drum for the transmission (hand) brake. Mounts to the transfer box rear output flange and houses the transmission brake shoes, ...

Gearbox Bearing for the R380 5-speed manual gearbox, measuring 35 × 72 mm. Fitted within the R380 transmission assembly, this rolling-element bear...

Transfer Box Lever Lock Nut used to secure the selector linkage at the transfer case. This half nut (thin profile locking nut) threads onto the sel...

Mainshaft Taper Roller Bearing supports the mainshaft at the 5th/reverse end of the R380 (and LT77) 5-speed manual gearbox. It carries the mainsha...

Clevis pin

Transfer Case Bottom Cover Gasket for the LT95 combined gearbox and transfer case. It seals the joint between the bottom cover and the transfer ca...

O-Ring - LT95 Gearbox seals the transfer shaft on the LT95 4-speed gearbox, which carries an integral transfer case, preventing oil leakage at the ...

O-ring

Gear Selector Ball End is the ball-joint pivot in the gear change selector linkage, connecting the selector rod to the transmission operating shaft...

Circlip - LT77 Selector Shaft for the LT77 5-speed manual gearbox. This circlip retains the selector shaft within the gear selector and shaft asse...

Transfer Box Output Shaft Mud Shield fitted at the output shaft oil seal of the LT230 transfer box. The shield sits over the output shaft ahead of...

Transfer Box Sealing Ring - Locking Pin A rubber O-ring that seals the locking pin where it enters the transfer box case. It seals the selector lo...

Heater Hose for the 200TDi engine cooling and heating circuit. This hose routes coolant from the engine cooling system to the cabin heater matrix,...

Oil Cooler Pipe - a rigid pipe in the automatic transmission's oil cooling circuit, carrying fluid between the gearbox and the transmission oil coo...

Dowel - Bell Housing Alignment in the gearbox/engine interface assembly. This dowel locates the bell housing accurately relative to the engine blo...

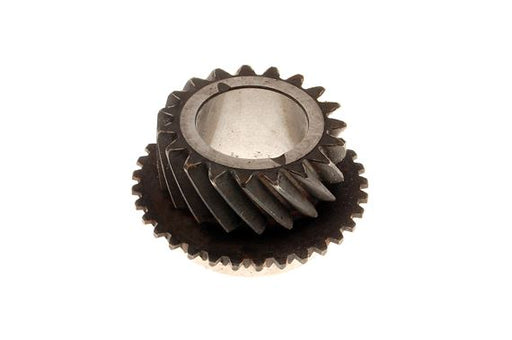

Mainshaft 5th Speed Gear for the LT77 and LT77S 5-speed manual gearbox. This gear is mounted on the mainshaft assembly and meshes with the corresp...

Filler and Level Plug for the V8 4-speed gearbox and for differential assemblies across a wide range of classic Land Rover models. Fitted at the s...

Gearbox Filter Plug for the LT77 five-speed manual gearbox. The plug closes the bore in the extension case that gives access to the gearbox oil fil...

Countersunk Screw for the Transmission Brake Assembly. The countersunk head sits flush within the mating surface, maintaining correct alignment and...

Circlip - Output Shaft Flange used within the transfer box output flange assembly to retain the output shaft bearing and associated components in p...

Oil Temperature Sender for the engine oil temperature gauge circuit. The sender threads into the oil gallery and carries a temperature-sensitive re...

Torque Converter Housing Cover Gasket for the automatic transmission bell housing. It seals the lower access cover on the torque converter housing...

O-Ring for the fluid suction pipe of the ZF four-speed automatic transmission. Seals the joint at the suction (pick-up) pipe that draws automatic ...

Layshaft Bearing for the LT77 and R380 5-speed manual gearbox fitted to the Defender, Discovery 1, Discovery 2, and Range Rover P38. The layshaft ...

Joint Washer - LT77 Front Cover seals the mating face between the front cover and the main casing of the LT77 5-speed manual gearbox. The washer p...

Layshaft Taper Roller Bearing supports the front of the layshaft in the manual gearbox. This is the grooved front bearing, sized 31.75 x 62.0 mm. ...

Magnetic Sump Plug for the ZF 4-speed automatic transmission. This drain plug seals the transmission oil pan at the drain point. Its magnetic tip ...

Gearbox Side Cover Gasket for the LT95 4-speed V8 gearbox. This gasket seals the side cover to the gearbox casing, preventing oil leaks from the ge...

Bolt - a hexagonal-head bolt with an M6 metric thread and a 30 mm length. A common general-purpose fastener used at fixing points across the vehicl...

Gear Lever Damper for the LT95 four-speed gearbox gear-change mechanism. This damping washer fits at the base of the main gear lever, absorbing vi...

Mainshaft Bearing supports the mainshaft within the LT230 transfer box, carrying the shaft's rotational loads and keeping it running true as drive ...

O-Ring is a sealing ring used within the ZF 4-speed automatic gearbox and the LT230 transfer box. This O-ring seals fluid passages or housing inte...

Flywheel Housing Stud for the 2.5L four-cylinder diesel engine. It secures the flywheel housing to the rear face of the engine, locating the housin...

Needle Bearing is an internal roller bearing used within the LT77 5-speed and R380 5-speed manual gearbox assemblies. Needle roller bearings of th...

Taper Roller Bearing for the front output shaft of the LT230 transfer box. Installed within the LT230 transfer case differential lock and output s...
