Land Rover Suspension and Steering System Overview

The suspension and steering system on a Land Rover or Range Rover does two jobs at once. It manages wheel motion across varied terrain, and it keeps the contact patch in the geometry the chassis was designed for. When either job slips, drivers notice it first through the steering wheel and through tyre wear patterns.

Vehicle use affects wear, but not in a fixed pattern. Heavy loads, towing, potholes, off-road contamination and unresolved air leaks all push wear into different parts. Model, suspension type, age and maintenance change the picture too, so diagnose by symptom rather than assuming a particular failure order.

This collection holds the replacement parts across Defender, Discovery, Range Rover, Freelander and Series models, with model-scoped fitment support where the system varies meaningfully between generations.

Browse Land Rover Suspension Parts by Category

The suspension, steering and axle system breaks down into nine part groups. Jump straight to the category that matches your job, or read the system overview below if you are diagnosing by symptom.

Springs and damping

Arms, bushes and joints

Steering, hubs and axle

Core Suspension and Steering Components

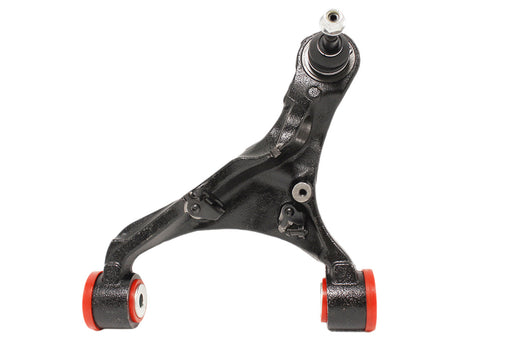

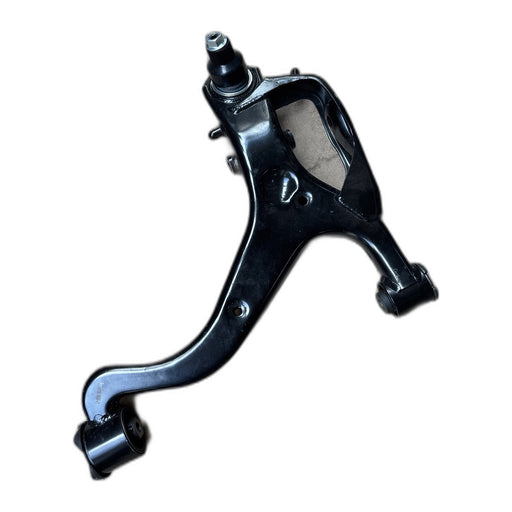

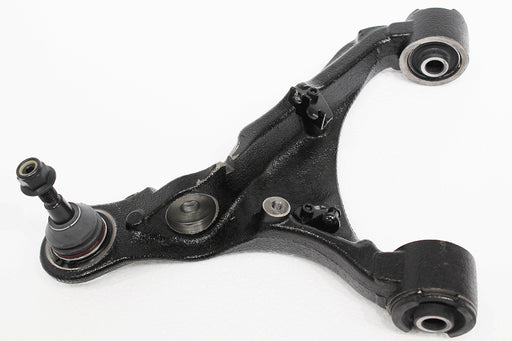

Control arms and wishbones

Control arms locate the wheel hub against the chassis and carry the bushes that absorb vibration and small geometry movement. On the double-wishbone front suspension layouts (Discovery 3 and 4, Range Rover L405 and L460, Range Rover Sport L320, L494 and L461), lower arm bush wear is a common issue. Drivers report a clunk during braking, during steering lock, or when the suspension loads under bumps. The Range Rover L322 uses a strut-type front instead, where the air strut, transverse link and compression link are the common service areas.

The decision when ordering is between pressed-bush replacement and a complete arm assembly. Pressed bushes cost less in parts but require the correct press equipment and a structurally sound original arm. An aged or corroded arm often justifies replacing the complete assembly on labour and reliability grounds.

Wheel bearing hubs

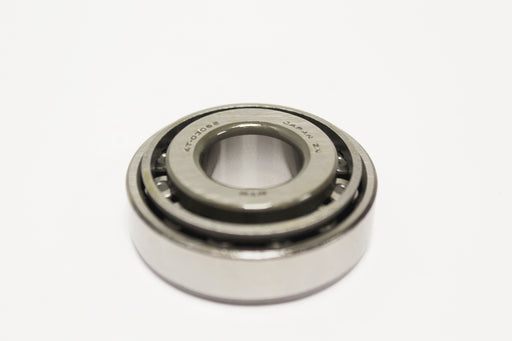

Wheel bearing construction varies by model, axle, build and VIN. Many later independent-suspension models use a bolt-on hub assembly where the bearing and hub are renewed as one unit, but others use a sealed bearing pressed into the carrier, and the front and rear can differ on the same vehicle (the Freelander 2 is a good example). Older platforms such as the Series, Defender Classic, Discovery 1 and Range Rover Classic use serviceable opposed taper roller bearings that can be cleaned, re-greased and adjusted. Check how your bearing is supplied before ordering.

A failing hub or bearing typically presents as a hum that rises with road speed and changes character on a steering input. Where the vehicle uses a bolt-on unit, replacement is straightforward because the assembly unbolts from the upright; where the bearing is pressed into the carrier it needs pressing out and in. See the wheel bearings and seals collection for the full range.

Steering racks, tie rod ends and linkage

The steering rack converts hand-wheel rotation into linear motion at the tie rod ends. Tie rod ends and inner ball joints wear gradually and can produce play, vague steering and uneven tyre wear before they produce noise. Rack-internal wear and seal leaks tend to appear as excess play found during alignment work, where it cannot be corrected by toe adjustment alone.

Suspension bushes and ball joints

Bushes and ball joints can fail on their own, a torn boot, a seized joint or a perished bush is enough, but they often wear alongside the parts around them. Ordering a single ball joint without inspecting the wishbone bush, the anti-roll bar drop link and the opposite side is a common rework trigger. Inspect the adjacent parts while access is open and replace what is worn, scoped to one axle at a time.

Air Suspension on Discovery 3, Discovery 4 and Range Rover Models

Air suspension is the most complex subsystem in this category and the highest-value replacement decision. It applies to:

• Discovery 3 parts: air suspension on the majority of variants, coil-spring base trim on a minority
• Discovery 4 parts: four-corner air suspension as standard
• Range Rover L405 parts: four-corner air suspension as standard
• Range Rover Sport L320 parts: four-corner air suspension as standard

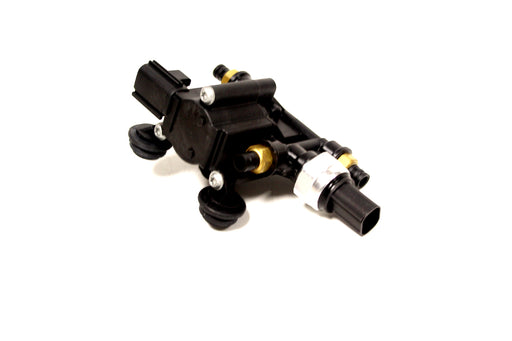

The parts that most often need attention on an air system are the air springs and the compressor. Air springs perish and split at the fold points in the rubber bladder and start to leak. A compressor then overworks trying to keep up with that leak and eventually wears out, which is why an unresolved air leak so often takes the compressor with it. Air lines, the valve block and ride height sensors can also fault, though sensors and control electronics frequently last the life of the vehicle. Diagnose each part on its own rather than replacing to a fixed order.

For diagnosis depth on the L320 specifically, see the L320 air suspension fault guide. The blog covers symptom-to-component mapping; this page lists the parts.

Before You Order

Suspension parts are returned more often than most categories because fitment varies more than buyers expect. Five checks before ordering save the most labour:

1. Air or coil: the Discovery 3 shipped in both air and coil, and aftermarket coil conversions are common on the L320, L322 and other air models. The Range Rover L322 left the factory on four-corner air, so a coil-sprung L322 has been converted. Confirm from the VIN-linked build record or by looking at the spring at the wheel before ordering.
2. Bearing type: later independent-suspension models may use a bolt-on hub unit or a sealed bearing pressed into the carrier, and front and rear can differ. Series and Defender Classic use serviceable opposed taper roller bearings. Confirm how your bearing is supplied before ordering.
3. Bush replacement scope: when ordering control arms or wishbones, decide upfront whether to swap the bushes or replace the complete arm. Pressed-bush replacement needs the right press and a sound arm. Aged arms often justify the complete assembly.
4. Replace in pairs where it matters: shock absorbers are worth doing as an axle pair so damping stays even. Air springs are usually worth pairing when both are the same age, though it is not always essential. Ride height sensors and drop links are replaced on the side that has failed, so inspect before doubling up.
5. Alignment after geometry work: wishbones, tie rod ends and lower arms set alignment geometry. Book the alignment slot for the same time the parts arrive.

Replace Together Logic

Several parts share labour access, so when one is off it is worth inspecting and, if worn, renewing its neighbour in the same visit. This is about inspection and shared labour, not automatic replacement.

• Lower ball joints and lower wishbone bushes on the Discovery 3 and 4 share access, so inspect the bush while the joint is out.
• Front wheel bearing hub and the ABS wheel speed sensor on the Freelander 2. Wheel speed is read from a magnetic encoder built into the bearing rather than a separate tone ring, and the sensor probe can seize in the knuckle and break on removal, so it is worth having one ready.
• Air springs and air supply lines on the air models. Line connectors perish, so check them while a spring is off.

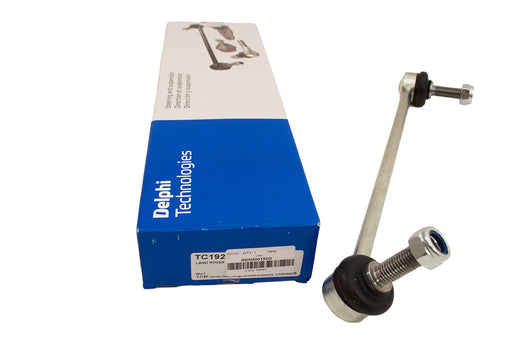

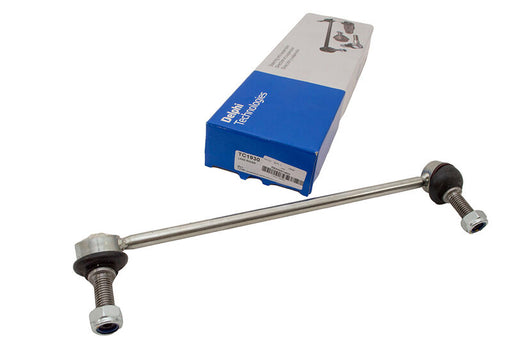

• Anti-roll bar drop links and anti-roll bar bushes wear under the same load, so inspect both.

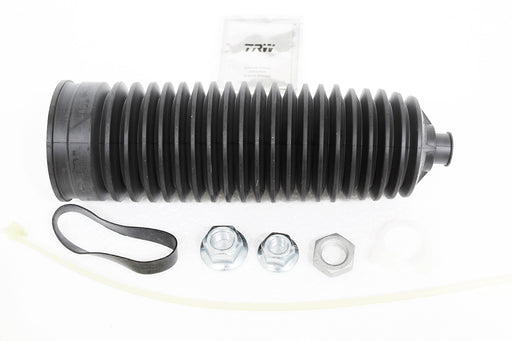

• Tie rod end and steering rack gaiter. With the tie rod end off, a split gaiter is cheap to renew.

Access matters too. On some models the lower arm runs close to the brake hose and caliper fixings, so it is worth checking the nearby brake parts while access is open. Incorrect alignment after suspension work can also cause rapid or uneven tyre wear.

For owners replacing ball joints, the ball joint failure guide covers the test procedure and the visual checks before ordering replacements.

Common Suspension Mistakes to Avoid

These are the common mistakes behind returns and repeat workshop visits on suspension orders.

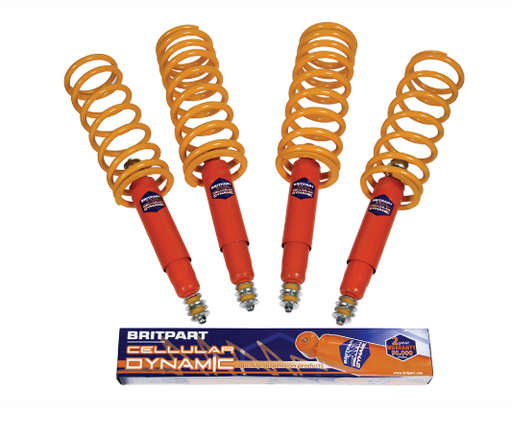

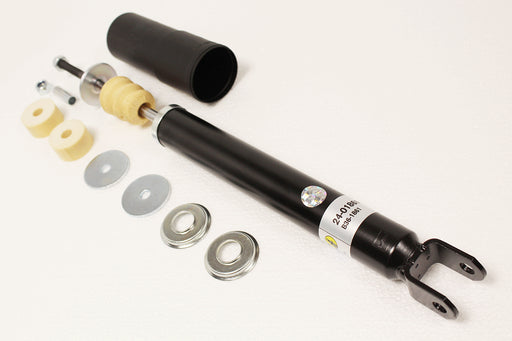

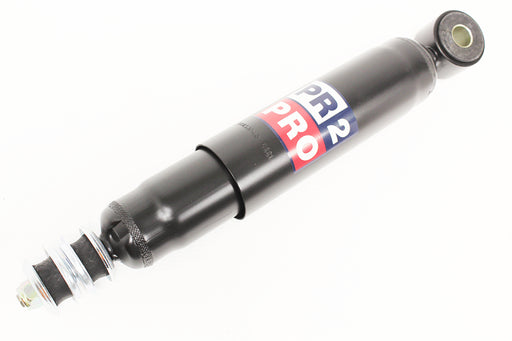

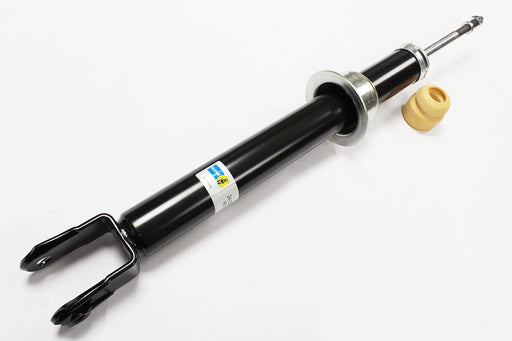

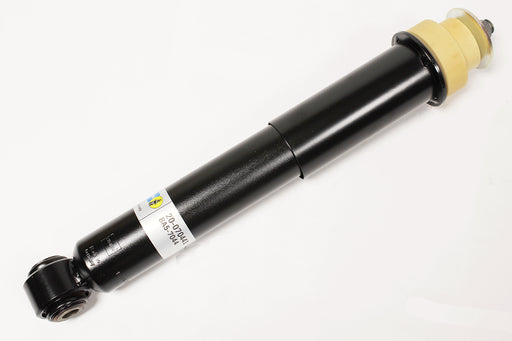

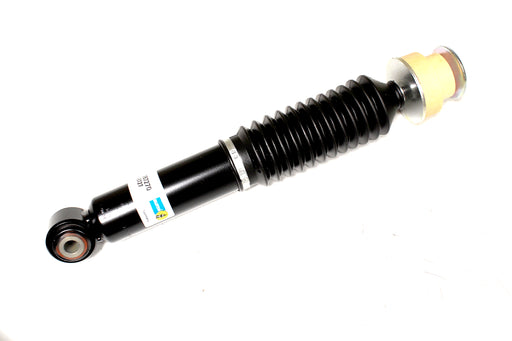

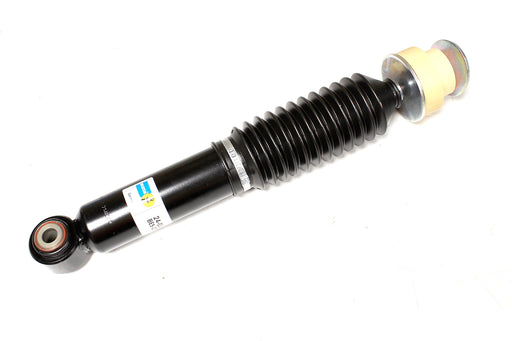

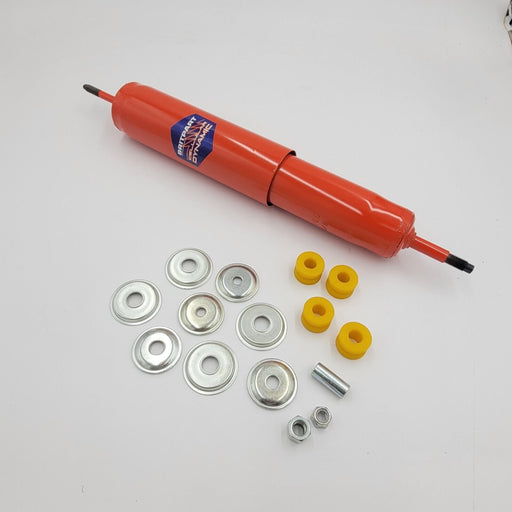

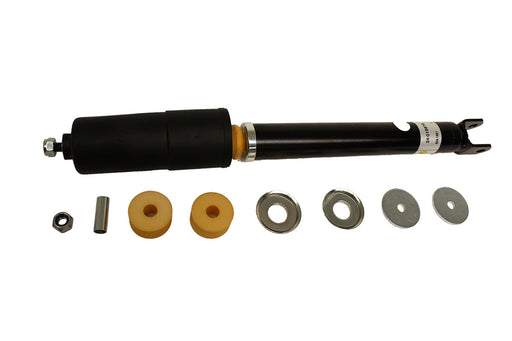

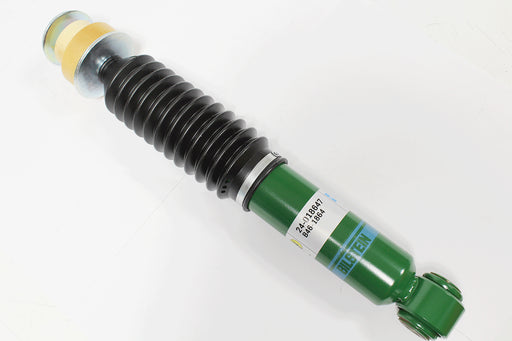

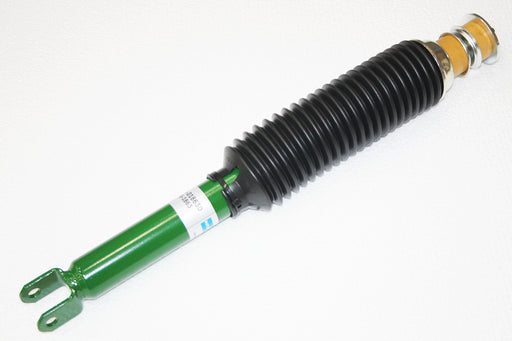

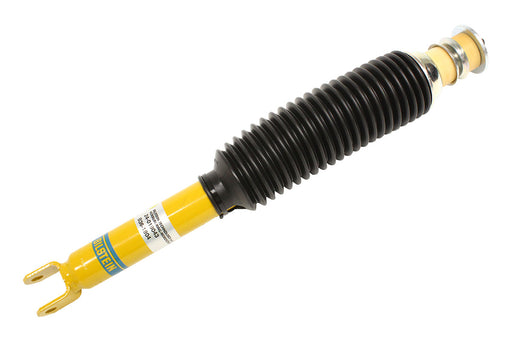

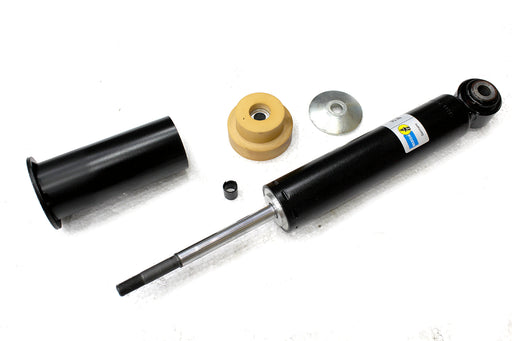

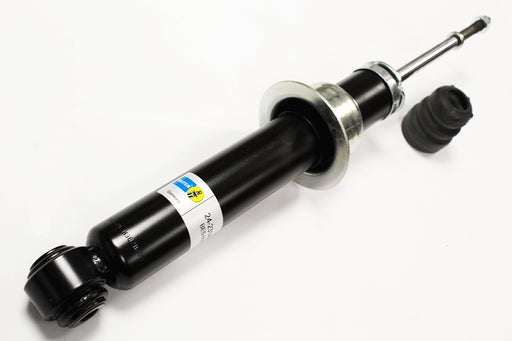

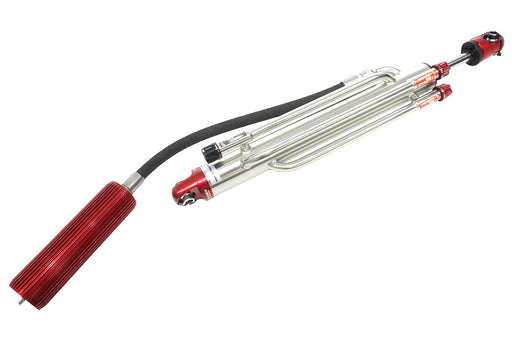

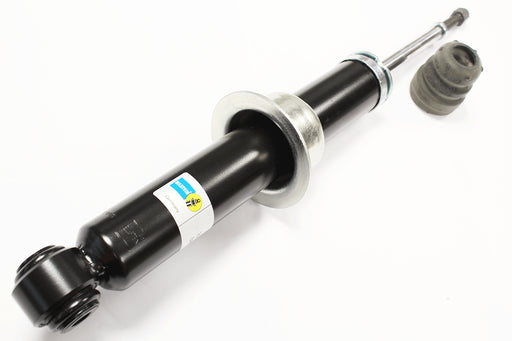

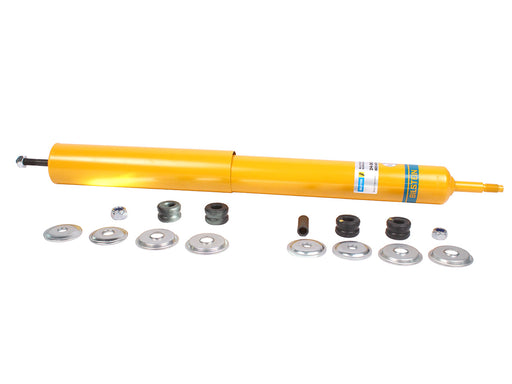

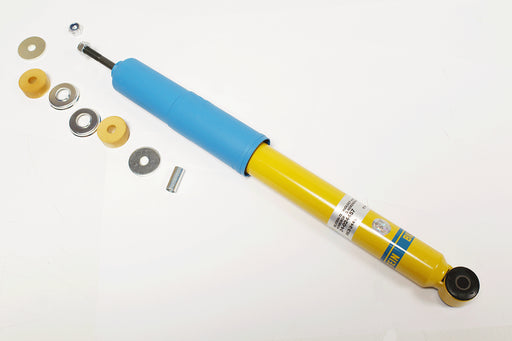

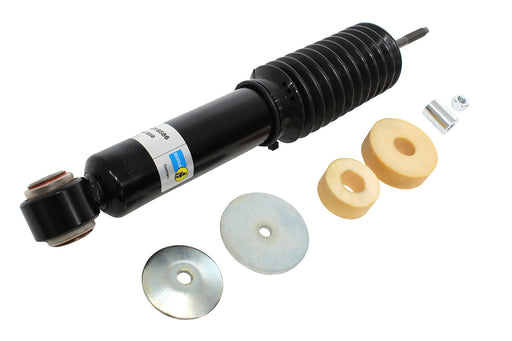

1. Replacing one shock instead of a pair. Uneven damping across an axle affects handling and stability, so replace shocks as an axle pair.
2. Replacing an arm or joint but leaving the worn parts around it. New components next to old bushes and joints can leave or reintroduce the original symptoms, so inspect the neighbours before you finish.
3. Mixing air spring specifications across an axle. Match specification and, ideally, manufacturer left to right so both sides behave the same.
4. Skipping the alignment check after geometry work. Replacing arms, tie rods or wishbones moves the geometry. Check alignment whenever a geometry-setting part is renewed or the repair disturbs the knuckle or adjustment points.
5. Ordering the wrong hub assembly for the vehicle generation. Discovery 3 and Discovery 4 share the L319 chassis code but differ in hub specifications between mid-cycle production runs. Confirm by chassis number, not by year alone.

Buying Guidance

Correct fitment by model, year and variant is the deciding factor on suspension orders. Land Rover and Range Rover models were produced with multiple suspension configurations across trim levels and markets, and the parts are rarely cross-compatible.

Budget Parts lists parts by model and variant. If the original build configuration is in doubt, the VIN can be used to confirm whether the vehicle left the factory on air or coil suspension, which bearing type, and which steering rack variant.

For fitment questions on a specific vehicle, contact the team with the VIN before ordering. Workshops and trade buyers can request volume pricing and account support, see our trade and volume discount policy.

Technical Guides

Four blog guides on Budget Parts cover the diagnostic and failure-pattern depth that this commercial collection does not. Use the relevant guide alongside the parts list to confirm what to order.
