Parts for all Range Rover generations, from the Classic to the current L460. This collection covers the full model family including Range Rover Sport L494, Evoque, and Velar. Orders are fulfilled from the Netherlands and ship across the EU. Use the generation filters above or select your model below to find parts that fit your exact chassis.
Swivel Pin Retaining Bolt A fixing bolt for the front axle swivel pin housing. It secures a swivel pin to the swivel pin housing, retaining the pi...
View full detailsEngine Stud for the Rover V8 petrol engine, measuring 5/16" x 2-1/8" with a UNC/UNF dual thread form. The coarse UNC end threads into the engine c...
View full detailsSealing Washer is a copper joint washer used in multiple engine and ancillary applications across the Land Rover range, including as a sealing wash...
View full detailsHose Clip for securing flexible hoses to pipes and stubs throughout the Land Rover. Tightening the clip compresses the hose onto the stub to form a...
View full detailsInstrument Bulb Holder Assembly is a 1.4W instrument panel bulb supplied complete with its integrated holder, forming part of the instrument cluste...
View full detailsBolt - Lower Steering Shaft UJ is the M8 x 35 mm clamp bolt that secures the universal joint at the lower steering shaft, within the steering colum...
View full detailsLand Rover Oval Name Badge - exterior identification emblem carrying the Land Rover name in gold lettering on a green ground. Fitted to the front ...
View full detailsRear Crossmember is the rearmost transverse member of the vehicle chassis, closing and tying together the two main longitudinal chassis rails at th...
View full detailsFastener - black plastic drive-type (fir tree) push-in fastener used throughout the vehicle to secure body trim panels, interior linings, underbonn...
View full detailsAir Cleaner Ring for the Range Rover L322 intake assembly. This sealing ring fits within the air cleaner housing on the BMW M62 B44 4.4-litre V8 p...
View full detailsWheel Centre Cap - set of four alloy wheel centre caps in Titan Silver. The centre cap clips into the hub bore of an alloy wheel, covering the hub...
View full detailsClip is a retaining clip in the front windscreen wiper linkage. It secures the wiper motor and linkage assembly, holding the linkage components to...
View full detailsBrake pipe clip
Oil Cooler Gasket for the AJ-Series V8 petrol engine, sealing the oil cooler and filter housing to the cylinder block. This gasket forms the oil-t...
View full detailsEGR Cooler Filter for the low-pressure exhaust gas recirculation circuit of the 2.0L I4 Ingenium diesel engine. The low-pressure EGR system draws ...
View full detailsWasher Fluid Level Sensor for the windscreen washer system. The sensor fits into the washer fluid reservoir and monitors the volume of fluid remai...
View full detailsMagnetic Oil Drain Plug for the engine oil sump on the 2.0L Ingenium (AJ200/AJ20) four-cylinder petrol and diesel engines. The plug seals the drai...
View full detailsOil Filter Gasket Kit for the engine oil filtration circuit of the 2.0L Ingenium (AJ200) engine, renewed with the oil filter element at each servic...
View full detailsWiper Arm is the windscreen wiper arm that carries the wiper blade across the windscreen. It mounts to the wiper linkage spindle and transfers the...
View full detailsUpper Front Suspension Arm Ball Joint The upper ball joint forms the top pivot between the front upper suspension arm and the wheel knuckle, holdi...
View full detailsCoolant Hose forms part of the heater line within the engine cooling system, routing coolant between the engine and the heater matrix. Supplied co...

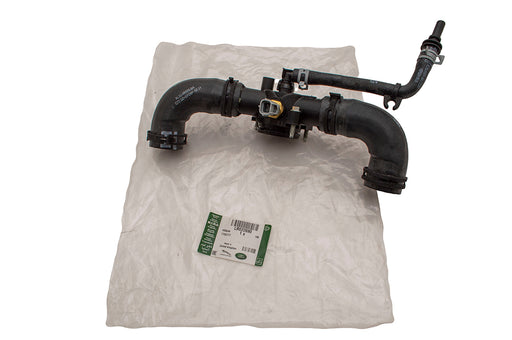

View full detailsWater Outlet Connection (Upper) for the 4.4L DOHC V8 turbo-diesel (TDV8) engine. Part of the thermostat and coolant housing assembly, it carries co...
View full detailsFirst Gear - 1st driven gear for the LT77 five-speed manual gearbox. Mounted on the mainshaft, it meshes with its counterpart on the layshaft to p...

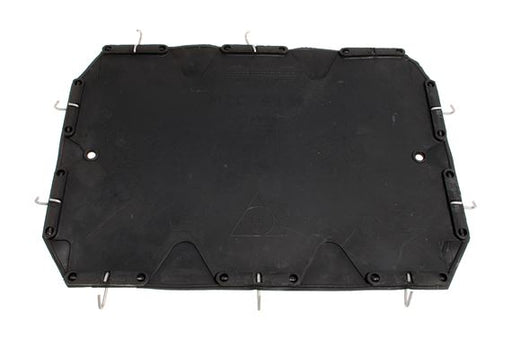

View full detailsEarly Seat Diaphragm Door Only - Discovery 1 4
Primary Fuel Filter for the diesel fuel supply system of the 2.0L I4 diesel (AJ200 / AJ20D4 / AJ21D4) engine. The primary filter separates water a...
View full detailsRivet Screw - 6.3 x 22mm for securing panels and trim on Land Rover vehicles. This scrivet-type fastener combines a screw thread with a expanding ...
View full detailsDoor Handle Cap - LH is the left-hand end cap for the exterior front door handle assembly, incorporating the lock barrel aperture. The cap forms t...

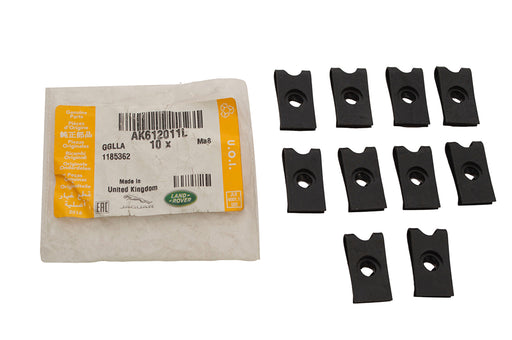

View full detailsSpring Nut A clip-on spring-steel fastener, also known as a speed nut, used across body, grille and chassis fittings. It slides over a panel edge ...

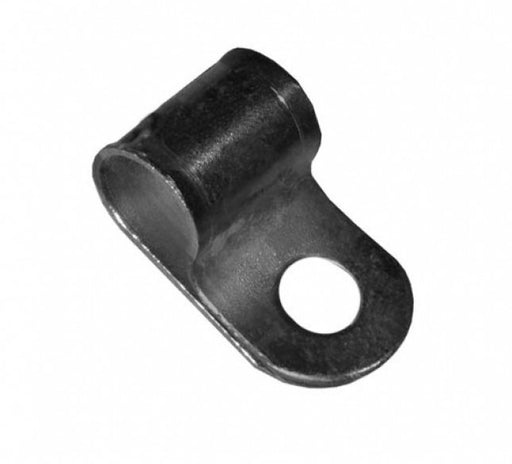

View full detailsP-Clip - 19/64" x 3/8" is a pressed-steel P-profile retaining clip used to route and secure fuel lines, brake pipes, or wiring looms against a chas...
View full detailsLayshaft Shim for the LT77 five-speed manual gearbox, located at the layshaft (countershaft) front cover and bearing. This is a selective shim use...
View full detailsFuel Filler Cap Insert - a trim insert fitted at the fuel filler cap within the exterior fuel filler assembly.
Diesel Fuel Filter Plug Seal - a sealing ring for the drain plug on the diesel fuel filter and sedimentor. It seals the drain/bleed plug against t...

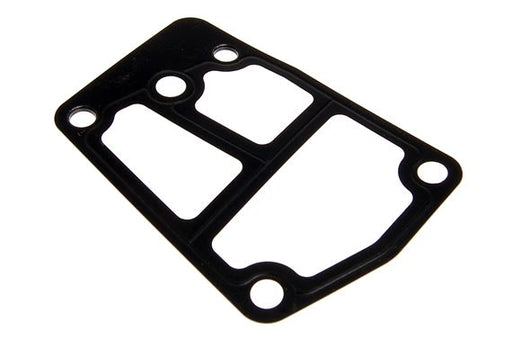

View full detailsOil Filter Housing Gasket seals the oil filter housing cover within the engine oil filtration assembly. It forms the joint between the filter hous...
View full detailsCross Brace forming part of the bonnet slam panel assembly at the front of the engine bay, providing structural reinforcement to the slam panel fra...
View full detailsPanhard Rod Bush for the front suspension lateral location assembly. This rubber bush is pressed into the Panhard rod eye and provides the complia...
View full detailsCap Reservoir Br.m.cylinder

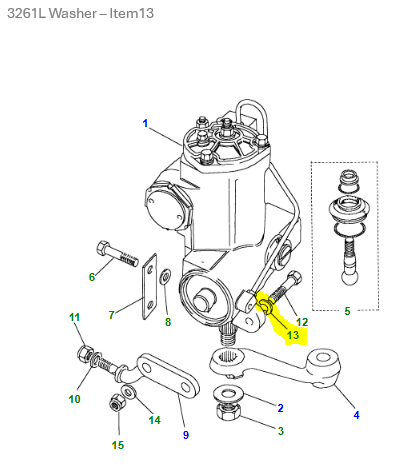

Plain Washer - 7/16" used in the power steering box assembly. This flat washer is used within the steering hydraulic assembly at the power steerin...
View full detailsCountersunk Screw - Swivel Pin Housing Countersunk fixing screw used in the front axle swivel pin housing assembly. Its flush countersunk head all...
View full detailsDoor Hinge - Upper for the left-hand front door on the Range Rover Classic, mounting at the A-post (windscreen pillar). This is the upper of the t...

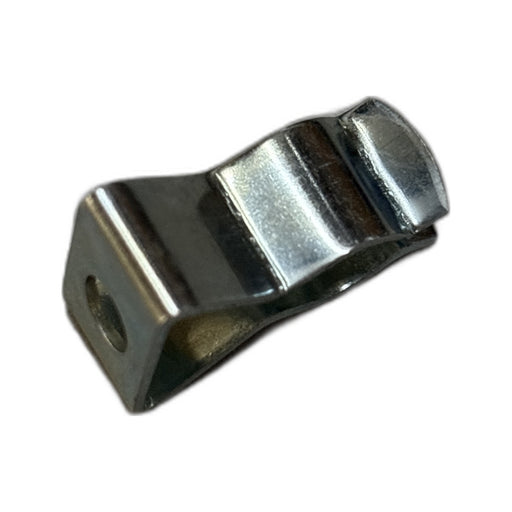

View full detailsClip - a retaining clip within the vehicle body hardware, used to secure and locate a fitted component in position.
Sill Finisher is an exterior body trim that runs along the side sill (rocker panel) beneath the doors. It covers and finishes the lower body sill ...

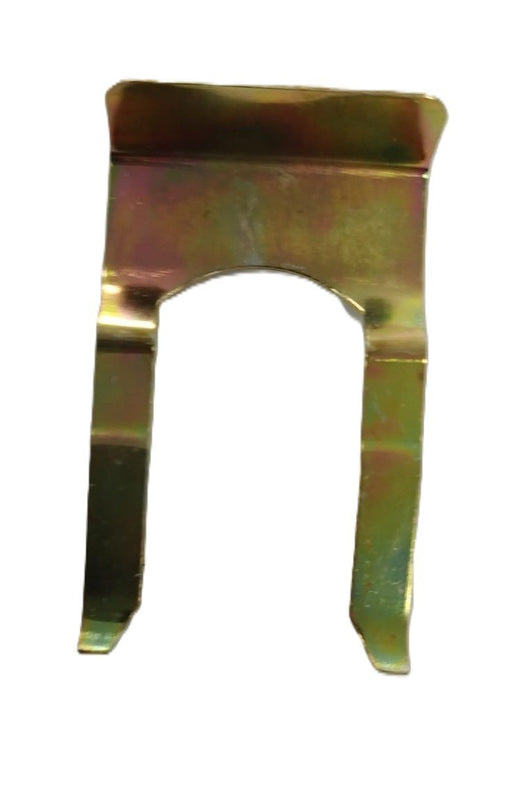

View full detailsRetaining Clip used to hold the lock barrel in place. Supplied as a single clip.
Cruise Control Resume / Cancel Switch for the steering column cruise control assembly. Mounts on the steering column stalk and provides the Resume...
View full detailsPlenum Hose is a moulded hose serving the plenum chamber of the V8 EFI petrol induction system. It forms part of the plenum chamber assembly on th...
View full detailsBracket for mounting the mudflap to the rear body panel of the Range Rover Classic, securing the mudflap in position at the rear wheelarch to defle...
View full detailsCamshaft Bolt for the Rover V8 engine, securing the camshaft sprocket to the front of the camshaft. This M12 x 30 mm bolt retains the camshaft dri...

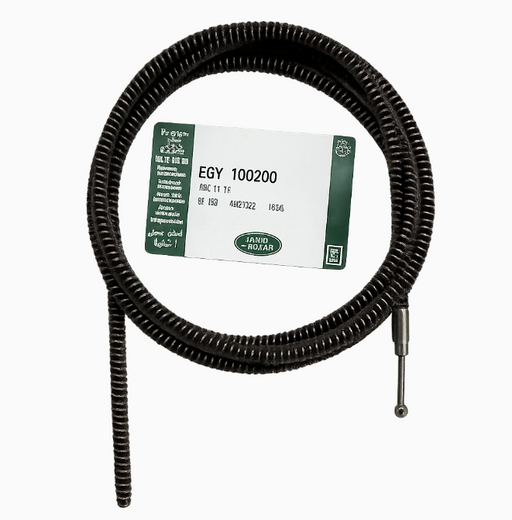

View full detailsSunroof Cable — drive cable for the sliding sunroof mechanism. The cable transmits drive from the sunroof operating mechanism to the panel, moving...
View full detailsFuel Pipe for the 200 TDi diesel fuel delivery circuit. Connects the fuel filter outlet to the injection pump inlet, carrying filtered fuel to the...
View full detailsThe Range Rover line covers four distinct sub-brands and twelve named generations stocked at Budget Parts: the full-size Range Rover (Classic, P38, L322, L405, L460), the Range Rover Sport (L320, L494, L461), the Range Rover Evoque (L538, L551), and the Range Rover Velar (L560). Each is a structurally distinct vehicle on a different platform with different engines, electronics, and components. Ordering by model name alone is rarely enough; chassis code and year range are what actually determine fitment.
If you are not certain which generation you own, the 17-digit VIN is the fastest path to confirmation. The VIN appears on the door jamb plate, the windscreen base, and the V5C registration document. The tenth character encodes the model year on all post-1980 vehicles. If you need help decoding your VIN, contact the Budget Parts team directly with the full number and we will confirm the correct generation and chassis code.
The table below covers the full Range Rover family stocked on this site. Use it to identify your chassis code and confirm your production year range before selecting a generation-specific collection from the grid below.
| Generation | Chassis Code | Years | Platform Notes |
|---|---|---|---|
| Range Rover Classic | (no L-code) | 1970 to 1996 | Body-on-frame. 3.5 to 4.2 Rover V8 petrol; 2.4 / 2.5 VM diesel from 1986; 200Tdi from 1989; 300Tdi from 1994 |
| Range Rover P38 | P38A | 1994 to 2001 | Body-on-frame. Rover V8 4.0 and 4.6 petrol; BMW M51 2.5-litre turbodiesel I6 |
| Range Rover (Third Gen) | L322 | 2002 to 2012 | First monocoque Range Rover. BMW engines pre-2006, Jaguar AJ family from 2006, AJ133 V8 + 4.4 TDV8 from 2010. ZF 6HP, ZF 8HP on 4.4 TDV8 from MY2010 |
| Range Rover (Fourth Gen) | L405 | 2013 to 2022 | First production 4x4 with all-aluminium monocoque. 3.0 TDV6 / SDV6, 4.4 SDV8 diesel, 5.0 AJ133 V8 petrol, 2.0 Ingenium P400e PHEV from MY2019, 3.0 Ingenium I6 MHEV from MY2020 |
| Range Rover (Fifth Gen) | L460 | 2022 to present | MLA-Flex platform. 3.0 Ingenium I6 MHEV diesel and petrol, 4.4 BMW V8, P440e and P510e PHEV (2022-2023), P460e and P550e PHEV (2024+) |
| Range Rover Sport (First Gen) | L320 | 2005 to 2013 | Integrated Body Frame (IBF) platform shared with Discovery 3, not L322. Air suspension standard. 2.7 / 3.0 TDV6, 3.6 TDV8, 4.2 / 5.0 V8 petrol |
| Range Rover Sport (Second Gen) | L494 | 2013 to 2022 | JLR D7u aluminium platform shared with L405. 3.0 TDV6 / SDV6, 4.4 SDV8 diesel, 5.0 V8 petrol, P400e PHEV from MY2018 |
| Range Rover Sport (Third Gen) | L461 | 2022 to present | MLA-Flex platform shared with L460. 3.0 Ingenium I6 MHEV, P440e and P510e PHEV, 4.4 BMW V8 (P530) |
| Range Rover Evoque (First Gen) | L538 | 2011 to 2019 | D8 / LR-MS platform. Ford-derived engines pre-2015, JLR Ingenium from 2015. Haldex AWD on four-wheel-drive variants |
| Range Rover Evoque (Second Gen) | L551 | 2019 to present | JLR PTA (Premium Transverse Architecture). All-Ingenium engine lineup with 48V MHEV. P300e PHEV from MY2020 |
| Range Rover Velar | L560 | 2017 to present | JLR D7a aluminium platform shared with Jaguar F-Pace. Ingenium I4 and I6 engines including D300 V6 diesel (pre-2020) and 3.0 MHEV inline-six (from 2020) |
Production years, chassis codes, and platform designations are aligned with Land Rover's published technical and product documentation. For Range Rover model history, generation specifications, and official press materials, the authoritative source is the Land Rover Media Centre.
Each generation has its own parts collection with chassis-specific fitment, engine variants, and quality grades. Select your generation below to filter to the parts that fit your vehicle.
Body-on-frame original from 1970 to 1996. Rover V8 petrol, VM diesel, 200Tdi and 300Tdi diesel variants.
Range Rover Classic parts →P38A chassis, 1994 to 2001. Rover V8 4.0 and 4.6 petrol, BMW M51 2.5 diesel.
Range Rover P38 parts →Third-generation flagship, 2002 to 2012. BMW M62 / M57 early build, Jaguar AJ family from 2006, AJ133 V8 + 4.4 TDV8 late.
Range Rover L322 parts →Fourth-generation, 2013 to 2022. First all-aluminium monocoque, full diesel and petrol range plus P400e PHEV.
Range Rover L405 parts →Current fifth-generation, 2022 onwards. MLA-Flex platform. Ingenium I6, BMW V8, P440e and P510e PHEV.
Range Rover L460 parts →First-generation Sport, 2005 to 2013. IBF platform shared with Discovery 3 (not the L322). Air suspension standard.
Range Rover Sport L320 parts →Second-generation Sport, 2013 to 2022. D7u aluminium platform shared with the L405. TDV6, SDV8, and P400e PHEV.
Range Rover Sport L494 parts →Current third-generation Sport, 2022 onwards. MLA-Flex platform shared with L460. PHEV and V8 variants.
Range Rover Sport L461 parts →Evoque family covering both L538 (2011-2019) and L551 (2019 onwards). Select your generation on the Evoque collection page.
Range Rover Evoque parts →First-generation Evoque, 2011 to 2019. D8 / LR-MS platform with Haldex AWD on 4WD variants.
Range Rover Evoque L538 parts →Second-generation Evoque, 2019 onwards. PTA platform, all-Ingenium with 48V MHEV.
Range Rover Evoque L551 parts →L560 mid-size derivative, 2017 onwards. D7a platform shared with Jaguar F-Pace.
Range Rover Velar parts →Most Range Rover parts are chassis-specific. A part that fits an L322 will not fit an L405 or an L460. A part that fits a Range Rover Sport L494 will not fit a Sport L320 or Sport L461. Two reliable confirmation methods exist.
The first is your 17-digit VIN. Position 10 identifies the model year on all post-1980 Land Rover and Range Rover vehicles, and positions 4 through 8 encode the vehicle descriptor section (engine, transmission, drive type, body style). A Land Rover dealer or authorised VIN decoder can return the full build specification from this string.
The second is your engine code, visible on the engine identification plate. Land Rover engine codes such as 306DT, 276DT, AJ133, M62, M57, and AJ20 each map to specific generations and production phases. The generation table above lists the engine families used on each chassis code.
If you are diagnosing a fault and need to confirm whether your vehicle is affected by a known issue before selecting parts, the Technical Guides section below links to fault-specific articles for the generations most prone to documented service issues.
Parts CategoriesThe collections below cover specific component categories across the Range Rover family. They are useful when you are ordering by component type (for example, an air suspension compressor or a brake disc set) and already know your chassis-specific part number. For chassis-fitment guidance, always cross-reference against your generation-specific collection above.
Air struts, shock absorbers, height sensors, wishbones, bushings, and EAS components across all Range Rover generations.
Suspension parts →Discs, pads, calipers, sensors, brake lines and EPB-compatible components for Range Rover and Range Rover Sport.
Brake parts →Gaskets, seals, timing components, EGR parts, and ancillaries for BMW, Jaguar, Ford, and JLR Ingenium engine families.
Engine parts →Thermostats, coolant pumps, radiators, hoses, and Y-piece replacements for the 5.0 V8 and other Range Rover variants.
Cooling parts →Sensors, relays, switches, ECU components, door modules, and lamp assemblies across all generations.
Electrical parts →Filter kits, oil change packages, and routine service bundles for Range Rover petrol and diesel engines.
Service kits →Every product listing on this site carries a quality grade. The grade describes where the part was made and which channel it travelled through to reach the warehouse. All three grades are stocked across most generation collections.
Genuine Land Rover parts are supplied through the official Jaguar Land Rover distribution network. They carry the Land Rover part number, Land Rover packaging, and full traceability to the JLR supply chain. Choose Genuine for vehicles still under manufacturer warranty, repairs requiring official parts for compliance or insurance reasons, and concours-grade restoration where original packaging matters.
OEM parts are produced by the same component supplier that manufactures the Genuine part, but sold outside the JLR distribution channel. The physical component is frequently identical to the Genuine version, often with a different box and no Land Rover part number on the label. Choose OEM for cost-effective repairs where original specification quality matters without the official-channel markup. Independent workshops working on vehicles outside warranty most often choose this grade.
Aftermarket parts are independently manufactured alternatives. Quality varies by supplier, so each Budget Parts aftermarket listing identifies the manufacturer where known. Choose aftermarket for older vehicles where Genuine parts may no longer be available, non-critical components, or budget-led repairs. The product description notes any relevant fitment or application limitations.
Each generation collection (L322, L405, L460, Sport L320, Sport L494, Evoque, Velar) shows the grade per listing and lets you filter by quality tier from the left-hand panel.
EU Stock and DispatchBudget Parts holds stock for the full Range Rover line at its warehouse in The Hague and dispatches across all EU member states. Norway, Switzerland, and other European non-EU destinations are also served. VAT is handled correctly at checkout for EU customers, and EU VAT-registered businesses can apply for reverse-charge invoicing through the wholesale portal.
Independent Land Rover workshops, multi-vehicle owners, and EU trade buyers can register a wholesale account for trade pricing, account-based credit terms, technical support from the Budget Parts team, and direct VIN-level fitment confirmation before ordering. Registration is available through the wholesale login page.
Technical GuidesThe articles below are published technical guides relevant to Range Rover owners and workshops. They provide diagnostic depth and component context that supports, but does not duplicate, the parts collections linked above.
A fault-led guide covering the most common L322 failure categories including air suspension, fuel system, driveline, and transmission issues across the BMW and Jaguar powertrain eras.
Range Rover L322 common faults guide →Workshop-level diagnosis guide for the fourth-generation Range Rover. Covers diesel, petrol, EAS, ACE, and electrical fault categories across the L405 production run from 2013 to 2022.
Range Rover L405 problems and fixes →Overview of the fifth-generation Range Rover including the MLA-Flex platform, NVH engineering, and key component groups relevant to L460 service and repair.
Range Rover L460 platform guide →A detailed fault reference for the first-generation Range Rover Sport, covering air suspension, timing chain, and drivetrain failure patterns across the L320 production run.
Range Rover Sport L320 problems guide →Fault and parts reference for the second-generation Range Rover Sport, covering D7u platform components, TDV6 and SDV8 diesel issues, and L494-specific service patterns.
Range Rover Sport L494 faults guide →Performance, engine, and platform guide for the Range Rover Velar L560 covering the D7a platform, Ingenium engine variants, and key Velar-specific service points.
Range Rover Velar L560 guide →Budget Parts stocks parts for all main Range Rover generations available in the EU market. These include the Range Rover Classic (1970-1996), the P38 / P38A (1994-2001), the L322 (2002-2012), the L405 (2013-2022), and the current L460 (2022 onwards). The collection also covers all three Range Rover Sport generations (L320 from 2005, L494 from 2013, L461 from 2022), both Range Rover Evoque generations (L538 from 2011, L551 from 2019), and the Range Rover Velar L560 (2017 onwards). Use the generation grid above or the chassis-code link cards to select the collection that matches your vehicle.
The most reliable method is your 17-digit VIN. The VIN appears on the door jamb plate (driver's side), at the base of the windscreen, and on your vehicle registration document. Position 10 of the VIN encodes the model year. Position 4 through 8 encodes the vehicle descriptor section, which includes engine family, transmission, and drive type. If you already know your chassis code (such as L322, L405, L320, or L538), the generation table above confirms your production year range and engine availability. For vehicles registered during transition years between generations, contact the Budget Parts team with your VIN and they will confirm the correct generation, engine code, and applicable parts catalogue.
The four are structurally distinct sub-brands. The full-size Range Rover line (Classic, P38, L322, L405, L460) is the original flagship, with a longer wheelbase, more luxury-focused trim, and the largest engine range. The Range Rover Sport line (L320, L494, L461) is performance-oriented, built on platforms shared with full-size Range Rover (L494 on D7u with L405, L461 on MLA-Flex with L460) but with shorter wheelbase, sportier suspension geometry, and SVR-style performance variants where applicable. The Evoque (L538, L551) is the compact sub-brand on transverse-engine platforms shared with Land Rover Discovery Sport. The Velar (L560) is the mid-size derivative on the D7a platform shared with Jaguar F-Pace. Parts are not interchangeable across sub-brands.
Yes. Budget Parts maintains active stock for the Range Rover Classic (1970-1996) and Range Rover P38 (1994-2001) across all three quality tiers. The Classic and P38 are now classed as classic and youngtimer vehicles respectively in most EU markets, and both have a strong restoration parts catalogue covering Rover V8 engine components, body and chassis parts, electrical items, and trim. BMW M51 diesel parts for the P38 and 200Tdi/300Tdi parts for the late Classic are also stocked. For specific items not visible on the collection, the Budget Parts team can source individual parts on request with your chassis number.
Genuine parts come through the official Jaguar Land Rover distribution channel with the Land Rover part number and JLR packaging. OEM parts are the same component direct from the original manufacturer, supplied outside the JLR channel — the physical part is often identical but the price reflects the absence of the official-channel markup. Aftermarket parts are independently manufactured equivalents from third-party suppliers; quality varies by manufacturer and Budget Parts identifies the supplier where known. Each product listing shows its grade, and quality tier filters are available within every generation collection. For warranty work or vehicles where original specification is required, choose Genuine. For most independent workshop repairs, OEM is the standard choice. For older vehicles or non-critical components, aftermarket is often the most practical option.
Yes. Budget Parts ships to every EU member state and to most non-EU European destinations including Norway, Switzerland, Iceland, and the UK. Orders are picked and dispatched from the warehouse in The Hague, Netherlands. EU customers are invoiced with correct VAT treatment for their delivery country, and EU VAT-registered businesses can apply for reverse-charge invoicing through the wholesale portal. Larger items such as body panels, complete propshafts, and subassemblies may carry different shipping conditions; specific shipping costs and delivery estimates are shown at checkout.
Yes, for the PHEV variants that exist across the line: Range Rover L405 P400e (2019-2022), Range Rover L460 P440e and P510e (2022-2023) and P460e / P550e (2024+), Range Rover Sport L494 P400e (2018-2022), Range Rover Sport L461 P440e and P510e (2022 onwards), and Range Rover Evoque L551 P300e (2020 onwards). High-voltage traction battery packs and main drive units are typically dealer-only items outside the scope of this collection; standard mechanical, suspension, cooling, brake, and body parts for PHEV variants are stocked alongside conventional ICE variants in each generation collection. Filter by your chassis code and check the product description for PHEV-specific fitment notes where applicable.
Yes. The Budget Parts wholesale portal is open to registered trade and workshop accounts across the EU. Once approved, the account provides trade pricing, account-based credit terms, direct technical support from the Budget Parts team, and VIN-level fitment confirmation before despatch on complex orders. For pre-registration enquiries, use the contact page or apply through the wholesale login page.
