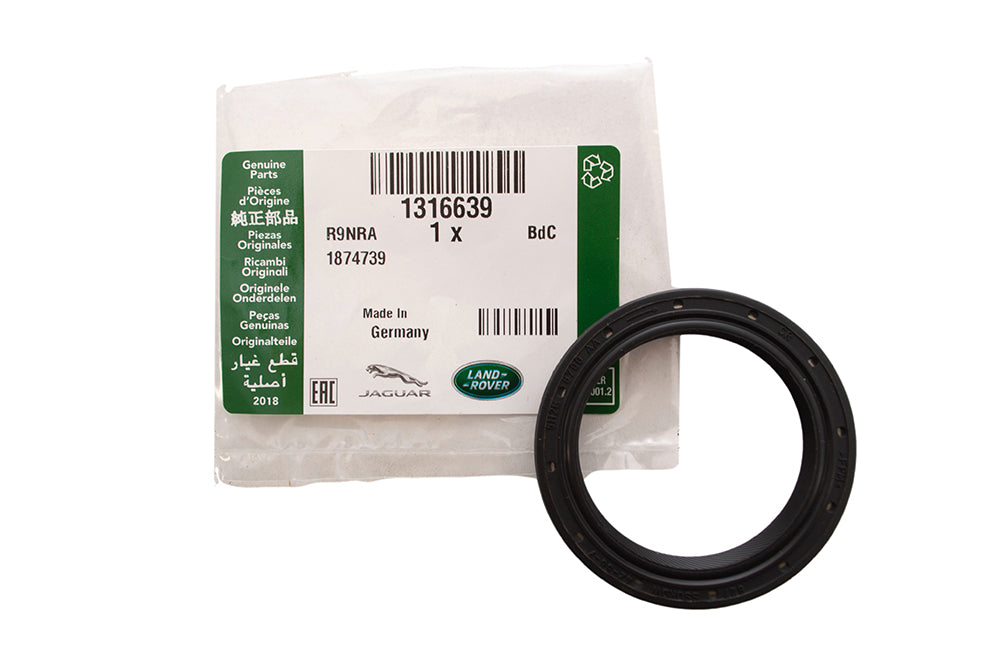

1316639LR - Seal - Crankshaft Oil - Front by LAND ROVER Land Rover Range Rover

1316639LR - Crankshaft Oil Seal – Front – 4.0 V6

- €12,40
€12,40
€12,40 - €12,40
€12,40
Genuine Part
Genuine: Original manufacturer part. This product is the original part designed and produced by the vehicle manufacturer.
Crankshaft Oil Seal is the front main oil seal that seals the nose of the crankshaft where it passes through the timing cover on the 4.0L V6 petrol engine (Cologne SOHC).

Seated in the front cover around the crankshaft snout, it runs against the sealing surface behind the crankshaft pulley to retain engine oil and prevent leakage at the front of the block. A perished or hardened seal is a common source of front-of-engine oil loss. Supplied individually.
Vehicle Model Land Rover Discovery 3 2005-2009 (L319)
Land Rover Discovery 4 2010-2016 (L319)
Fitment Notes DISCOVERY 3 2005-2009 — 4.0 V6 Petrol (Cologne SOHC), front crankshaft oil seal, up to VIN 9A999999
DISCOVERY 4 2010-2016 — 4.0 V6 Petrol (Cologne SOHC), front crankshaft oil seal, from VIN AA000001
Alternative Codes
1316639LR1316639

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

  • Netherlands / Belgium / Germany: 2–4 working days after dispatch.
  • Other EU countries + UK: 4–8 working days after dispatch.
  • Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the crankshaft oil seal used for on the 4.0 V6?
The crankshaft oil seal is the front main seal on the 4.0 V6 petrol engine (Cologne SOHC). It seals the nose of the crankshaft where it passes through the timing cover, running behind the crankshaft pulley to retain engine oil. Fitted to Discovery 3 and Discovery 4.
Where is this crankshaft oil seal located?
The crankshaft oil seal sits at the front of the engine, in the timing cover around the crankshaft snout, directly behind the crankshaft pulley. Accessing it typically means removing the pulley and drive belt first.
What are the signs this crankshaft oil seal needs replacing?
A failing front crankshaft oil seal usually shows as oil weeping from the front of the engine, around the timing cover and lower crankshaft pulley. The seal hardens and perishes with age and heat. Replace it once it starts leaking to stop front-of-engine oil loss.
How do I confirm this crankshaft seal fits my vehicle?
This seal fits the 4.0 V6 petrol (Cologne SOHC) in Discovery 3 (2005-2009) up to VIN 9A999999 and Discovery 4 (2010-2016) from VIN AA000001. It suits only the 4.0 V6 petrol, so check your engine and VIN before ordering.
