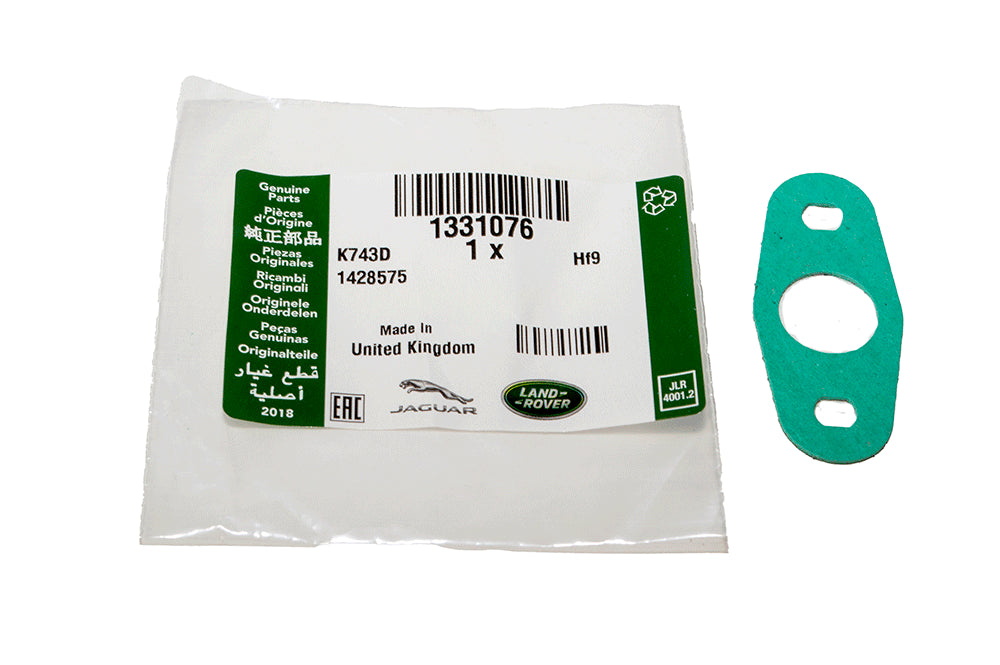

1331076LR - Oil Tube Gasket

- €2,40

€2,40

€2,40 - €2,40

€2,40

Tip: Log in to your account to unlock volume discounts on this item.

Genuine: Original manufacturer part. This product is the original part designed and produced by the vehicle manufacturer.

Oil Tube Gasket seals the turbocharger oil drain (return) pipe where it joins the engine, within the turbocharger lubrication circuit.

After lubricating the turbocharger bearings, oil returns to the sump through this drain pipe under gravity, and the gasket forms the seal at the joint to prevent leakage. Fitted to the V6 diesel and TDCi Puma diesel engines.

Vehicle Model Land Rover Defender up to 2016
Land Rover Discovery 3 2005-2009 (L319)
Land Rover Discovery 4 2010-2016 (L319)
Land Rover Discovery 5 2017+ (L462)
Range Rover 2013-2022 (L405)
Range Rover Sport 2005-2013 (L320)
Range Rover Sport 2014-2022 (L494)
Range Rover Sport 2023+ (L461)

Fitment Notes DEFENDER 2007-2016 — 2.4L & 2.2L TDCi Puma
DISCOVERY 3 2005-2009 — 2.7L TDV6
DISCOVERY 4 2010-2016 — 2.7L TDV6, 3.0L V6 diesel
DISCOVERY 5 2017+ — 3.0L V6 diesel
RANGE ROVER 2013+ — 3.0L V6 diesel
RANGE ROVER SPORT 2005-2009 — 2.7L TDV6
RANGE ROVER SPORT 2010+ — 3.0L V6 diesel

Alternative Codes

1331076LR1331076

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

Netherlands / Belgium / Germany: 2–4 working days after dispatch.
Other EU countries + UK: 4–8 working days after dispatch.
Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the oil tube gasket for?

The oil tube gasket forms the seal on the turbocharger oil drain pipe at the point it meets the engine. Oil that has lubricated the turbo bearings returns to the sump by gravity through this pipe, and the gasket keeps that joint oil-tight on V6 diesel and TDCi Puma engines.

Is this the feed-side or drain-side turbo seal?

This gasket seals the drain (return) side of the turbocharger oil circuit, not the high-pressure feed. It's the joint where spent oil flows back to the sump. Oil weeping from the lower turbo area is a common sign this drain-pipe seal has failed and needs renewing.

Which Land Rover diesels does this genuine gasket fit?

This genuine Land Rover oil tube gasket suits the TDCi Puma Defender (2007-2016) plus the 2.7 TDV6 and 3.0 V6 diesel engines used in Discovery 3 to 5, Range Rover L405 and Range Rover Sport from 2005 on. Match your engine to a TDCi or V6 diesel before ordering.

Does the oil tube gasket need replacing each time the pipe comes off?

Yes, fit a new oil tube gasket every time the turbo oil drain pipe is removed. It's designed as a one-use seal and won't compress back to shape, so reusing it tends to leak at the drain joint. Replace it as routine during turbo work on these diesels.
