549244 - Differential Pinion Shim – 0.052in by Land RoverSteering or Suspension Part Land Rover Range Rover Defender, Discovery, Range Rover

549244 - Differential Pinion Shim – 0.052in

- €11,70
€11,70
€11,70 - €11,70
€11,70
Genuine Part
Genuine: Original manufacturer part. This product is the original part designed and produced by the vehicle manufacturer.

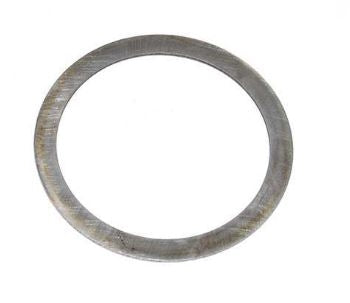

Differential Pinion Shim - 0.052in.

Fitted between the pinion head and its bearing to set pinion depth and preload during differential setup. Shim thickness is selected against measured clearances when building or overhauling the axle.
Vehicle Model Land Rover Defender up to 2016
Land Rover Discovery 1 1989-1998 (L318)
Range Rover Classic up to 1994
Fitment Notes DEFENDER 1987-2006 — Differential Case (Front); Crownwheel & Pinion, 2-Pinion Axle To (V)KA930455; 4-Pinion Axle
DISCOVERY 1 1989-1998 — From (V)FA393361 To (V)WA799999, Differential Case (Rear)
RANGE ROVER CLASSIC 1986-1994 — Differential Case (Front); Crownwheel & Pinion (1986-1991); Differential Case (Rear) From (V)JA610294
Alternative Codes
549244

In stock 2 units
2 · Gouda 0 · Drachten
Express delivery available

When will my order arrive?
  • Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
  • UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
  • Netherlands / Belgium / Germany: 2–4 working days.
  • Other EU countries + UK: 4–8 working days.
  • Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What does the differential pinion shim do?
The differential pinion shim sets pinion depth and bearing preload when building or overhauling the axle. It fits between the pinion head and its bearing, and its thickness is chosen against measured clearances to position the pinion correctly against the crownwheel.
How do I know which shim thickness I need?
Shim thickness is selected against the clearances measured during differential setup, not chosen in advance. This one is 0.052in. Pinion depth shims are typically fitted from a range, so you usually measure first, then pick the size that gives the correct preload and mesh.
Which axles does this shim fit?
This shim fits the front differential on the Defender (up to 2016) and Range Rover Classic, and the rear differential on the Discovery 1. On the Land Rover-type axle it covers both the 2-pinion axle up to VIN KA930455 and the 4-pinion axle.
