CKMP12V2 - Air Compressor Kit – Medium Portable – 12V

- €550,00

€550,00

€550,00 - €550,00

€550,00

OEM: Made by an Original Equipment Manufacturer. This part is made by an original equipment manufacturer or under their license, ensuring compatibility and quality.

Brand ARB

ARB Single Motor Portable Air Compressor Kit - a compact 12V tyre inflation and air solution for off-road and overlanding use.

The compressor delivers up to 100 PSI with an air flow of 3.08 CFM at 0 PSI and 2.34 CFM at 29 PSI. A built-in pressure switch and over-pressure safety valve prevent over-inflation; the motor is internally thermal protected. The hard anodised cylinder bore and Teflon-impregnated carbon fibre piston seal provide long service life. Duty cycle is 50% (30 minutes on, 30 minutes off); maximum current draw is 32A at 12V DC.

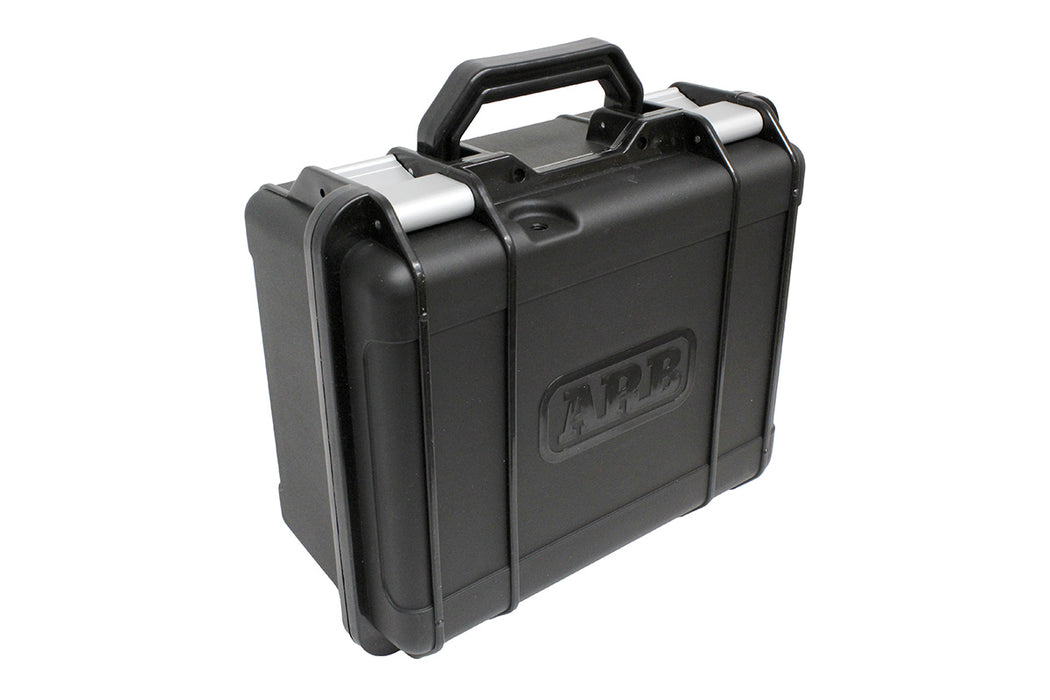

Kit includes: compressor unit, 304 grade stainless steel heat shield, 7m high-temperature air hose (rated to 150 PSI), ARB quick-connect tyre inflation chuck, tyre bead seating fitting, inflation accessory kit, and an impact-resistant weatherproof polypropylene carry case with integrated neoprene storage pocket. Each unit is individually built and tested at ARB's factory in Kilsyth, Victoria, Australia.

Alternative Codes

CKMP12V2

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

Netherlands / Belgium / Germany: 2–4 working days after dispatch.
Other EU countries + UK: 4–8 working days after dispatch.
Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the CKMP12V2 air compressor kit?

The CKMP12V2 is an ARB single-motor portable 12V air compressor kit for tyre inflation and air supply on off-road and overlanding trips. It delivers up to 100 PSI with airflow of 3.08 CFM at 0 PSI. It's a self-contained portable unit in a weatherproof carry case, so no permanent vehicle mounting is needed.

What's included in the CKMP12V2 portable compressor kit?

The CKMP12V2 kit includes the compressor unit, a stainless steel heat shield, a 7m high-temperature air hose, an ARB quick-connect tyre chuck, a tyre bead seating fitting, an inflation accessory kit, and an impact-resistant weatherproof carry case. It's ready to use out of the box for tyre inflation.

How does the portable CKMP12V2 differ from a fixed onboard compressor?

The CKMP12V2 is a portable single-motor unit you carry and connect when needed, rather than a permanently mounted onboard compressor. It runs at a 50% duty cycle (30 minutes on, 30 minutes off) and draws up to 32A at 12V. It suits tyre inflation and occasional air use rather than running air lockers full time.

Can the CKMP12V2 seat a tyre bead?

Yes, the CKMP12V2 includes a tyre bead seating fitting, so it can help seat a tyre bead during fitting. It delivers up to 100 PSI with 2.34 CFM at 29 PSI. For repeated heavy-duty bead seating a twin-motor onboard compressor moves more air, but this portable kit handles typical trail and tyre-fitting tasks.
