DA5291 - Lazer CANNY CAN Interface - Direct Connect

Description:
CANNY is an advanced CAN interface developed by Lazer Lamps that enables the seamless installation of auxiliary lights on modern vehicles equipped with CAN communication systems. Specifically designed for vehicles where traditional 12V lighting signals cannot be sourced directly from the headlamp, this module utilizes a dedicated smartphone app and Bluetooth connectivity for a fast, user-friendly installation and convenient over-the-air updates.

Details:
IP68 waterproof CANNY dongle equipped with an automotive-standard Molex connector terminal
Designed for versatile placement, suitable for mounting within the engine bay or inside the vehicle cabin
Optional IP64 compliant Contactless Reader available to read vehicle data without metal-to-metal wire cutting

Connects to vehicle CAN lines via the supplied wiring loom using automotive-grade heat-seal crimps for watertight joints
Comprehensive wiring loom includes a fused battery positive connection and a dedicated ground wire
Activates up to four different outputs, each fully programmable to respond to inputs like high beam, position light, reverse, or ignition

Fully compatible with vehicle-side Lazer wiring harness kits (where the required output is >1Amp)
Over-the-air Bluetooth synchronization, testing, and updates managed via the dedicated CANNY app (Android and iOS)
Secure app access uses a unique unique serial number and PIN to download vehicle-specific installation guides

Integrated design features and included cable ties facilitate quick, secure mounting
Fast, intuitive installation procedure backed by ongoing technical support from the UK Sales Team
Easily updated via Bluetooth if vehicle manufacturers make future changes to their CAN 'recipes'

Technical Highlights:
4 fully programmable output channels to control multiple lighting functions
Wireless Bluetooth connectivity for app integration and firmware updates
IP68 watertight interface (IP64 rating for the optional Contactless Reader variant)

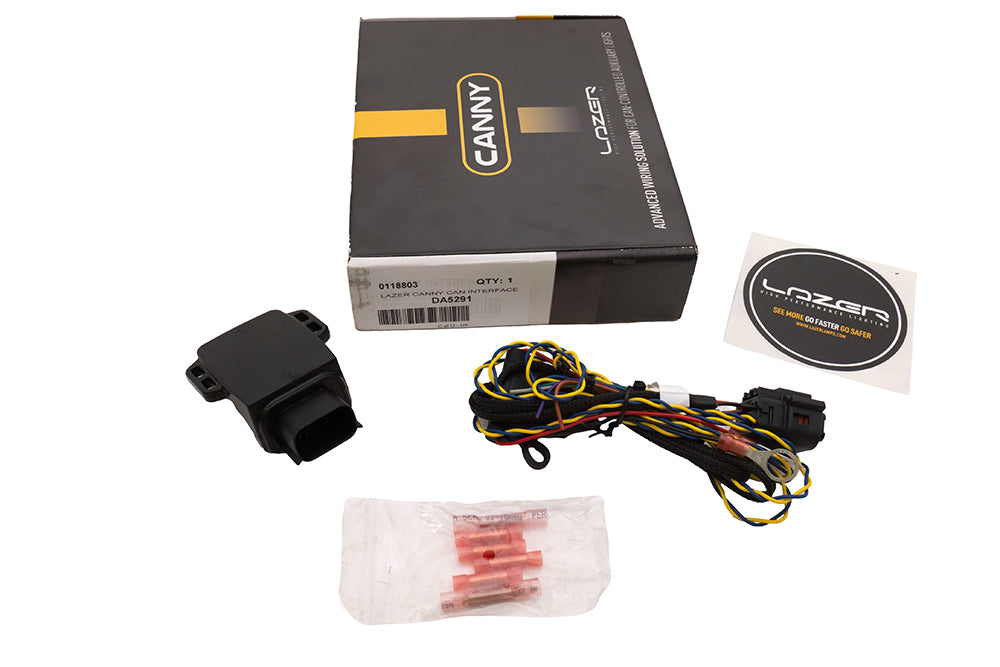

What's Included:
1x CANNY CAN Interface Dongle
1x Vehicle connection wiring loom
Automotive-grade heat-seal crimps
Mounting cable ties

Application / Suitable Vehicles:
Selected vehicles utilizing CAN bus communication systems (Vehicle-specific pick-up locations and methods are downloadable through the CANNY App after purchase)

All product codes / identifiers:
DA5291 DA5291 DA5386, DA2844

Models:
Land Rover Defender New 2020+
Land Rover Discovery 3 2005-2009 (L319)
Land Rover Discovery 4 2010-2016 (L319)
Land Rover Discovery 5 2017+ (L462)
Land Rover Discovery Sport 2015+ (L550)
Land Rover Freelander 2 2006-2014 (L359)
Range Rover 2013-2022 (L405)
Range Rover 2022+ (L460)
Range Rover Sport 2005-2013 (L320)
Range Rover Sport 2014-2022 (L494)
Range Rover Sport 2023+ (L461)
Range Rover Evoque 2012-2018 (L538)
Range Rover Evoque 2019+ (L551)
Range Rover Velar 2017+ (L560)
Fitment Notes:
Discovery 3/4/5, Defender 2020+, Range Rover L322/L405/L460, Range Rover Sport all models, Evoque, Velar, Freelander 2.
