DA5386 - Lazer CANNY CAN Interface - with Wiring Loom

Description:
CANNY is an advanced CAN interface developed by Lazer Lamps that enables the seamless installation of auxiliary lights on selected vehicles utilizing CAN communication systems. Designed for applications where picking up a 12V lighting signal at the headlamp is not possible, this system pairs a waterproof dongle with a dedicated smartphone app for fast, user-friendly installation and convenient over-the-air Bluetooth updates.

Details:
IP68 waterproof CANNY dongle equipped with an automotive-standard Molex connector terminal
Features a Contactless Reader (IP64 compliant) allowing vehicle data to be read without metal-to-metal wire cutting
Designed for versatile placement, suitable for mounting within the engine bay or inside the vehicle cabin

Comprehensive wiring loom includes a fused battery positive connection and a dedicated ground wire
Activates up to four different outputs, each fully programmable to respond to inputs like high beam, position light, reverse, or ignition
Fully compatible with vehicle-side wiring harness kits (where the required output is >1Amp)

Over-the-air Bluetooth synchronization, testing, and updates managed via the dedicated CANNY app (Android and iOS)
Secure app access uses a unique serial number and PIN to download vehicle-specific installation guides
Easily updated via Bluetooth if vehicle manufacturers make future changes to their CAN 'recipes'

Integrated design features and included cable ties facilitate quick, secure mounting
Fast, intuitive installation procedure backed by ongoing technical support from the UK sales team
Locations of CAN wires and connection methods supplied via vehicle-specific instructions on the app

Technical Highlights:
4 fully programmable output channels to control multiple lighting functions
Wireless Bluetooth connectivity for app integration and firmware updates
IP68 watertight interface paired with an IP64 rated Contactless Reader

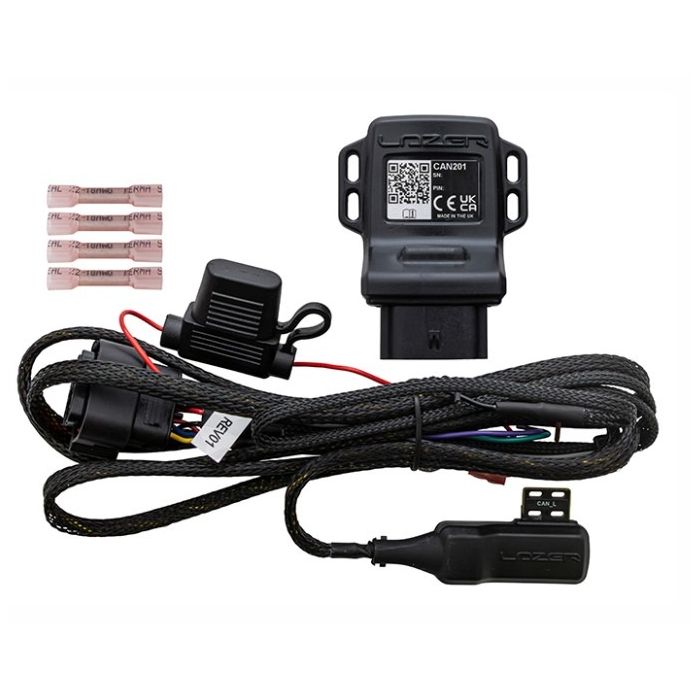

What's Included:
1x CANNY CAN Interface Dongle
1x Vehicle connection wiring loom with Contactless Reader
Automotive-grade heat-seal crimps
Mounting cable ties

Application / Suitable Vehicles:
Selected vehicles utilizing CAN bus communication systems (Vehicle-specific pick-up locations and methods are downloadable through the CANNY App after purchase)

All product codes / identifiers:
DA5386 DA5386 DA5386 DA5291, DA2844

Models:
Land Rover Defender New 2020+
Land Rover Discovery 3 2005-2009 (L319)
Land Rover Discovery 4 2010-2016 (L319)
Land Rover Discovery 5 2017+ (L462)
Land Rover Discovery Sport 2015+ (L550)
Land Rover Freelander 2 2006-2014 (L359)
Range Rover 2002-2012 (L322)
Range Rover 2013-2022 (L405)
Range Rover 2022+ (L460)
Range Rover Sport 2005-2013 (L320)
Range Rover Sport 2014-2022 (L494)
Range Rover Sport 2023+ (L461)
Range Rover Evoque 2012-2018 (L538)
Range Rover Evoque 2019+ (L551)
Range Rover Velar 2017+ (L560)
Fitment Notes:
Discovery 3/4/5, Defender 2020+, Range Rover L322/L405/L460, Range Rover Sport all models, Evoque, Velar, Freelander 2
