FRC8292LR - O-Ring – LT230 Transfer Box by LAND ROVERTransmission or Drivetrain Part Land Rover Range Rover Defender, Discovery, Range Rover

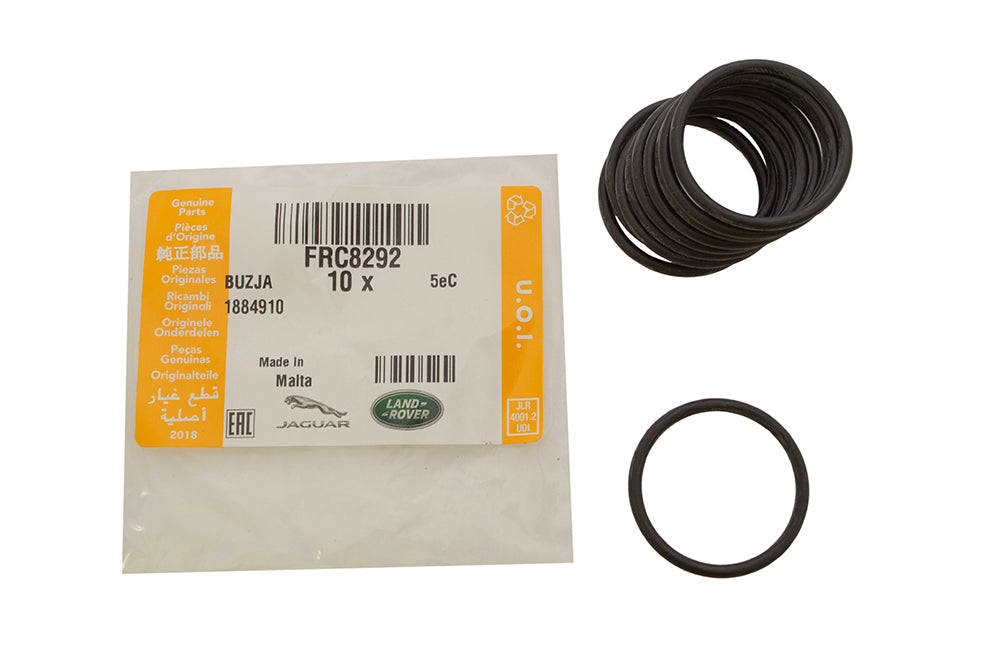

FRC8292LR - O-Ring – LT230 Transfer Box

- €14,50
€14,50
€14,50 - €14,50
€14,50
Genuine Part
Genuine: Original manufacturer part. This product is the original part designed and produced by the vehicle manufacturer.
O-Ring for the LT230 Transfer Box, used at multiple sealing positions within the unit.

This O-ring is fitted at several locations in the LT230 two-speed transfer box, including the gear change mechanism (on V8 automatic and 5-speed manual applications), the intermediate shaft, the main casing, and the speedometer housing. Also included in the LT230 gasket kit. On later Defender applications from VIN 7A000001, it is used at the intermediate shaft and main casing positions.
Vehicle Model Land Rover Defender up to 2016
Land Rover Discovery 1 1989-1998 (L318)
Land Rover Discovery 2 1998-2004 (L318)
Range Rover Classic up to 1994
Fitment Notes LT230 transfer box O-ring — multiple positions
DEFENDER 1987-2006 — gear change (4.0L V8 EFI Petrol automatic & 5-speed manual), intermediate shaft, main casing; also in gasket kit
DEFENDER 2007-2016 — intermediate shaft & main casing, from (V) 7A000001
DISCOVERY 1 1989-1998 — gear change (auto & manual), intermediate shaft, speedo housing; also in gasket kit
DISCOVERY 2 1998-2004 — intermediate shaft
RANGE ROVER CLASSIC 1986-1991 — to VIN HA610293; gear change, speedo housing; also in gasket kit
Alternative Codes
FRC8292LRFRC82924558527FRC4565FS106206LFS106201LFS106207SH106201

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

  • Netherlands / Belgium / Germany: 2–4 working days after dispatch.
  • Other EU countries + UK: 4–8 working days after dispatch.
  • Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is this O-Ring and what does it do?
This O-Ring seals several positions inside the LT230 transfer box, including the gear change mechanism, intermediate shaft, main casing and speedometer housing. It prevents oil leaks at these joints and is also included in the LT230 gasket kit.
Which vehicles and positions does this O-ring cover?
This O-ring fits the LT230 transfer box on the Land Rover Defender (1987-2016), Discovery 1 and 2, and Range Rover Classic (to VIN HA610293). It seals positions such as the gear change, intermediate shaft, main casing and speedo housing. On the 2007-2016 Defender it's used at the intermediate shaft and main casing from VIN 7A000001.
What are the alternative part numbers for this O-ring?
This O-ring cross-references to FRC4565, SH106201, LFS106201, LFS106207, 4558527 and FS106206. If you've found it under any of these codes, it's the same LT230 transfer box O-ring. It's also supplied within the LT230 gasket kit.
How many of these O-rings do I need?
The number depends on which position you're sealing, since the LT230 uses this O-ring at several locations such as the gear change, intermediate shaft, main casing and speedo housing. Check how many your specific repair calls for. It's also included in the LT230 gasket kit for a full reseal.
