GA5505 - Radius Arm Pair – 3 Degree by AllmakesSteering or Suspension Part Land Rover Range Rover Defender, Discovery, Range Rover

GA5505 - Radius Arm Pair – 3 Degree

- €340,00
€340,00
€340,00 - €340,00
€340,00

FYI: This product’s size or weight exceeds standard limits, so extra shipping fees could apply.

Aftermarket Part
Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

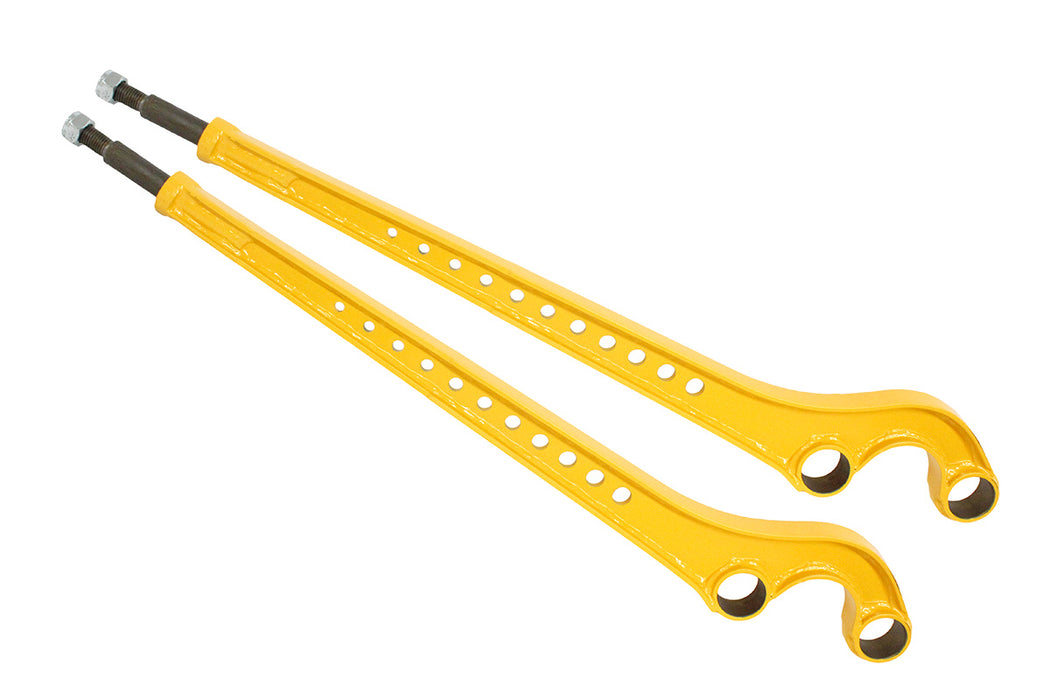

Radius Arm Pair - 3 Degree Caster Correction for the front suspension radius arm assembly on coil-sprung Land Rovers fitted with a 25-75 mm (1-3 inch) suspension lift.

Lifting the suspension changes the geometry of the front radius arms, reducing the caster angle below specification. This causes imprecise steering return and a loss of self-centring on the road. These arms introduce a 3-degree angular correction that restores the designed caster angle at the lifted ride height, allowing the front axle to travel through its full articulation range and the steering to self-centre correctly.

Finished with a zinc passivation treatment and a heavy-duty powder coating. Sold as a pair.
Vehicle Model Land Rover Defender up to 2016
Land Rover Discovery 1 1989-1998 (L318)
Range Rover Classic up to 1994
Alternative Codes
GA5505DA5505

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

  • Netherlands / Belgium / Germany: 2–4 working days after dispatch.
  • Other EU countries + UK: 4–8 working days after dispatch.
  • Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What are the 3-degree radius arms for?
The 3-degree radius arms restore front suspension caster on coil-sprung Land Rovers fitted with a lift kit. They apply a 3-degree angular correction to the front radius arm geometry, bringing the caster angle back to specification at the raised ride height.
When do I need caster correction radius arms?
Caster correction is typically needed once a suspension lift of around 25-75mm (1 to 3 inch) is fitted, which reduces the front caster below spec. That loss causes vague steering and poor self-centring; these arms recover the designed caster so the steering returns properly.
Are the radius arms sold as a pair?
Yes, the radius arms are supplied as a pair, covering both sides of the front axle on the Defender, Discovery 1 and Range Rover Classic. Both arms are replaced together so the caster correction is even across the axle.
What bush width do these radius arms use?
These radius arms use the narrow 38mm bush. Land Rover front radius arms were made in more than one bush width, so check which width your chassis mounts and axle take before ordering to make sure the bushes seat correctly.
