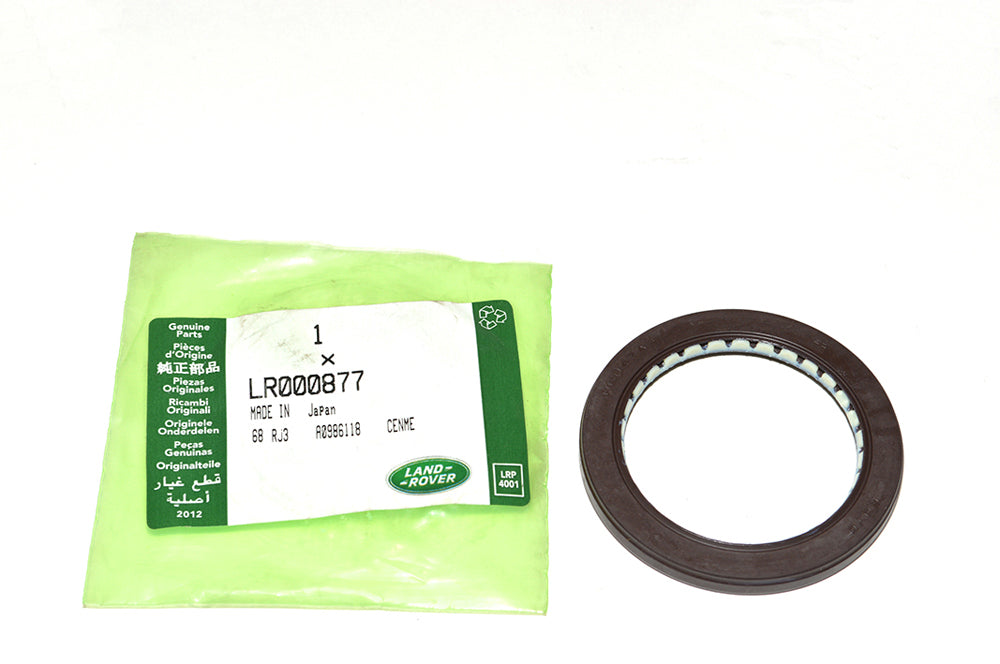

LR000877LR - Ring - Sealing by LAND ROVERHardware Part Land Rover Range Rover

LR000877LR - Sealing Ring – AWF21 Auto Transmission

- €24,00
€24,00
€24,00 - €24,00
€24,00
Genuine Part
Genuine: Original manufacturer part. This product is the original part designed and produced by the vehicle manufacturer.
Sealing Ring - oil seal at the input of the AWF21 six-speed automatic transmission, sealing around the torque converter hub where it enters the transmission housing.

The seal retains transmission fluid at the converter housing and runs against the rotating converter hub. Loss of sealing shows as fluid leakage from the bellhousing area and, if left unattended, a falling fluid level. Access requires the transmission or torque converter to be removed, so the seal is normally renewed whenever the converter is withdrawn.
Vehicle Model Land Rover Freelander 2 2006-2014 (L359)
Range Rover Evoque 2012-2018 (L538)
Fitment Notes FREELANDER 2 2006-2014 — 6-Speed Auto AWF21 AWD transmission sealing ring
RANGE ROVER EVOQUE 2012 — 6-Speed Auto AWF21 AWD transmission sealing ring
Alternative Codes
LR000877LR

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

  • Netherlands / Belgium / Germany: 2–4 working days after dispatch.
  • Other EU countries + UK: 4–8 working days after dispatch.
  • Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the AWF21 transmission sealing ring for?
The sealing ring is the oil seal at the input of the AWF21 six-speed automatic transmission, sealing around the torque converter hub where it enters the transmission housing. It retains transmission fluid while running against the rotating hub. Fitted to the Freelander 2 and Range Rover Evoque with the AWF21 auto.
What are the signs the converter hub seal has failed?
A failing converter hub sealing ring typically shows as a transmission fluid leak at the bellhousing, dripping between the engine and gearbox. Left low on fluid, the AWF21 can slip or overheat. It's usually replaced whenever the transmission or torque converter is separated from the engine.
Should the sealing ring be replaced when the gearbox is removed?
Yes, the AWF21 converter hub sealing ring is typically replaced whenever the transmission is separated from the engine, since disturbing it risks a leak. This genuine part fits the Freelander 2 and Range Rover Evoque AWF21 six-speed automatic. It's a single seal, not a full overhaul kit.
