LR001706 - Air Suspension Sensor by PR2 Allmakes OEElectrical Part Land Rover Range Rover

LR001706 - Air Suspension Sensor

- €80,20
€80,20
€80,20 - €80,20
€80,20
OEM Part
OEM: Made by an Original Equipment Manufacturer. This part is made by an original equipment manufacturer or under their license, ensuring compatibility and quality.
Brand PR2 Allmakes OE

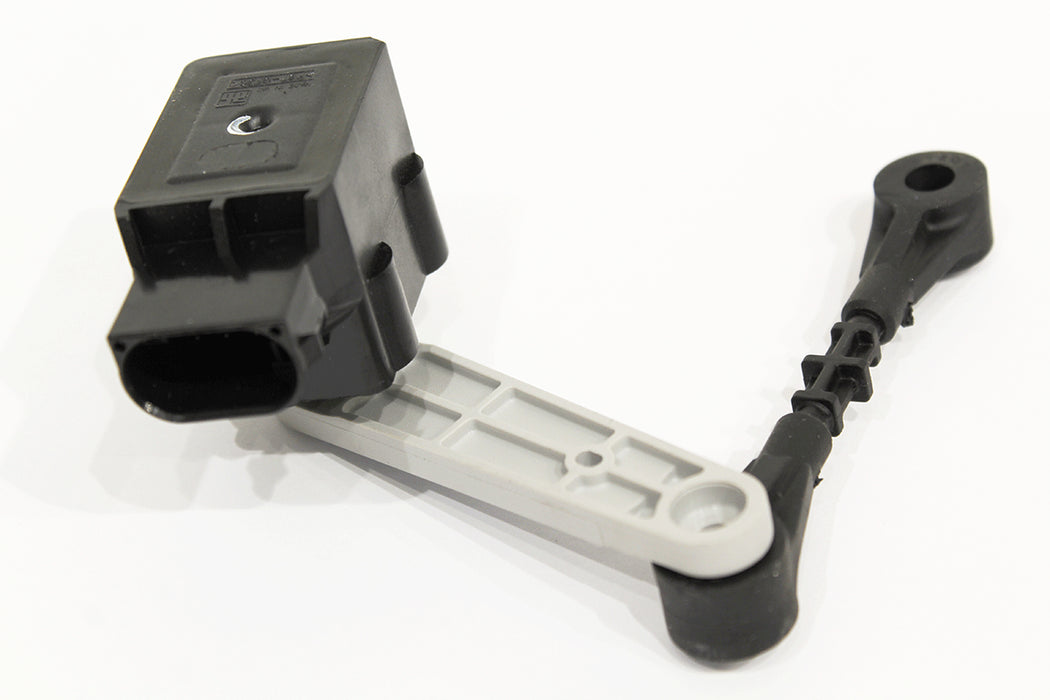

Ride-Height Sensor - a suspension-mounted level sensor for the automatic headlamp levelling system.

It measures ride height at the axle and reports body attitude to the headlamp levelling control, which adjusts beam angle to keep the headlamps correctly aimed as suspension load and movement change. Used on vehicles fitted with high-intensity discharge (HID) adaptive headlamps.

Supplied without bracket. The same sensor is used front and rear, two per vehicle.
Vehicle Model Land Rover Freelander 2 2006-2014 (L359)
Fitment Notes FREELANDER 2 2006-2014 — Automatic Headlamp Levelling System (High Intensity Discharge Headlamp, With Adaptive Headlamp). Front / Rear, Less Bracket. Qty 2 per vehicle. Fits up to VIN (V)CH301059.
Alternative Codes
LR001706

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

  • Netherlands / Belgium / Germany: 2–4 working days after dispatch.
  • Other EU countries + UK: 4–8 working days after dispatch.
  • Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What does the LR001706 sensor do?
The LR001706 is a ride-height sensor for the automatic headlamp levelling system on the Freelander 2 (2006-2014). It measures suspension height at the axle and reports body attitude to the levelling control, which adjusts headlamp beam angle. Used on cars with HID adaptive headlamps.
How many of these sensors are fitted?
Two per vehicle, and the same sensor is used front and rear. It's supplied without a bracket, so reuse your existing bracket. Order two if you're replacing both the front and rear sensors.
Which Freelander 2 does this sensor fit?
It fits the Freelander 2 (2006-2014) equipped with the automatic headlamp levelling system and HID adaptive headlamps, up to VIN CH301059. Cars without HID adaptive headlamps don't use it, so confirm your specification and VIN.
