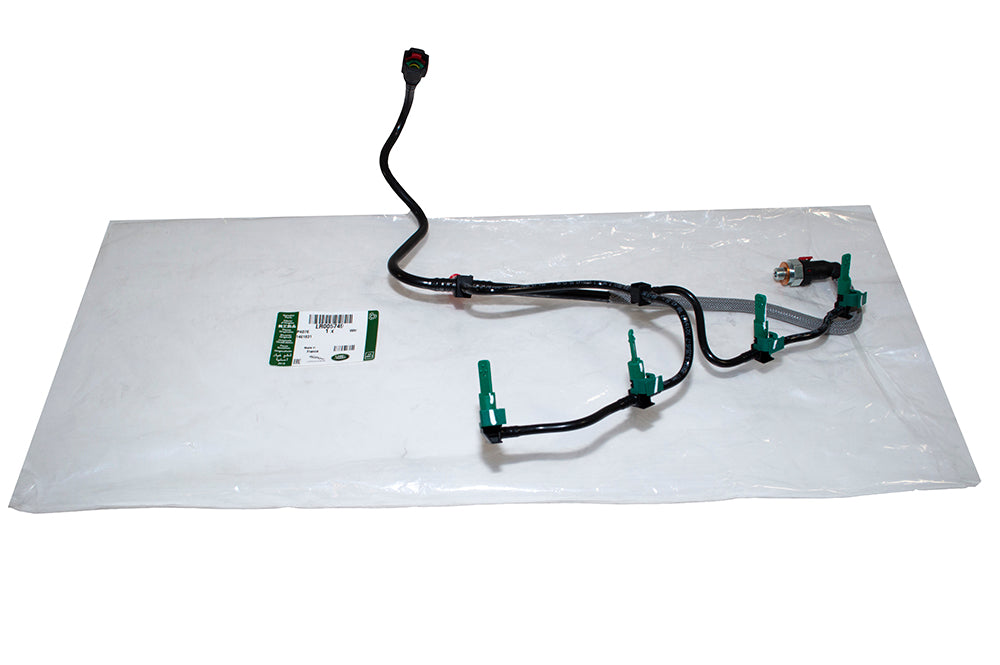

LR005749LR - Kit - Fixing Parts - Repair by LAND ROVERHardware Part Land Rover Range Rover

LR005749LR - Repair Kit – Injector Leak-Off Pipe

- €137,60
€137,60
€137,60 - €137,60
€137,60
Genuine Part
Genuine: Original manufacturer part. This product is the original part designed and produced by the vehicle manufacturer.
Injector Leak-Off Pipe for the diesel fuel injection system.

This leak-off pipe assembly collects surplus fuel returned from the injector bodies and routes it back to the fuel return line. It connects across the injector leak-off ports to form the return circuit that maintains injector sealing and fuel flow on the 2.4L Duratorq-TDCi (Puma) diesel engine.
Vehicle Model Land Rover Defender up to 2016
Fitment Notes DEFENDER 2007-2016 (L316) — 2.4L Duratorq-TDCi HPCR (140PS) Puma diesel only, VIN (V)7A000001 TO (V)BA999999. Fuel injector leak-off tube. Comment: Leak Off
Alternative Codes
LR005749LR

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

  • Netherlands / Belgium / Germany: 2–4 working days after dispatch.
  • Other EU countries + UK: 4–8 working days after dispatch.
  • Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What does the LR005749LR injector leak-off pipe repair kit do?
The LR005749LR kit is the injector leak-off pipe assembly for the 2.4L Duratorq TDCi (Puma) diesel in the Land Rover Defender up to 2016. It collects surplus fuel returned from the injector bodies and routes it back to the fuel return line, forming the return circuit that keeps the injectors sealed and fuel flowing.
What are the signs the injector leak-off pipes need replacing?
Worn leak-off pipes on the 2.4 TDCi Defender typically show as hard starting, cutting out, or air drawn into the fuel system, often with diesel seeping around the injector connections. The plastic connectors go brittle with age. Fitting the LR005749LR kit renews the leak-off circuit in one go.
Which Defender does this leak-off pipe kit fit?
This leak-off pipe kit fits the Land Rover Defender up to 2016 with the 2.4L Duratorq TDCi (Puma) diesel, VIN 7A000001 to BA999999. It suits the 2.4 Puma only. Confirm your engine and VIN before ordering.
