LR009704LR - Stud by LAND ROVERHardware Part Land Rover Range Rover

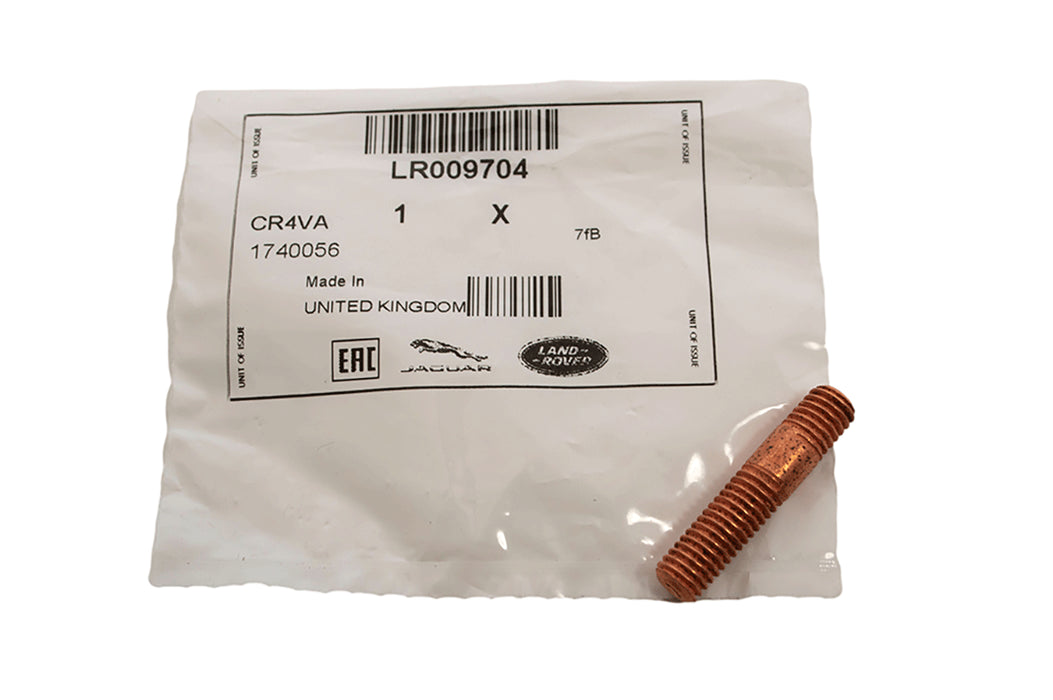

LR009704LR - Stud – Turbocharger Mounting

- €7,40
€7,40
€7,40 - €7,40
€7,40
Tip: Log in to your account to unlock volume discounts on this item.
Genuine Part
Genuine: Original manufacturer part. This product is the original part designed and produced by the vehicle manufacturer.
Turbocharger mounting stud for the 2.4L Duratorq TDCi and 2.2L 16V TC diesel engines.

The stud screws into the mounting face and locates the turbocharger, which is then clamped down with a nut. Studs in this position run through repeated heat cycles and are frequently seized or stretched by the time the turbocharger is removed, so they are commonly renewed as part of a turbocharger replacement.
Vehicle Model Land Rover Defender up to 2016
Fitment Notes DEFENDER 2007-2016 (Puma) — 2.4L Duratorq-TDCi HPCR 140PS. VIN 7A000001 > BA999999
DEFENDER 2007-2016 (Puma) — 2.2L 16V TC I4 Diesel 122PS. From VIN CA000001
Turbocharger mounting stud (JLR callout 10). Puma Defenders only — does not fit pre-2007 Td5/300Tdi.
Alternative Codes
LR009704LR

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

  • Netherlands / Belgium / Germany: 2–4 working days after dispatch.
  • Other EU countries + UK: 4–8 working days after dispatch.
  • Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 1 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the turbocharger mounting stud used for on a Defender?
The turbocharger mounting stud secures the turbo to the exhaust manifold on the Puma Defender (2007-2016) with the 2.4 TDCi and 2.2 diesel engines. It's a threaded stud that carries the clamping load between the turbo and the manifold.
How many turbo mounting studs are needed for a Defender turbo job?
Turbo mounting studs are usually replaced as a set when removing the turbocharger on a Puma Defender. Quantity depends on the turbo flange, so check how many your engine uses before ordering. Studs are typically renewed rather than reused once disturbed.
Does this stud fit pre-2007 Td5 or 300Tdi Defenders?
No, this stud fits Puma Defenders (2007-2016) with the 2.4 TDCi or 2.2 diesel only. It does not fit the pre-2007 Td5 or 300Tdi engines, which use a different turbo mounting. Confirm your engine by VIN before ordering.
