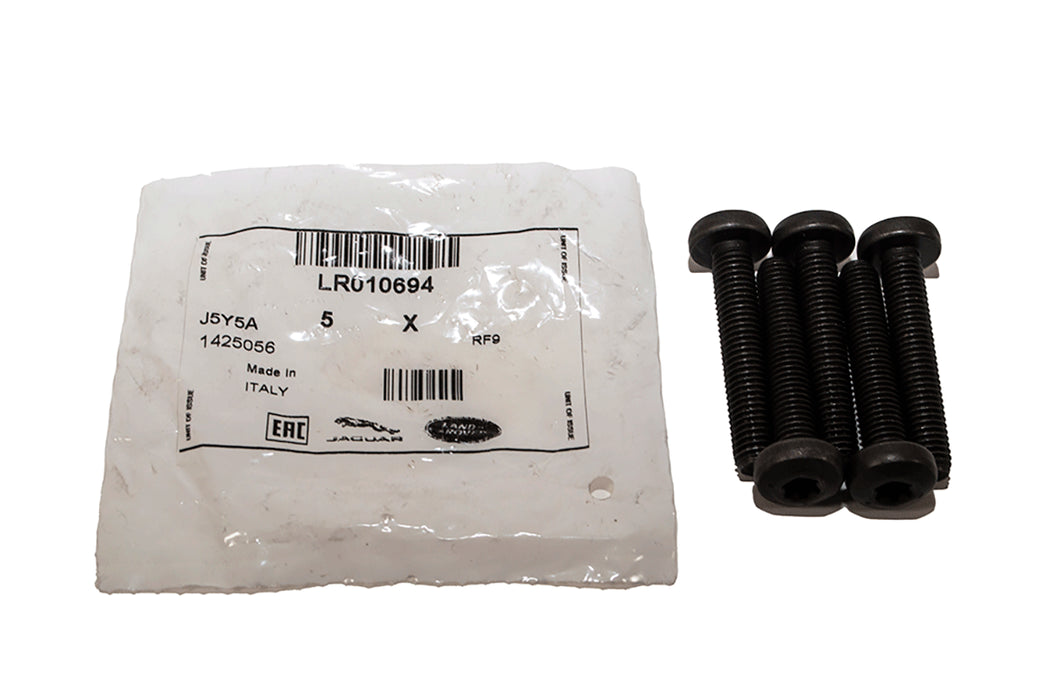

LR010694LR - Bolt by LAND ROVERHardware Part Land Rover Range Rover

LR010694LR - Bolt – Timing Gear

- €5,10
€5,10
€5,10 - €5,10
€5,10
Tip: Log in to your account to unlock volume discounts on this item.
Genuine Part
Genuine: Original manufacturer part. This product is the original part designed and produced by the vehicle manufacturer.
Timing Gear Bolt from the engine timing drive, securing the camshaft sprocket and variable camshaft timing adjuster to the camshaft.

It provides the clamping load that locks the sprocket to the camshaft, so cam-to-crank phasing is held against the torque of the timing chain drive. Used on the V8 petrol and supercharged V6 petrol engines; it is not part of the diesel timing drive.

Supplied individually.
Vehicle Model Land Rover Defender New 2020+
Land Rover Discovery 4 2010-2016 (L319)
Land Rover Discovery 5 2017+ (L462)
Range Rover 2002-2012 (L322)
Range Rover 2013-2022 (L405)
Range Rover Sport 2005-2013 (L320)
Range Rover Sport 2014-2022 (L494)
Range Rover Velar 2017+ (L560)
Fitment Notes Timing gear bolt — sprockets/solenoids. Petrol engines only (AJ133 V8 and 3.0 V6 SC petrol); not listed for any diesel.
DISCOVERY 4 2010-2016 — 5.0L V8 Petrol NA (V)AA000001; 3.0L V6 SC Petrol (V)EA000001
DISCOVERY 5 2017+ — 3.0L V6 SC Petrol, Solihull (V)EA000001 and Nitra (V)K2000001 build
NEW DEFENDER L663 2020+ — 5.0 Petrol AJ133 DOHC CDA, Nitra build (V)M2000001
RANGE ROVER L322 2010-2012 — 5.0 V8 Petrol NA and SC (V)AA000001
RANGE ROVER L405 2013+ — 5.0 V8 Petrol NA/SC (V)AA000001; 3.0 V6 SC Petrol (V)EA000001
RANGE ROVER SPORT L320 2010-2013 — 5.0 V8 Petrol NA and SC (V)AA000001
RANGE ROVER SPORT L494 2014+ — 5.0 V8 Petrol NA/SC (V)AA000001; 3.0 V6 SC Petrol (V)EA000001
RANGE ROVER VELAR 2017+ — 3.0 V6 SC Petrol (V)EA000001; 5.0 SC enhanced (V)KA000001
Alternative Codes
LR010694LR

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

  • Netherlands / Belgium / Germany: 2–4 working days after dispatch.
  • Other EU countries + UK: 4–8 working days after dispatch.
  • Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the timing gear bolt used for?
The timing gear bolt secures the camshaft sprocket and the variable camshaft timing adjuster to the camshaft. It provides the clamping load that holds cam-to-crank phasing against the timing chain drive on the petrol V8 and supercharged V6.
Which engines use this timing bolt?
It's used on the petrol engines only, the 5.0 V8 AJ133 and the 3.0 V6 supercharged petrol. It isn't part of any diesel timing drive, so it won't suit the TDV6 or TDV8.
How many of these bolts will I need?
This bolt is supplied individually. A camshaft timing job usually needs several of these plus related timing hardware, so check the workshop procedure for the exact count on your engine.
How do I confirm this fits my vehicle?
This fits petrol AJ133 V8 and 3.0 V6 supercharged petrol across the Discovery 4 and 5, Range Rover L322 and L405, Range Rover Sport L320 and L494, Velar and New Defender L663. Confirm your engine is petrol by VIN.
