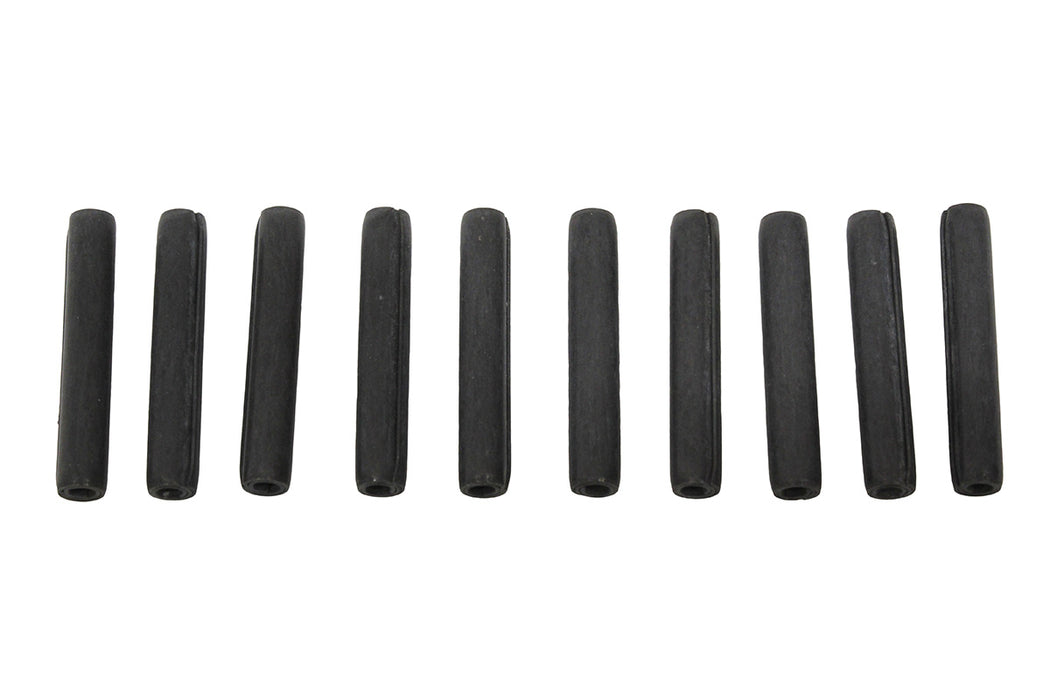

LR011063LR - Pin by LAND ROVERHardware Part Land Rover Range Rover

LR011063LR - Pin – 6 x 36mm

- €1,80
€1,80
€1,80 - €1,80
€1,80
Tip: Log in to your account to unlock volume discounts on this item.
Genuine Part
Genuine: Original manufacturer part. This product is the original part designed and produced by the vehicle manufacturer.
Pin, 6 x 36mm, from the timing gear and auxiliary drive assembly of the 5.0L AJ133 V8 petrol engine.

It serves as the guide pin for the auxiliary drive chain, locating the chain guide so the chain runs on its intended path. Supplied individually.
Vehicle Model Land Rover Defender New 2020+
Land Rover Discovery 4 2010-2016 (L319)
Range Rover 2002-2012 (L322)
Range Rover 2013-2022 (L405)
Range Rover Sport 2005-2013 (L320)
Range Rover Sport 2014-2022 (L494)
Range Rover Velar 2017+ (L560)
Fitment Notes DISCOVERY 4 2010-2016 — 5.0L OHC SGDI NA V8 Petrol AJ133, Timing Gear / Auxiliary Drive, from (V)AA000001
NEW DEFENDER 2020 (L663) — 5.0 Petrol AJ133 DOHC CDA, Timing Gear / Auxiliary Drive, Nitra Plant Build, from (V)M2000001
RANGE ROVER L322 2010-2012 — 5.0L V8 Petrol AJ133 NA and Supercharged, Timing Gear / Auxiliary Drive, from (V)AA000001
RANGE ROVER L405 2013 — 5.0L V8 Petrol AJ133 NA and Supercharged, Timing Gear / Auxiliary Drive, from (V)AA000001
RANGE ROVER SPORT L320 2010-2013 — 5.0L V8 Petrol AJ133 NA and Supercharged, Timing Gear / Auxiliary Drive, from (V)AA000001
RANGE ROVER SPORT L494 2014 — 5.0L V8 Petrol AJ133 Supercharged, Timing Gear / Auxiliary Drive, from (V)AA000001
RANGE ROVER VELAR 2017 — 5.0 Litre Supercharged, Auxiliary Drive, from (V)KA000001
JLR comment: 6 x 36mm, Pin. JLR category: Hardware - Miscellaneous.
Alternative Codes
LR011063LR

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

  • Netherlands / Belgium / Germany: 2–4 working days after dispatch.
  • Other EU countries + UK: 4–8 working days after dispatch.
  • Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the 6 x 36mm pin used for?
The 6 x 36mm pin locates components in the timing gear and auxiliary drive on the 5.0L V8 petrol (AJ133) engine. It's a dowel-type pin that positions parts accurately during assembly on the Discovery 4, Range Rover and New Defender L663.
How many 6 x 36mm pins are needed for a timing job?
The number of 6 x 36mm pins needed depends on the timing gear work being done on the 5.0 V8 petrol engine. These locating pins are typically replaced if damaged or worn during a timing or auxiliary drive rebuild. Check your build against the parts diagram.
Which engines does the 6 x 36mm pin fit?
This 6 x 36mm pin fits the 5.0L V8 petrol (AJ133) engine across the Discovery 4, New Defender L663, Range Rover L322 and L405, Range Rover Sport L320 and L494, and Velar. Confirm your engine by VIN before ordering.
