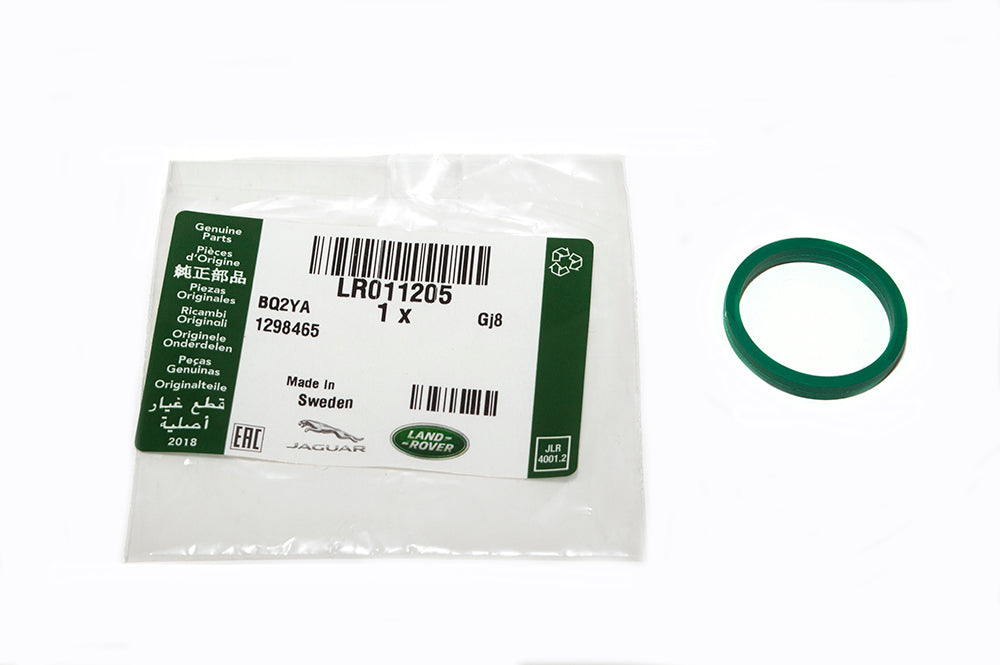

LR011205LR - O-Ring by LAND ROVERHardware Part Land Rover Range Rover

LR011205LR - O-Ring – Oil Pump Inlet Tube

- €12,10
€12,10
€12,10 - €12,10
€12,10
Genuine Part
Genuine: Original manufacturer part. This product is the original part designed and produced by the vehicle manufacturer.
O-Ring for the oil pump inlet tube, part of the oil pump, sump and filter assembly.

It seals the joint at the oil pump inlet (pick-up) tube, keeping the suction side of the lubrication circuit airtight so the pump draws oil from the sump without drawing in air. Used on the 5.0L AJ133 V8 petrol engine, naturally aspirated and supercharged, and on the 3.0L supercharged V6 petrol engine.

Renew whenever the sump or the oil pump inlet tube is disturbed.
Vehicle Model Land Rover Defender New 2020+
Land Rover Discovery 4 2010-2016 (L319)
Land Rover Discovery 5 2017+ (L462)
Range Rover 2002-2012 (L322)
Range Rover 2013-2022 (L405)
Range Rover Sport 2005-2013 (L320)
Range Rover Sport 2014-2022 (L494)
Range Rover Velar 2017+ (L560)
Fitment Notes Oil pump inlet tube O-ring (JLR callout 6643A; AllMakes qualifier 'O-Ring for inlet tube'). Fits 3.0L DOHC GDI SC V6 Petrol and 5.0L V8 Petrol AJ133 (NA and Supercharged) engines.
DISCOVERY 4 2010-2016 — 5.0L V8 AJ133 from (V)AA000001; 3.0L SC V6 (V)EA000001-(V)EA999999 and Solihull build from (V)FA000001
DISCOVERY 5 2017 — 3.0L SC V6, Solihull build from (V)FA000001, Nitra build from (V)K2000001
NEW DEFENDER 2020 (L663) — 5.0 Petrol AJ133 DOHC CDA, Nitra Plant Build from (V)M2000001
RANGE ROVER L322 2010-2012 — 5.0L V8 AJ133 NA and Supercharged
RANGE ROVER L405 2013 onwards — 3.0L SC V6 and 5.0L V8 AJ133 NA/SC/DOHC CDA
RANGE ROVER SPORT L320 2010-2013 — 5.0L V8 AJ133 NA and Supercharged
RANGE ROVER SPORT L494 2014 onwards — 3.0L SC V6 and 5.0L V8 AJ133 Supercharged
RANGE ROVER VELAR 2017 — per JLR EPC
AllMakes category: Engine Parts / Oil Pump - Pan-Sump and Filter.
Alternative Codes
LR011205LR

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

  • Netherlands / Belgium / Germany: 2–4 working days after dispatch.
  • Other EU countries + UK: 4–8 working days after dispatch.
  • Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the LR011205LR O-ring used for?
The LR011205LR is a genuine O-ring for the oil pump inlet tube on petrol Land Rover engines. It seals the inlet tube where it meets the oil pump, keeping the oil pickup airtight so the pump draws oil without leaks. It fits the 3.0 V6 and 5.0 V8 petrol engines.
Where does this O-ring fit on the engine?
This O-ring seals the oil pump inlet tube, the pickup that feeds oil from the sump to the oil pump, on the 3.0L SC V6 and 5.0L V8 AJ133 petrol engines. It sits low in the engine and is usually accessed with the sump removed.
Should this oil pump O-ring be replaced or reused?
This oil pump inlet O-ring should be replaced whenever the inlet tube is disturbed, not reused. O-rings take a set once fitted, and a reused seal can let the pump draw air and lose oil pressure. Fit a new one on reassembly for a reliable seal.
Which engines does this O-ring fit?
This oil pump inlet tube O-ring fits the 3.0L supercharged V6 petrol and 5.0L V8 AJ133 petrol engines used in the New Defender, Discovery 4, Discovery 5, Range Rover L322, L405, Range Rover Sport L320, L494, and Velar. It's a petrol engine seal, so confirm your engine type.
