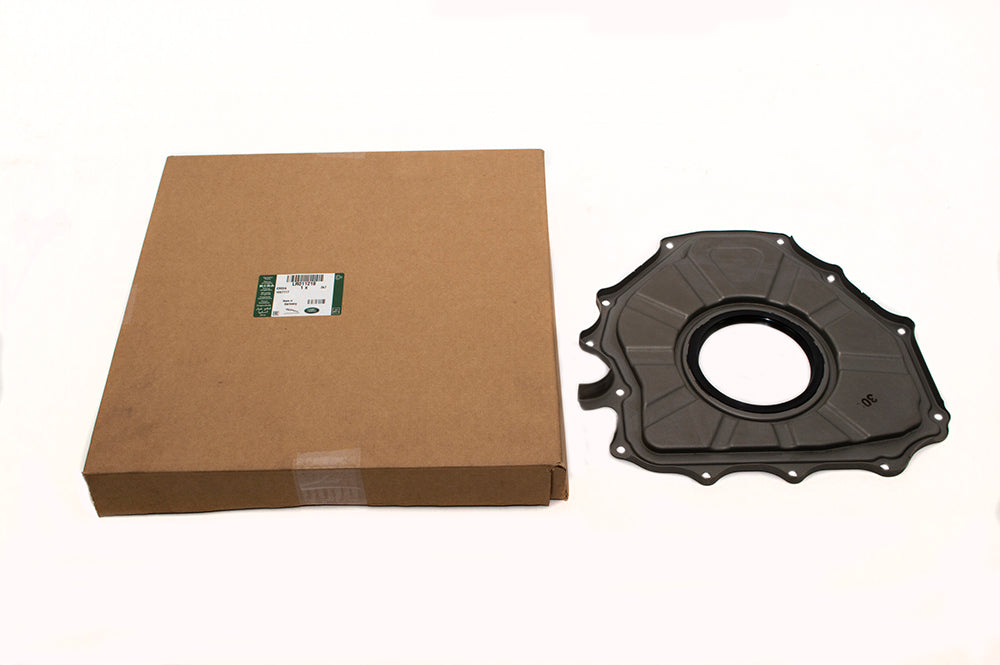

LR011219LR - Retainer and Seal - Crankshaft by LAND ROVEREngine Part Land Rover Range Rover

LR011219LR - Crankshaft Seal & Retainer – Rear

- €146,30
€146,30
€146,30 - €146,30
€146,30
Genuine Part
Genuine: Original manufacturer part. This product is the original part designed and produced by the vehicle manufacturer.
Rear Crankshaft Seal and Retainer - the rear main oil seal supplied complete with its retainer housing, sealing the crankcase at the transmission end of the engine.

The retainer bolts to the rear face of the cylinder block and the seal lip runs on the crankshaft rear flange, containing engine oil where the crankshaft passes out of the crankcase towards the flywheel or flexplate. The seal is supplied already fitted to its retainer, so the two are installed and replaced as one assembly.

Used on the 5.0L V8 AJ133 petrol engine in both naturally aspirated and supercharged form. Seal thickness 1mm. Replacement requires removal of the gearbox and the flywheel or flexplate to reach the rear of the block.
Vehicle Model Land Rover Discovery 4 2010-2016 (L319)
Range Rover 2002-2012 (L322)
Range Rover 2013-2022 (L405)
Range Rover Sport 2005-2013 (L320)
Range Rover Sport 2014-2022 (L494)
Range Rover Velar 2017+ (L560)
Fitment Notes DISCOVERY 4 2010-2016 — 5.0L V8 Petrol (AJ133)
RANGE ROVER (L322) 2010-2012 — 5.0L V8 Petrol NA/SC (AJ133)
RANGE ROVER (L405) 2013 on — 5.0L V8 Petrol (AJ133)
RANGE ROVER SPORT (L320) 2010-2013 — 5.0L V8 Petrol NA/SC (AJ133)
RANGE ROVER SPORT (L494) 2014 on — 5.0L V8 Petrol (AJ133)
RANGE ROVER VELAR — 5.0L V8 Petrol Supercharged (AJ133)
Rear crankshaft seal & retainer, 1mm thickness. Fitment by engine serial (from 12060619562) — VIN does not reflect actual timing. From VIN AA000001.
Alternative Codes
LR011219LR

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

  • Netherlands / Belgium / Germany: 2–4 working days after dispatch.
  • Other EU countries + UK: 4–8 working days after dispatch.
  • Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the rear crankshaft seal and retainer?
The rear crankshaft seal and retainer is the rear main oil seal supplied complete with its retainer housing. It seals the crankcase at the transmission end of the 5.0L V8 AJ133, with the seal lip running on the crankshaft rear flange.
Is the seal supplied separately or as an assembly?
The seal comes already fitted to its retainer, so the two are installed and replaced as one assembly. This seal is 1mm thick, and the retainer bolts to the rear face of the cylinder block.
How involved is fitting this seal?
Replacement requires removing the gearbox and the flywheel or flexplate to reach the rear of the block, so it's a specialist job. It's usually done when the clutch or gearbox is already out.
How do I confirm this fits my vehicle?
This fits the 5.0 V8 AJ133 in the Discovery 4, Range Rover L322 and L405, Sport L320 and L494, and Velar. Fitment is set by engine serial from 12060619562, as the VIN doesn't reflect the actual build timing.
