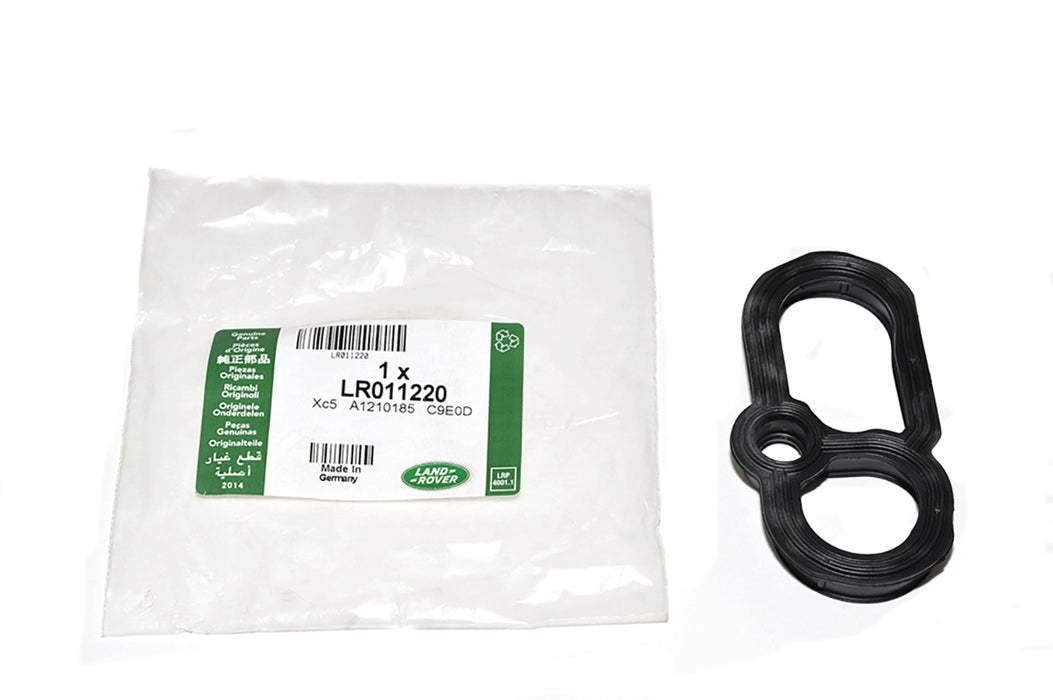

LR011220LR - Gasket - Spark Plug Aperture by LAND ROVEREngine Part Land Rover Range Rover

LR011220LR - Gasket – Spark Plug Aperture

- €26,60
€26,60
€26,60 - €26,60
€26,60
Genuine Part
Genuine: Original manufacturer part. This product is the original part designed and produced by the vehicle manufacturer.
Spark Plug Aperture Gasket for the right-hand camshaft cover, sealing the spark plug well against oil ingress.

The camshaft cover carries a tube for each spark plug, and this gasket seals the joint at that aperture so oil circulating under the cover cannot reach the plug recess. A perished gasket lets oil collect around the spark plug and ignition coil, which typically shows up as a misfire and can destroy the coil. One gasket is used per aperture on the right-hand cylinder bank.

Used on spark-ignition engines only - the 5.0L OHC SGDI V8 AJ133 petrol in naturally aspirated, supercharged and DOHC CDA form, and the 3.0L DOHC GDI supercharged V6 petrol. Renew whenever the camshaft cover is removed or the spark plugs are changed.
Vehicle Model Land Rover Defender New 2020+
Land Rover Discovery 4 2010-2016 (L319)
Land Rover Discovery 5 2017+ (L462)
Range Rover 2002-2012 (L322)
Range Rover 2013-2022 (L405)
Range Rover Sport 2005-2013 (L320)
Range Rover Sport 2014-2022 (L494)
Range Rover Velar 2017+ (L560)
Fitment Notes RH SIDE ONLY, SPARK IGNITION ENGINES — Qty 4 per vehicle (JLR comment: RH Side Only, Spark Ignition)
DISCOVERY 4 2010-2016 — 5.0L OHC SGDI NA V8 Petrol (AJ133); 3.0L DOHC GDI SC V6 Petrol
DISCOVERY 5 2017+ — 3.0L DOHC GDI SC V6 Petrol (Solihull & Nitra build)
NEW DEFENDER 2020+ (L663) — 5.0 Petrol AJ133 DOHC CDA (Nitra build (V)M2000001>)
RANGE ROVER L322 2010-2012 — 5.0L V8 Petrol NA and SC (AJ133)
RANGE ROVER L405 2013-2022 — 5.0L V8 Petrol NA/SC (AJ133); 3.0L DOHC GDI SC V6 Petrol
RANGE ROVER SPORT L320 2010-2013 — 5.0L V8 Petrol NA and SC (AJ133)
RANGE ROVER SPORT L494 2014-2022 — 5.0L V8 Petrol SC (AJ133); 3.0L DOHC GDI SC V6 Petrol
RANGE ROVER VELAR 2017+ — 3.0L DOHC GDI SC V6 Petrol; 5.0L supercharged enhanced ((V)KA000001>)
Alternative Codes
LR011220LR

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

  • Netherlands / Belgium / Germany: 2–4 working days after dispatch.
  • Other EU countries + UK: 4–8 working days after dispatch.
  • Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What does the spark plug aperture gasket seal?
The spark plug aperture gasket seals the spark plug well in the right-hand camshaft cover against oil ingress on spark-ignition petrol engines. The cover carries a tube for each plug, and this gasket seals that joint so oil circulating under the cover cannot reach the plug recess.
How many spark plug aperture gaskets are needed?
4 of these gaskets are fitted per vehicle, on the right-hand camshaft cover only. They are typically replaced together when the camshaft cover is removed or when oil is found in the plug wells, so order the full set for the job.
What happens if the spark plug aperture gasket fails?
A failed gasket lets engine oil seep into the spark plug wells, which can foul plugs, cause misfires, and damage ignition coils on these petrol engines. Oil sitting in the plug recess is the usual sign the gasket has perished and needs renewing.
Which engines use this gasket?
This gasket fits right-hand spark-ignition petrol engines including the 5.0L V8 AJ133 and 3.0L SC V6 petrol, across models such as the Discovery 4 and 5, New Defender, Range Rover L322 and L405, Range Rover Sport, and Velar. It does not apply to diesel engines.
