LR013235LR - Gasket - Oil Return Hose by LAND ROVEREngine Part Land Rover Range Rover

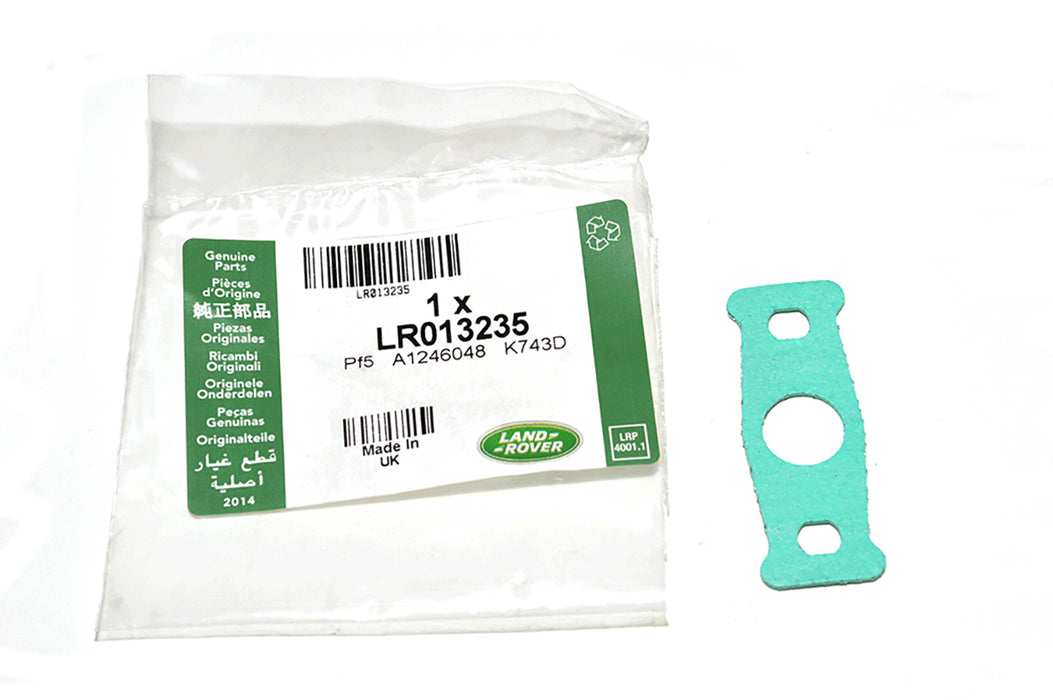

LR013235LR - Turbo Oil Return Hose Gasket

- €7,50
€7,50
€7,50 - €7,50
€7,50
Tip: Log in to your account to unlock volume discounts on this item.
Genuine Part
Genuine: Original manufacturer part. This product is the original part designed and produced by the vehicle manufacturer.
Turbo Oil Return Hose Gasket seals the upper joint of the turbocharger oil return hose, where the hose meets the turbocharger housing in the engine lubrication circuit.

Oil supplied to the turbocharger bearings drains back to the sump through this hose under gravity, so the joint must stay oil-tight to avoid leaks onto the hot exhaust side and to keep the drain flowing freely. The same gasket suits both the left-hand primary and right-hand secondary turbocharger positions.

Fitted to the 3.0L V6 turbo diesel engine. Renew whenever the return hose is disturbed.
Vehicle Model Land Rover Discovery 4 2010-2016 (L319)
Land Rover Discovery 5 2017+ (L462)
Range Rover 2013-2022 (L405)
Range Rover Sport 2005-2013 (L320)
Range Rover Sport 2014-2022 (L494)
Range Rover Velar 2017+ (L560)
Fitment Notes Turbocharger oil return hose gasket (upper). Fits both LH primary and RH secondary turbo positions.
DISCOVERY 4 2010-2016 — 3.0L V6 diesel, from (V)AA000001
DISCOVERY 5 2017+ — 3.0L V6 diesel (Gen2 mono/twin turbo), from (V)AA000001 / Solihull (V)FA000001 / Nitra (V)K2000001
RANGE ROVER L405 2013-2022 — 3.0L V6 diesel, incl. AJ20D6
RANGE ROVER SPORT L320 2010-2013 — 3.0L V6 diesel, from (V)AA000001
RANGE ROVER SPORT L494 2014-2022 — 3.0L V6 diesel
RANGE ROVER VELAR 2017+ — 3.0L V6 diesel
Alternative Codes
LR013235LR

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

  • Netherlands / Belgium / Germany: 2–4 working days after dispatch.
  • Other EU countries + UK: 4–8 working days after dispatch.
  • Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What does the LR013235LR turbo oil return gasket do?
The LR013235LR seals the turbocharger oil return hose where it drains oil back to the sump on the 3.0 litre V6 diesel. It stops oil leaks at the return connection and fits both the LH primary and RH secondary turbo positions.
How many of these gaskets might I need?
On twin-turbo 3.0 V6 diesels there are two turbo positions, an LH primary and RH secondary, so a job covering both turbos can need more than one gasket. Check how many oil return connections you're disturbing before ordering.
Should this gasket be replaced when the hose is removed?
Yes, this oil return gasket is typically single-use. Once the hose is unbolted the old gasket can weep, so fit a new LR013235LR whenever the turbo oil return hose is removed on the 3.0 V6 diesel.
Which vehicles does this gasket fit?
This gasket fits the Discovery 4 and 5, Range Rover L405, Range Rover Sport L320 and L494, and Range Rover Velar with the 3.0 litre V6 diesel. Confirm your engine by VIN before ordering.
