LR014345 - Spark Plug Gasket – LH

- €6,50

€6,50

€6,50 - €6,50

€6,50

Tip: Log in to your account to unlock volume discounts on this item.

Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

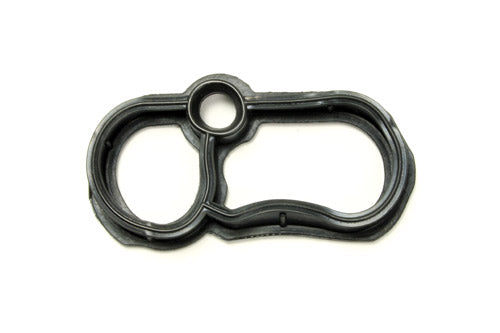

Spark Plug Gasket - LH seals the spark plug apertures in the left-hand cylinder head cover (cam cover). It keeps engine oil out of the spark plug wells, through which the ignition coils and plugs pass into the cover.

Fitted to the left bank of the petrol V6 and V8 (AJ133) engines.

Vehicle Model Land Rover Defender New 2020+
Land Rover Discovery 4 2010-2016 (L319)
Land Rover Discovery 5 2017+ (L462)
Range Rover 2002-2012 (L322)
Range Rover 2013-2022 (L405)
Range Rover Sport 2005-2013 (L320)
Range Rover Sport 2014-2022 (L494)
Range Rover Velar 2017+ (L560)

Fitment Notes DISCOVERY 4 2010-2016 — LH cylinder head cover spark plug aperture gasket; 3.0L DOHC GDI SC V6 Petrol from (V)EA000001; 5.0L OHC SGDI NA V8 Petrol from (V)AA000001
DISCOVERY 5 2017> — LH cylinder head cover spark plug aperture gasket; 3.0L DOHC GDI SC V6 Petrol, Solihull and Nitra plant
NEW DEFENDER 2020> — LH cylinder head cover spark plug aperture gasket; 5.0L Petrol AJ133 DOHC CDA, Nitra plant, from (V)M2000001
RANGE ROVER 2002-2012 — LH cylinder head cover spark plug aperture gasket; 5.0L OHC SGDI SC/NA V8 Petrol (AJ133), from (V)AA000001
RANGE ROVER 2013-2022 — LH cylinder head cover spark plug aperture gasket; 5.0L OHC SGDI SC/NA V8 Petrol (AJ133) and 3.0L DOHC GDI SC V6 Petrol, from (V)AA000001/(V)EA000001
RANGE ROVER SPORT 2005-2013 — LH cylinder head cover spark plug aperture gasket; 5.0L OHC SGDI SC/NA V8 Petrol (AJ133), from (V)AA000001
RANGE ROVER SPORT 2014-2022 — LH cylinder head cover spark plug aperture gasket; 5.0L OHC SGDI SC/NA V8 Petrol (AJ133) and 3.0L DOHC GDI SC V6 Petrol
RANGE ROVER VELAR 2017> — LH cylinder head cover spark plug aperture gasket; 3.0L DOHC GDI SC V6 Petrol and 5.0L supercharged enhanced, from (V)KA000001

Alternative Codes

LR014345

In stock 4 units

0 · Gouda 4 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Frequently asked questions

What does the LH spark plug gasket do?

The LH spark plug gasket seals the spark plug apertures in the left-hand cylinder head cover (cam cover). It keeps engine oil out of the spark plug wells, where the ignition coils and plugs pass down into the cover. Fitted to the petrol V6 and V8 (AJ133) engines.

Which engines and models does this gasket fit?

This LH spark plug gasket fits the 3.0L supercharged V6 petrol and 5.0L V8 (AJ133) petrol engines, across the Discovery 4 and 5, Range Rover (2002-2012 and 2013-2022), Range Rover Sport (2005-2013 and 2014-2022), Velar and New Defender. Confirm you have a petrol engine.

Is this the left-hand or right-hand gasket?

This is the left-hand (LH) cylinder head cover gasket. The V6 and V8 engines have a separate gasket for each bank, so check whether you need the LH side, the RH side, or both before ordering.

Should the spark plug gasket be replaced when removing the cam cover?

Yes, the spark plug gasket should typically be replaced whenever the cylinder head cover is removed, for example during a spark plug or coil change. These gaskets are usually single-use, and reusing one risks oil seeping into the plug wells.
