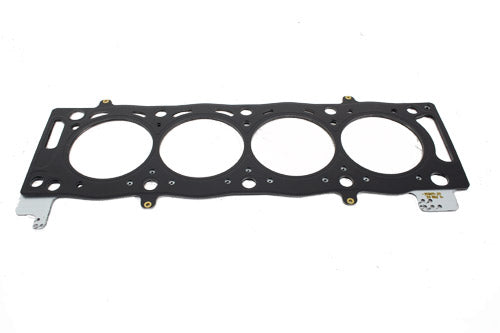

LR017305 - Gasket - Cylinder Head by REINZEngine Part Land Rover Range Rover

LR017305 - Head Gasket – 3 Holes – 1.35mm

- €48,70
€48,70
€48,70 - €48,70
€48,70
OEM Part
OEM: Made by an Original Equipment Manufacturer. This part is made by an original equipment manufacturer or under their license, ensuring compatibility and quality.
Brand REINZ
Cylinder Head Gasket seals the joint between the cylinder head and the cylinder block on the 2.2L 16V common-rail diesel engine (DW12), containing combustion pressure and keeping the coolant and oil galleries that cross the deck face separated.

This engine is built with a graded multi-layer steel head gasket: the identification holes denote the gasket thickness, and the correct grade is determined by measuring piston protrusion above the block deck face. This is the 3-hole, 1.35mm grade.

The cylinder head bolts are stretch (torque-to-yield) type and are renewed together with the gasket.
Vehicle Model Land Rover Discovery Sport 2015+ (L550)
Land Rover Freelander 2 2006-2014 (L359)
Range Rover Evoque 2012-2018 (L538)
Fitment Notes FREELANDER 2 2006-2014 — 2.2L Td4 CR DI 16V Diesel / 2.2L DOHC EFI TC DW12. From VIN (V)9H144476 onwards. 1.35mm, 3 Holes
DISCOVERY SPORT 2015 on — 2.2L CR DI 16V Diesel / 2.2L DOHC EFI TC DW12. 1.35mm, 3 Holes
RANGE ROVER EVOQUE 2012-2018 (L538) — 2.2L CR DI 16V Diesel / 2.2L DOHC EFI TC DW12. 1.35mm, 3 Holes
Alternative Codes
LR017305

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

  • Netherlands / Belgium / Germany: 2–4 working days after dispatch.
  • Other EU countries + UK: 4–8 working days after dispatch.
  • Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is this head gasket and what grade is it?
This is the cylinder head gasket for the 2.2L Td4 diesel engine, in the 3-hole, 1.35mm grade. The hole count and thickness identify the gasket grade, which must match your engine's piston protrusion. It's an OEM REINZ gasket carrying Land Rover number LR017305.
Which models does this head gasket fit?
This head gasket fits the 2.2L Td4 diesel in the Freelander 2 (2006-2014, from VIN 9H144476), Discovery Sport (2015 on) and Range Rover Evoque L538 (2012-2018). It's specific to the 2.2 diesel, so confirm your engine before ordering.
How do I choose between the 1.35mm and 1.30mm head gasket?
The grade is set by measuring piston protrusion. This 3-hole, 1.35mm gasket is one grade, while the 2-hole, 1.30mm gasket (LR017304G) is another. Fitting the wrong grade affects compression height. Check your engine's original gasket marking or measure protrusion to select the correct grade.
