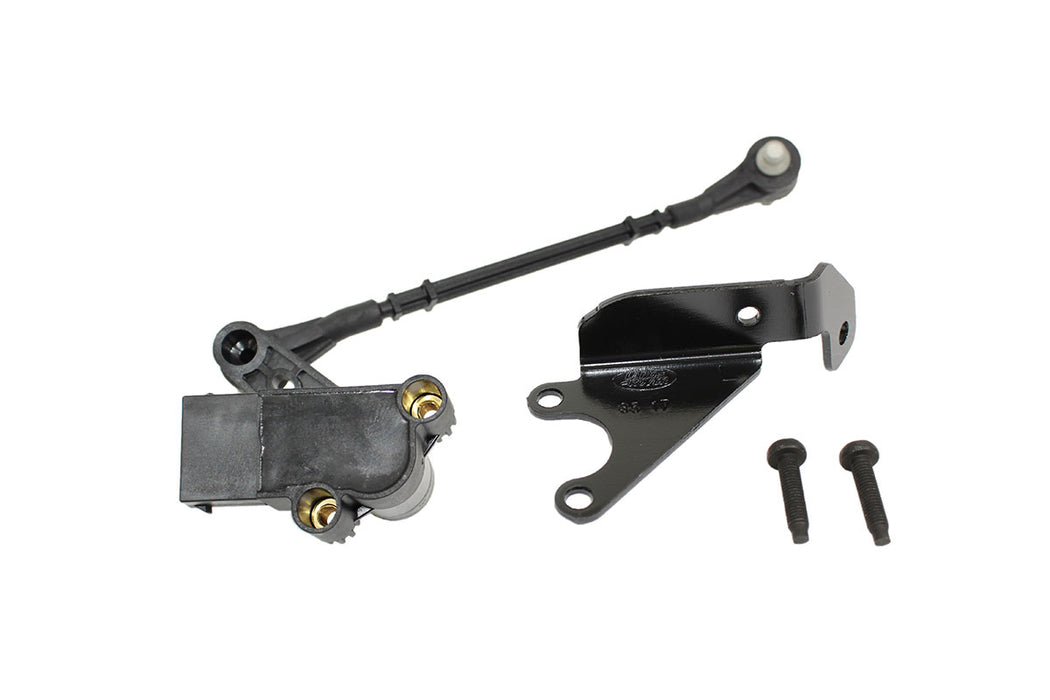

LR020626LR - Air Suspension Sensor by LAND ROVERElectrical Part Land Rover Range Rover

LR020626LR - Air Suspension Sensor

- €270,00
€270,00
€270,00 - €270,00
€270,00
Genuine Part
Genuine: Original manufacturer part. This product is the original part designed and produced by the vehicle manufacturer.
Air Suspension Ride Height Sensor - left-hand front height sensor within the electronic air suspension system.

The sensor measures ride height at the front left corner and reports it to the air suspension ECU, which regulates air spring pressure to hold the set ride height and keep the vehicle level under load. It mounts between the chassis and the front suspension arm through a link rod.

Left-hand front position; 10MY-type sensor.
Vehicle Model Range Rover 2002-2012 (L322)
Fitment Notes RANGE ROVER 2002-2009 (L322) — LH front air suspension ride height sensor, 10MY type. VIN 4A174108 to 9A999999
Alternative Codes
LR020626LR

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

  • Netherlands / Belgium / Germany: 2–4 working days after dispatch.
  • Other EU countries + UK: 4–8 working days after dispatch.
  • Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the LR020626LR Air Suspension Sensor?
The LR020626LR Air Suspension Sensor is the left-hand front ride height sensor in the electronic air suspension system. It measures ride height at the front left corner and reports it to the air suspension ECU, which regulates air spring pressure to hold the set ride height and keep the vehicle level. Genuine Land Rover part.
Which corner of the vehicle is this sensor for?
This sensor is the left-hand front ride height sensor only, the 10MY type. It mounts between the chassis and the front suspension arm through a link rod. If you need another corner, that's a different sensor, so match the position before ordering this left-front unit.
Which vehicles does it fit?
This air suspension sensor fits the Range Rover L322 from 2002 to 2009, VIN 4A174108 to 9A999999, as the 10MY-type left-hand front ride height sensor. Check your VIN against that range before ordering, since earlier and later L322 sensors differ. Genuine Land Rover reference LR020626LR.
What are the signs this sensor is failing?
A failing ride height sensor usually shows as a suspension fault warning, a corner sitting too high or too low, or the air suspension refusing to change height. On the Range Rover L322, a faulty front-left sensor feeds the ECU wrong data, so the system can't level that corner correctly.
