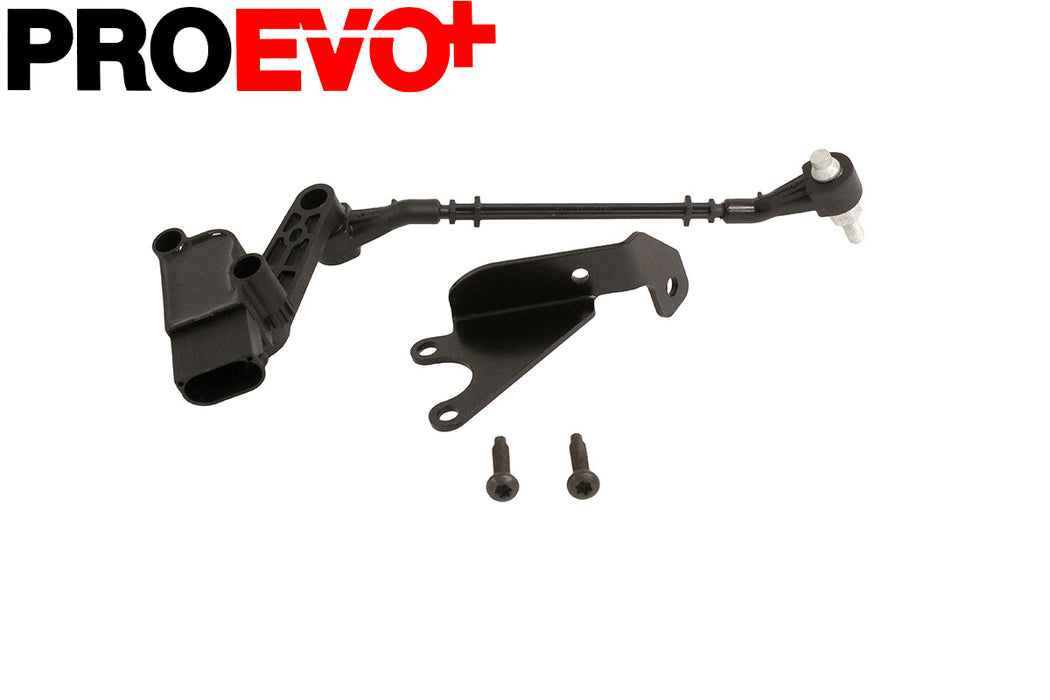

LR020626PR - Sensor - Ride Height - Air Suspension by PROEVO+Electrical Part Land Rover Range Rover

LR020626PR - Ride Height Sensor – Air Suspension – Front LH

- €50,30
€50,30
€50,30 - €50,30
€50,30
OEM Part
OEM: Made by an Original Equipment Manufacturer. This part is made by an original equipment manufacturer or under their license, ensuring compatibility and quality.
Brand PROEVO+
Ride Height Sensor is part of the electronic air suspension system, mounted at the front left-hand corner.

The sensor measures the distance between the chassis and the axle and reports it to the air suspension control module, which adjusts air spring pressure to maintain the set ride height under changing load and driving conditions.
Vehicle Model Range Rover 2002-2012 (L322)
Fitment Notes RANGE ROVER 2002-2009 (L322) — Air suspension height sensor, FRONT LH, all engines. 10MY type. VIN range from (V)4A174108 (JLR lists to (V)9A999999; Allmakes lists to (V)8A999999). JLR section: Air Suspension Controls/Electrics, callout 3C190E.
Alternative Codes
LR020626PR

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

  • Netherlands / Belgium / Germany: 2–4 working days after dispatch.
  • Other EU countries + UK: 4–8 working days after dispatch.
  • Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What does the ride height sensor (LR020626PR) do?
The ride height sensor LR020626PR measures the position of the front left suspension so the air suspension ECU can keep the vehicle at the correct ride height. It links to the lower suspension and reports movement. A faulty sensor causes uneven ride height or suspension fault warnings.
Which Range Rover does this front LH sensor fit?
Ride height sensor LR020626PR fits the Range Rover L322 (2002-2009), front left-hand air suspension, all engines, from VIN 4A174108. It's the 10MY type sensor. Confirm your VIN and corner (front left) before ordering, as sensors are position-specific.
What are the signs a ride height sensor needs replacing?
A failing ride height sensor typically shows as the air suspension sitting unevenly, a suspension fault message, or the vehicle dropping on one corner. Worn linkages or internal sensor faults are the usual causes on the L322. It's a front left position part, so replace the matching corner to restore correct levelling.

Alternative & Related Options

Same part, different brands or quality grades. Click any option to view full details.

1 option
No image
OEM RQH500430 - Height Sensor
Stock 0
€108,00 excl. VAT
View →
