LR022164 - Sensor by Autotec Components Land Rover Range Rover

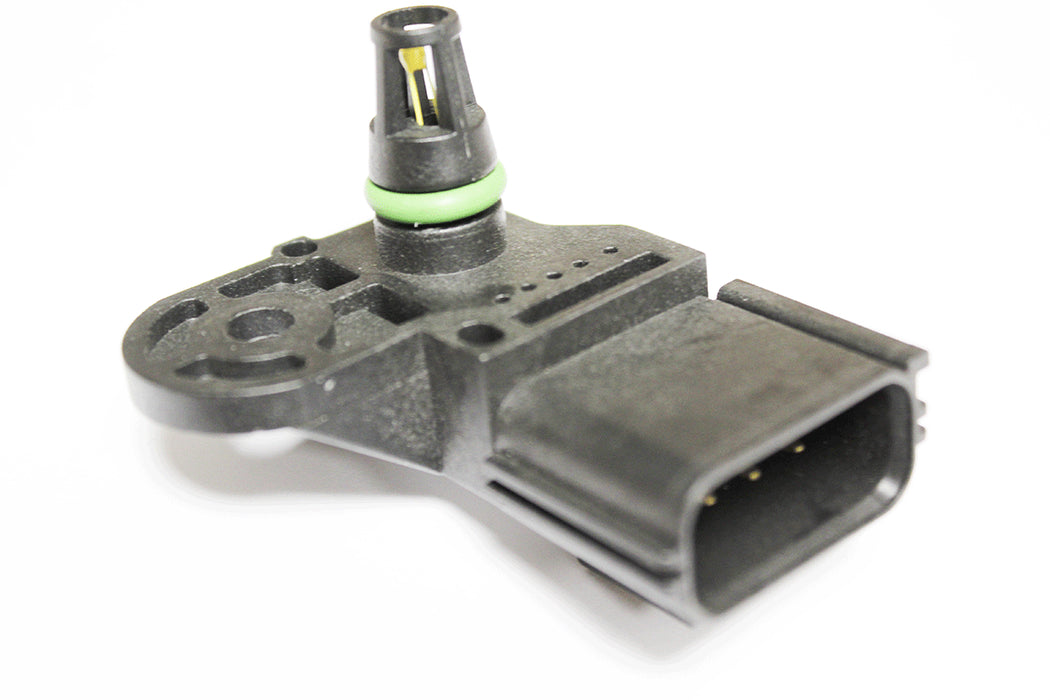

LR022164 - MAP Sensor – Manifold Absolute Pressure

- €70,30
€70,30
€70,30 - €70,30
€70,30
OEM Part
OEM: Made by an Original Equipment Manufacturer. This part is made by an original equipment manufacturer or under their license, ensuring compatibility and quality.
Brand Autotec Components
Manifold Absolute Pressure (MAP) Sensor for the air intake and emission control system.

The sensor mounts in the intake manifold and measures the absolute pressure of the charge air downstream of the turbocharger. The engine control module combines this signal with intake air temperature and engine speed to calculate air mass, and uses it to control fuelling, boost pressure and exhaust gas recirculation.

Applies to the 2.2 and 2.4 litre diesel engines. A faulty or drifting sensor commonly presents as reduced power, uneven running or a stored boost or EGR fault code.
Vehicle Model Land Rover Defender up to 2016
Fitment Notes DEFENDER 2007-2016 (Puma, L316) — MAP (manifold absolute pressure) sensor. 2.2D and 2.4D engines. Emission Control — Valves/Hoses. From (V)7A000001 to (V)BA999999.
JLR comment: MAP Sensor. Qty 1 per vehicle.
Alternative Codes
LR022164

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

  • Netherlands / Belgium / Germany: 2–4 working days after dispatch.
  • Other EU countries + UK: 4–8 working days after dispatch.
  • Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What does the MAP sensor do?
LR022164 is the manifold absolute pressure (MAP) sensor, mounted in the intake manifold to measure the absolute pressure of the charge air after the turbocharger. The engine control module uses this with intake temperature and engine speed to calculate air mass and control fuelling, boost and EGR. Fitted to the Defender 2007-2016.
Which Defender engines use LR022164?
LR022164 fits the Defender 2007-2016 (Puma, L316) with the 2.2D and 2.4D diesel engines, from VIN 7A000001 to BA999999. One sensor is used per vehicle. Confirm your Defender runs the 2.2 or 2.4 diesel and check the VIN range before ordering.
What are the symptoms of a faulty MAP sensor?
A faulty MAP sensor typically causes poor running, black smoke, reduced power, or a stored fault code on the 2.2D or 2.4D Defender, because the ECU miscalculates air mass and fuelling. Boost control can also be affected. Replacing LR022164 restores an accurate manifold pressure signal.
