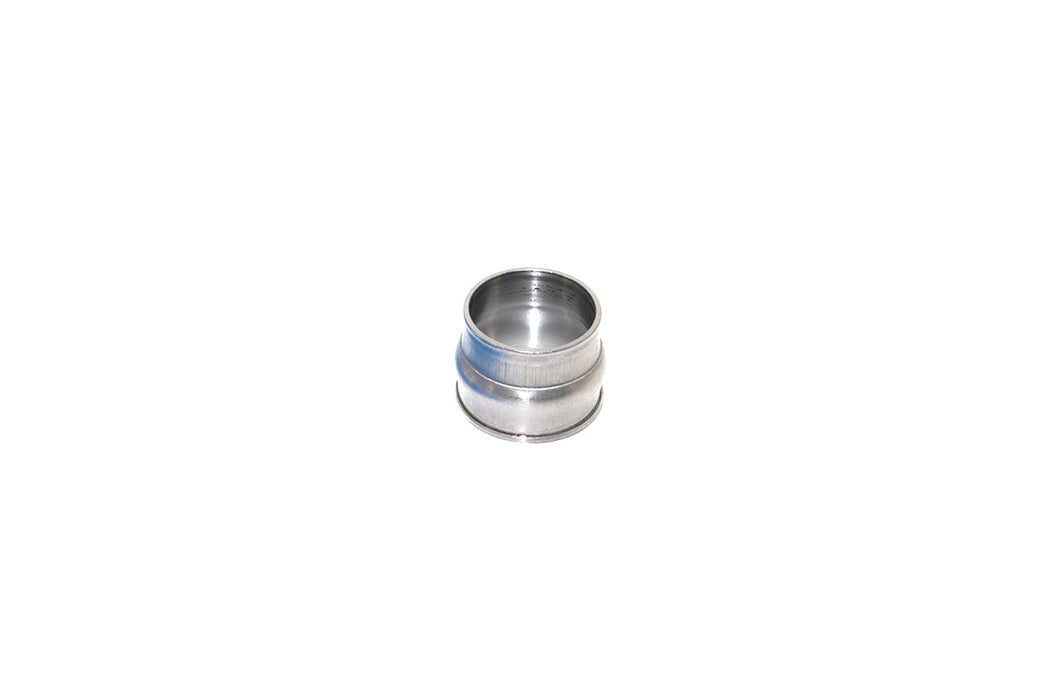

LR023443 - Pinion Bearing Spacer – Rear Axle

- €22,50

€22,50

€22,50 - €22,50

€22,50

Genuine: Original manufacturer part. This product is the original part designed and produced by the vehicle manufacturer.

Pinion Bearing Spacer fits over the drive pinion shaft in the rear axle differential, between the pinion head and tail bearings.

It sets and maintains the correct pinion bearing preload, holding the bearings at their specified clearance for quiet, durable final-drive operation.

Vehicle Model Land Rover Freelander 2 2006-2014 (L359)

Fitment Notes FREELANDER 2 2006-2014 — Rear axle, pinion bearing spacer. 6-Speed Auto AWF21 AWD or 6-Speed Manual M66 AWD.

Alternative Codes

LR023443

In stock 1 unit

0 · Gouda 1 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What does the pinion bearing spacer do on a Freelander 2 rear axle?

The pinion bearing spacer sits on the drive pinion shaft inside the Freelander 2 (2006-2014) rear differential, between the head and tail bearings. It sets and holds the correct pinion bearing preload, keeping the bearings at their specified clearance for quiet, durable final-drive operation.

Where is this spacer fitted in the axle?

It's fitted in the rear axle differential, over the drive pinion shaft. On the Freelander 2 this covers both the 6-speed AWF21 automatic AWD and the M66 6-speed manual AWD driveline. It works with the pinion head and tail bearings to maintain final-drive preload.

How many pinion bearing spacers are needed for a differential rebuild?

Typically one pinion bearing spacer is needed per differential. It's installed when the rear diff is stripped to renew the pinion bearings or seal, since correct preload can't be reset without removing the pinion. It's usually fitted as part of a full pinion bearing job, not on its own.

Can the pinion bearing spacer be reused once the diff is opened?

Usually the pinion bearing spacer is renewed whenever the rear differential is rebuilt. Preload spacers are typically fitted fresh so bearing clearance can be set accurately, and reusing a collapsed spacer can leave the pinion bearings too loose or too tight. Check the workshop manual for the spacer type fitted.
