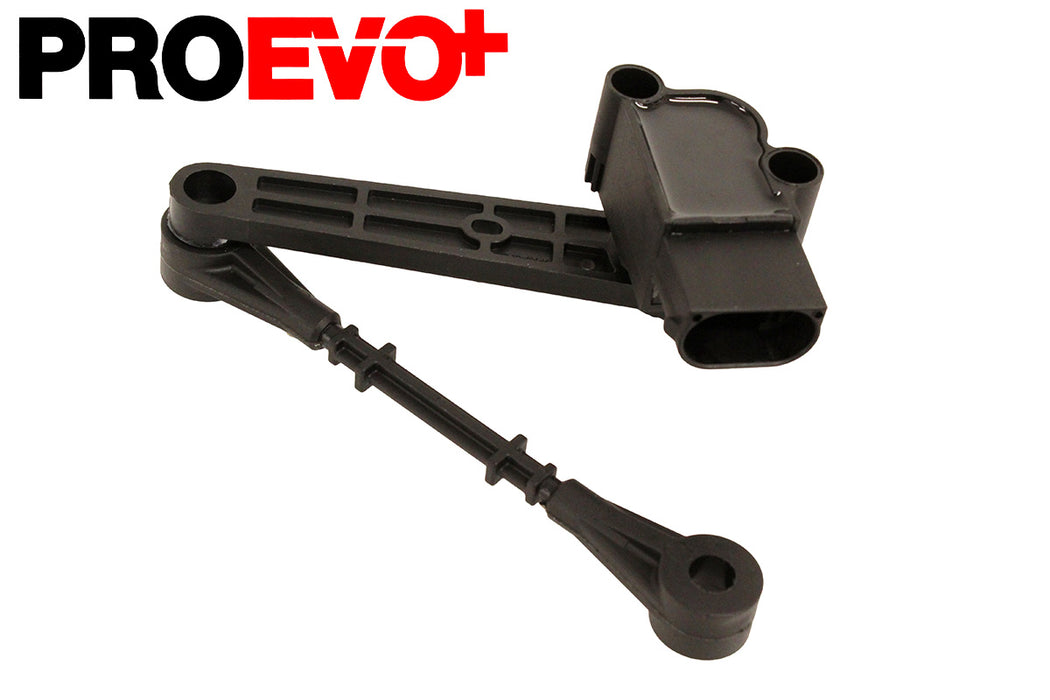

LR023648PR - Sensor - Ride Height - Air Suspension by ProEvo+Electrical Part Land Rover Range Rover

LR023648PR - Ride Height Sensor – Rear – Air Suspension

- €50,30
€50,30
€50,30 - €50,30
€50,30
OEM Part
OEM: Made by an Original Equipment Manufacturer. This part is made by an original equipment manufacturer or under their license, ensuring compatibility and quality.
Brand ProEvo+
Ride Height Sensor for the electronic air suspension system, monitoring rear ride height.

The sensor links to the rear suspension arm and reports its angular position to the air suspension control module, which regulates air spring pressure to keep the vehicle level under load and to carry out ride height changes. This is the rear sensor for the standard air suspension configuration, without Continuous Variable Damping (CVD).

A failed or out-of-range sensor commonly sets a suspension fault and can prevent automatic height adjustment.
Vehicle Model Land Rover Discovery 4 2010-2016 (L319)
Range Rover Sport 2005-2013 (L320)
Fitment Notes Air suspension ride height sensor. JLR callout 3C190B.
DISCOVERY 4 2010-2016 — with four-corner air suspension, from (V)AA000001
RANGE ROVER SPORT 2010-2013 (L320) — air suspension controls/electrics, from (V)AA000001
Alternative Codes
LR023648PR

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

  • Netherlands / Belgium / Germany: 2–4 working days after dispatch.
  • Other EU countries + UK: 4–8 working days after dispatch.
  • Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the LR023648PR ride height sensor and what does it do?
The LR023648PR is a rear ride height sensor for the electronic air suspension. It links to the rear suspension arm and reports its angular position to the air suspension module, which adjusts air spring pressure to keep the vehicle level. This is the standard air suspension version, without CVD.
Where is this ride height sensor fitted?
This sensor mounts at the rear, linked to the rear suspension arm, and feeds ride height data to the air suspension control module. It belongs to the air suspension electrics and controls automatic levelling.
What are the signs this ride height sensor has failed?
A failed or out-of-range ride height sensor commonly sets a suspension fault warning and can stop the air suspension adjusting height automatically. The car may sit unevenly or refuse to change height until the sensor is replaced.
Which models take this rear ride height sensor?
This fits the Discovery 4 (2010-2016) with four-corner air suspension and the Range Rover Sport L320 (2010-2013). It's the sensor for standard air suspension without Continuous Variable Damping, so confirm your setup before ordering.
