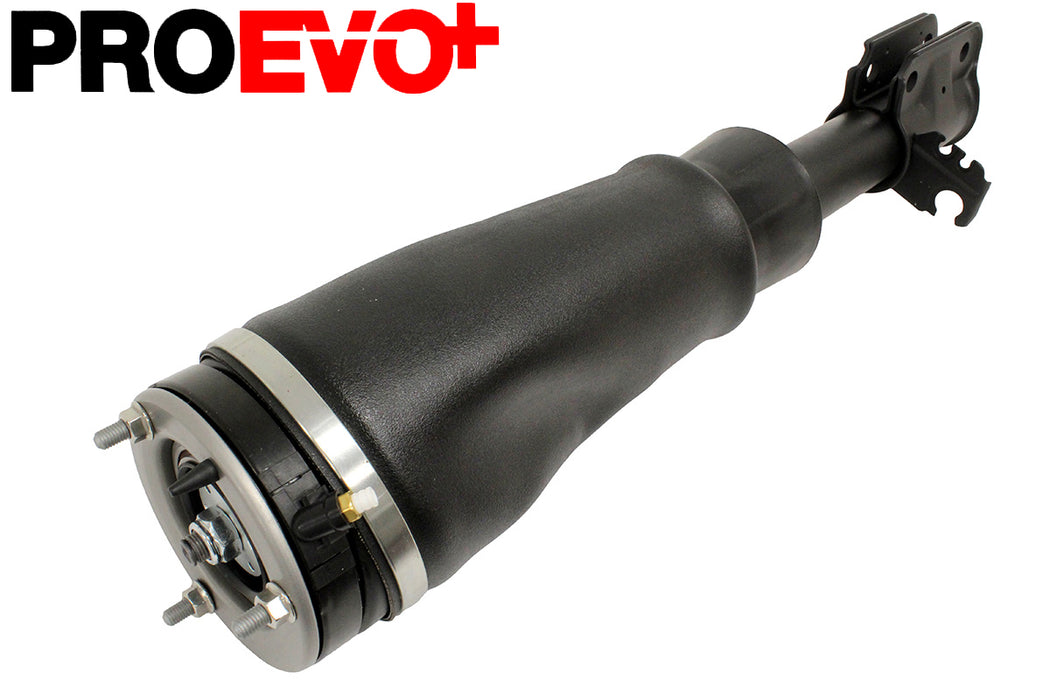

LR032560PR - Shock Absorber & Air Spring

- €450,00

€450,00

€450,00 - €450,00

€450,00

FYI: This product’s size or weight exceeds standard limits, so extra shipping fees could apply.

OEM: Made by an Original Equipment Manufacturer. This part is made by an original equipment manufacturer or under their license, ensuring compatibility and quality.

Brand ProEvo+

Shock Absorber & Air Spring is a front corner unit of the electronic air suspension system, integrating a continuously variable damping (CVD) shock absorber with an air spring in a single assembly.

The air spring carries and levels the corner load while the CVD damper continuously adjusts its rate to road surface and driving conditions. The unit mounts between the lower suspension arm and the body in place of a conventional coil-over strut, and is controlled by the vehicle's air suspension and adaptive damping electronics.

Vehicle Model Range Rover 2002-2012 (L322)

Fitment Notes RANGE ROVER 2010-2012 — Front CVD Shock Absorber & Air Spring

Alternative Codes

LR032560PR

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

Netherlands / Belgium / Germany: 2–4 working days after dispatch.
Other EU countries + UK: 4–8 working days after dispatch.
Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the LR032560PR shock absorber and air spring?

The LR032560PR is a front corner air suspension unit for the Range Rover L322 (2010-2012), combining a continuously variable damping (CVD) shock absorber and an air spring in one assembly. The air spring carries and levels the corner while the CVD damper adjusts its rate to road conditions.

Where does this air suspension unit fit on the Range Rover L322?

This unit fits a front corner of the Range Rover L322 (2010-2012), mounting between the lower suspension arm and the body in place of a coil-over strut. It's controlled by the vehicle's air suspension and adaptive damping electronics. Each unit covers one side, so a matched front pair is typically replaced together.

What are the signs this front air suspension unit is failing?

A sagging or slow-rising front corner, air suspension fault warnings, knocking over bumps or visible oil leakage typically signal a failing CVD shock absorber and air spring on the L322. The air spring can perish and leak with age. Replacing the affected corner restores ride height and damping.

Does this fit a Range Rover L322 without adaptive damping?

This is the continuously variable damping (CVD) version for Range Rover L322 (2010-2012) models with adaptive damping. Vehicles without adaptive damping use a different strut. Confirm your suspension specification by VIN before ordering, as the CVD and conventional units aren't interchangeable.
