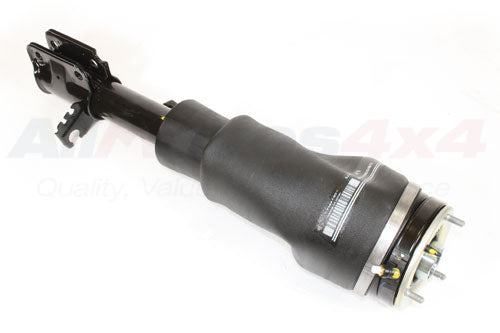

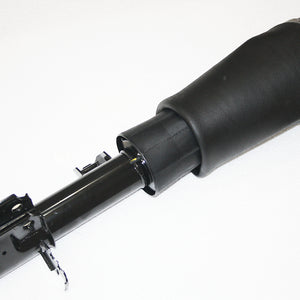

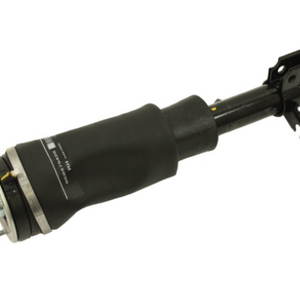

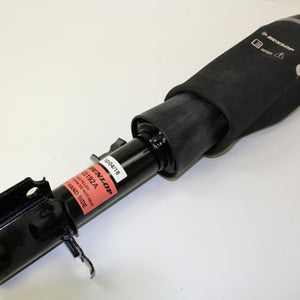

LR032570 - Air Strut – LH

- €410,00

€410,00

€410,00 - €410,00

€410,00

OEM: Made by an Original Equipment Manufacturer. This part is made by an original equipment manufacturer or under their license, ensuring compatibility and quality.

Brand Dunlop

Air Strut - LH is the left-hand front air suspension strut, a MacPherson-type unit combining a hydraulic damper and an air spring in a single corner assembly.

The air spring supports and levels the front corner load while the integral damper controls wheel movement. This is the conventional damping variant, without continuously variable (adaptive) damping, for 5.0L V8 petrol (AJ133) applications. It mounts between the lower suspension arm and the body in place of a coil-over strut and is regulated by the vehicle's air suspension electronics.

Vehicle Model Range Rover 2002-2012 (L322)

Fitment Notes RANGE ROVER L322 2010-2012 — Front air suspension strut (damper + air spring), LH. Less Adaptive Damping variant

Alternative Codes

LR0325703C098LR032575RNB500550RNB501050RNB501050XRNB501270RNB501350RNB501410RNB501530RNB501550

In stock 2 units

1 · Gouda 1 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the LR032570 air strut?

The LR032570 is the left-hand front air suspension strut for the Range Rover L322 (2010-2012). It's a MacPherson-type unit combining a hydraulic damper and an air spring in one corner assembly. The air spring supports and levels the front corner while the damper controls wheel movement.

How is the LR032570 different from the adaptive damping strut?

The LR032570 is the conventional damping variant, without continuously variable (adaptive) damping, fitted to the left-hand front of the Range Rover L322 (2010-2012). Models with adaptive damping use a different strut. It's the LH side only, so check both side and damping type by VIN before ordering.

Where does the LR032570 air strut fit on the Range Rover L322?

The LR032570 fits the left-hand front corner of the Range Rover L322 (2010-2012), mounting between the lower suspension arm and the body in place of a coil-over strut. The vehicle's air suspension electronics regulate ride height. It typically suits 5.0L V8 petrol (AJ133) applications.

What are the signs the LR032570 air strut needs replacing?

A sagging or slow-rising left front corner, air suspension warning messages, knocking over bumps or air leaks typically signal the LR032570 strut is failing on the L322. The air spring perishes and leaks with age. Replacing the strut restores ride height and damping on that corner.
