LR032862LR - Rrevq Oil Cooler Hose by Land RoverEngine Part Land Rover Range Rover Range Rover Evoque

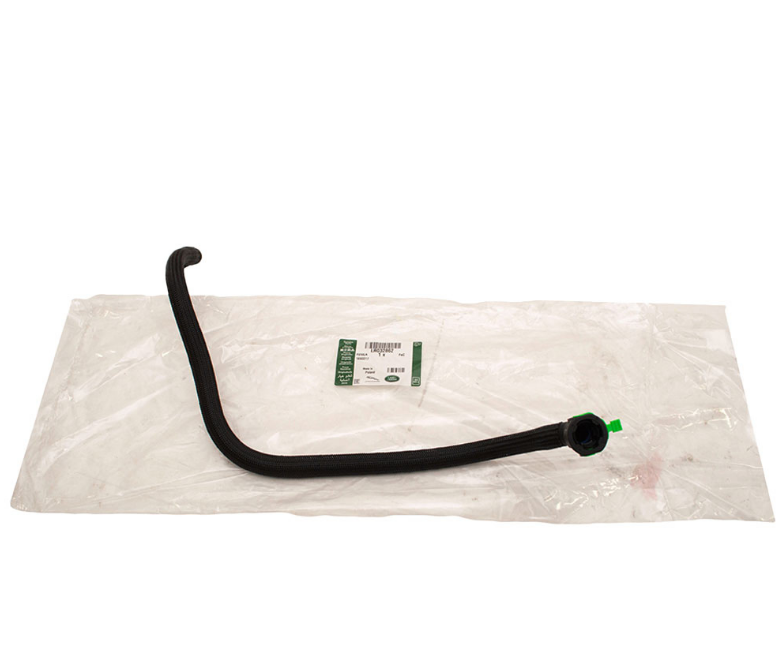

LR032862LR - Transmission Oil Cooler Hose

- €36,50
€36,50
€36,50 - €36,50
€36,50
Genuine Part
Genuine: Original manufacturer part. This product is the original part designed and produced by the vehicle manufacturer.
Transmission Oil Cooler Hose for the automatic transmission fluid cooling circuit.

The hose carries automatic transmission fluid between the gearbox and the transmission oil cooler, forming part of the loop that regulates fluid temperature. Fitted with the AWF21 six-speed automatic transmission (2.0L petrol and 2.2L diesel applications).
Vehicle Model Range Rover Evoque 2012-2018 (L538)
Fitment Notes RANGE ROVER EVOQUE 2012-2018 (L538) — Transmission oil cooler hose. 2.0L Petrol & 2.2L Diesel, 6-speed auto AWF21 AWD.
Alternative Codes
LR032862LR032862LR

In stock 1 unit
0 · Gouda 1 · Drachten
Express delivery available

When will my order arrive?
  • Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
  • UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
  • Netherlands / Belgium / Germany: 2–4 working days.
  • Other EU countries + UK: 4–8 working days.
  • Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What does the LR032862 transmission oil cooler hose do?
The LR032862 transmission oil cooler hose carries automatic transmission fluid between the AWF21 6-speed gearbox and its cooler on the Range Rover Evoque L538 (2012-2018). It keeps the auto transmission fluid at working temperature.
Where is this hose located on the Evoque?
It runs between the AWF21 automatic transmission and the transmission oil cooler on the Range Rover Evoque L538. Routing is in the engine bay on 2.0 petrol and 2.2 diesel AWD models.
Which Evoque engines and gearbox does this fit?
This fits the Range Rover Evoque L538 with the 2.0L petrol or 2.2L diesel engine and the AWF21 6-speed automatic gearbox, AWD. Confirm your engine and transmission before ordering.
Why do these transmission cooler hoses fail?
On the Evoque L538 these hoses typically fail through perishing, cracking, or a weeping connection with age and heat cycling. A leak shows as red or brown transmission fluid under the car and can lead to low fluid level.
