LR035493 - Drive Belt Tensioner by AllmakesEngine Part Land Rover Range Rover

LR035493 - Drive Belt Tensioner

- €92,00
€92,00
€92,00 - €92,00
€92,00
Aftermarket Part
Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

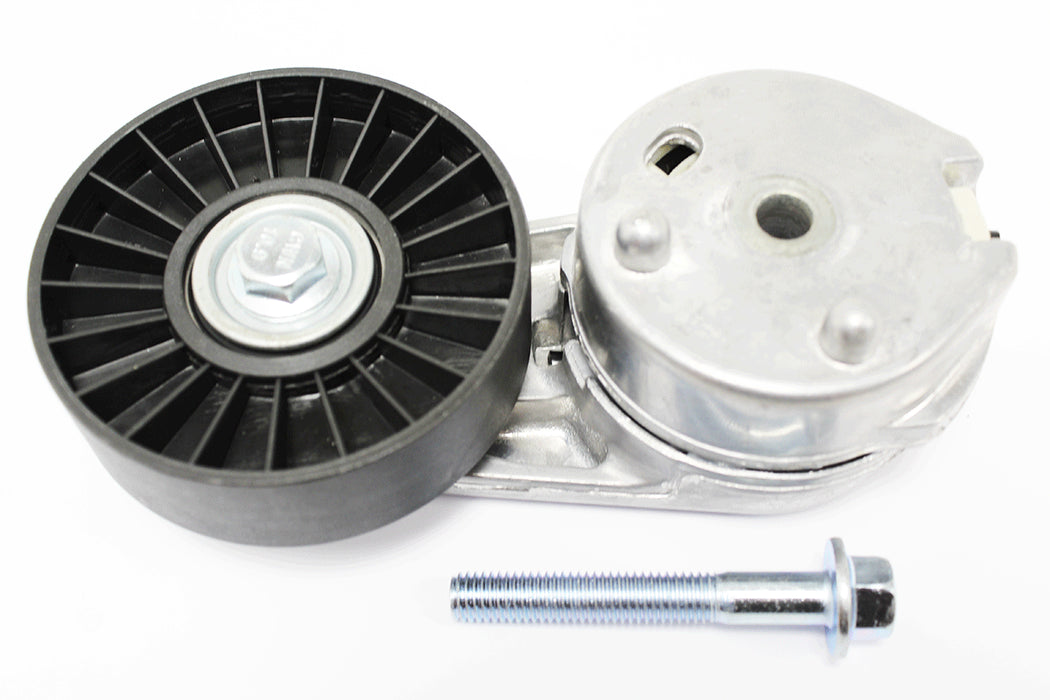

Drive Belt Tensioner - maintains correct tension on the front accessory (auxiliary) drive belt.

The sprung tensioner assembly applies constant load to the belt driving the engine ancillaries, compensating for belt stretch and wear. Fitted to the 3.0L V6 (and Lion 2.7 V6 Td6) turbo diesel.
Vehicle Model Land Rover Discovery 4 2010-2016 (L319)
Range Rover 2013-2022 (L405)
Range Rover Sport 2005-2013 (L320)
Range Rover Sport 2014-2022 (L494)
Fitment Notes DISCOVERY 4 2010-2016 — 3.0L V6 DOHC 24V Diesel (Less ACE Suspension, Less Roll Stability Control, With Electronic Stability Control) and Lion 2.7 V6 Td6 Diesel (140KW). Front. From (V)AA000001.
RANGE ROVER L405 2013-2022 — 3.0L 24V V6 Turbo Diesel Std Flow, 3.0L 24V DOHC V6 TC Diesel, 3.0 V6 D Gen2 Mono/Twin Turbo, 3.0 V6 D Low MT ROW. 8-Speed Auto ZF 8HP70 4WD, Less ACE Suspension Front, Solihull plant build. VIN (V)AA000001 to (V)JA999999.
RANGE ROVER SPORT L320 2010-2013 — 3.0L 24V DOHC V6 TC Diesel, Less ACE Suspension Front. From (V)AA000001.
RANGE ROVER SPORT L494 2014-2022 — 3.0L V6 diesel variants (Gen2 Mono/Twin Turbo, Std Flow, Low MT ROW). Less ACE Suspension Front to (V)JA999999; With ACE Suspension Front from (V)JA999999.
JLR comment: "Drive Belt, Order If Original Part Number Is CPLA-6A228-AB" (order if the 6B209 tensioner number is CPLA-6A228-AB).
Qty 1 per vehicle.
Alternative Codes
LR035493

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

  • Netherlands / Belgium / Germany: 2–4 working days after dispatch.
  • Other EU countries + UK: 4–8 working days after dispatch.
  • Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the drive belt tensioner and what does it do?
The drive belt tensioner maintains correct tension on the front accessory (auxiliary) drive belt. The sprung assembly applies constant load to the belt driving the engine ancillaries, compensating for belt stretch and wear on the 3.0L V6 and 2.7 V6 Td6 diesel.
Which engines and models does it fit?
It fits the 3.0L V6 diesel and Lion 2.7 V6 Td6 on the Discovery 4, Range Rover L405, and Range Rover Sport L320 and L494. Fitment is for the diesel V6 applications listed for these models.
What are the signs the tensioner is failing?
A worn tensioner typically shows as belt squeal, a rattle from the front of the engine, or a slack, fluttering belt. A seized or failed tensioner can let the belt slip or come off entirely.
How do I confirm this is the right tensioner?
Land Rover notes this tensioner applies where the original part number is CPLA-6A228-AB, with one fitted per vehicle. Check the number on your existing tensioner to confirm before ordering.

Alternative & Related Options

Same part, different brands or quality grades. Click any option to view full details.

2 options
LR035493G - Drive Belt Tensioner
OEM LR035493G - Drive Belt Tensioner
Stock 0
€125,00 excl. VAT
View →
LR035493LR - Drive Belt Tensioner
Genuine LR035493LR - Drive Belt Tensioner
Stock 0
€220,00 excl. VAT
View →
