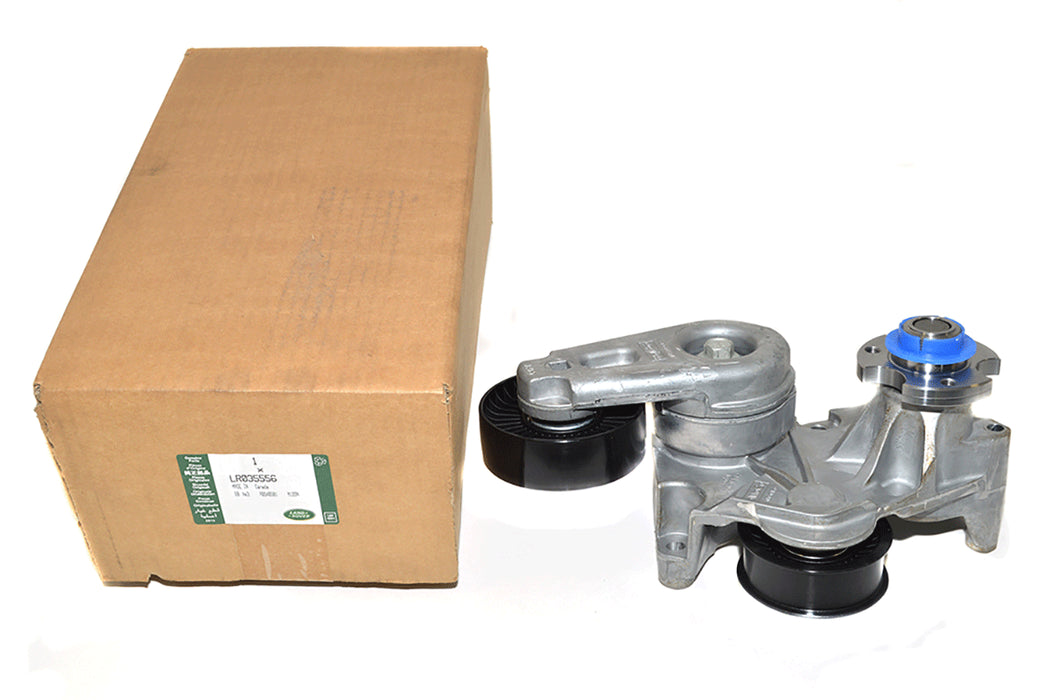

LR035556LR - Fan Bracket by LAND ROVEREngine Part Land Rover Range Rover

LR035556LR - Fan Bracket – With Idler & Tensioner

- €460,00
€460,00
€460,00 - €460,00
€460,00
Genuine Part
Genuine: Original manufacturer part. This product is the original part designed and produced by the vehicle manufacturer.
Fan Bracket for the secondary drive belt system, supplied complete with idler pulley and belt tensioner.

The bracket mounts to the front of the engine and carries the secondary drive belt circuit on supercharged petrol applications, locating both the idler pulley that routes the belt and the automatic tensioner that maintains belt tension.
Vehicle Model Land Rover Discovery 4 2010-2016 (L319)
Range Rover 2002-2012 (L322)
Range Rover 2013-2022 (L405)
Range Rover Sport 2005-2013 (L320)
Range Rover Sport 2014-2022 (L494)
Fitment Notes DISCOVERY 4 (LR4) 2010-2016 — 3.0L SC V6 Petrol. Secondary drive bracket with idler & tensioner assy, requires 1444mm belt. From VIN EA000001
RANGE ROVER L322 2010-2012 — 5.0L V8 SC Petrol (AJ133). Secondary drive bracket. From VIN AA000001
RANGE ROVER L405 2013> — 3.0L SC V6 / 5.0L V8 SC Petrol. Secondary drive bracket
RANGE ROVER SPORT L320 2010-2013 — 5.0L V8 SC Petrol (AJ133). Secondary drive bracket
RANGE ROVER SPORT L494 2014> — 3.0L SC V6 / 5.0L V8 SC Petrol. Secondary drive bracket
Alternative Codes
LR035556LR

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

  • Netherlands / Belgium / Germany: 2–4 working days after dispatch.
  • Other EU countries + UK: 4–8 working days after dispatch.
  • Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the fan bracket and what does it include?
The fan bracket mounts to the front of the engine and carries the secondary drive belt circuit. It is supplied complete with the idler pulley and automatic belt tensioner. It fits supercharged petrol engines.
Which models and engines does this fit?
This bracket fits supercharged petrol engines: the Discovery 4 (3.0 SC V6, using a 1444mm belt, from VIN EA000001), Range Rover L322 (5.0 V8 SC), Range Rover L405, and Range Rover Sport L320 and L494.
What are the signs this bracket assembly needs replacing?
Wear usually shows as noise from the idler or tensioner, belt squeal or belt misalignment. The tensioner can weaken with age, so the assembly is often renewed when the belt is serviced.
