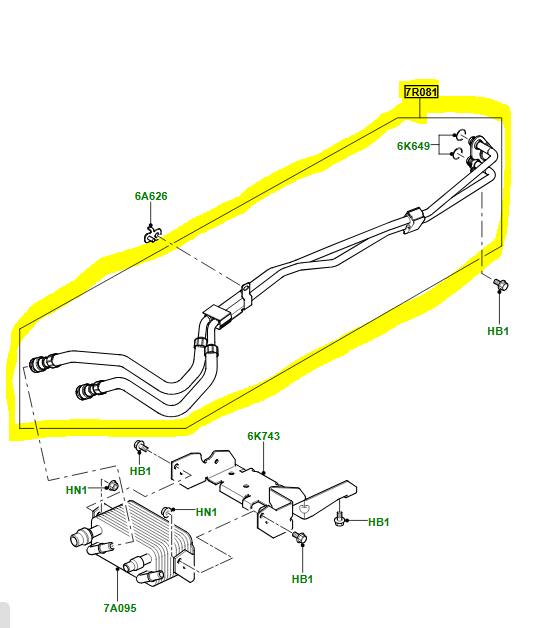

LR037224 - Transmission Oil Cooler Pipe Assembly by Land RoverCooling or Heating Part Land Rover Range Rover Discovery, Range Rover Sport

LR037224 - Transmission Oil Cooler Pipe Assembly

- €195,00
€195,00
€195,00 - €195,00
€195,00
Genuine Part
Genuine: Original manufacturer part. This product is the original part designed and produced by the vehicle manufacturer.
Transmission Oil Cooler Pipe Assembly, part of the automatic transmission fluid cooling circuit.

It routes transmission fluid between the ZF 6HP28 automatic gearbox and the transmission oil cooler, carrying heat away from the fluid before it returns to the gearbox. For the 3.0L V6 diesel with the ZF 6HP28 automatic transmission.
Vehicle Model Land Rover Discovery 4 2010-2016 (L319)
Range Rover Sport 2005-2013 (L320)
Fitment Notes DISCOVERY 4 2009-2016 — 3.0L V6 Diesel, ZF 6HP28 auto, from (V)AA000001
RANGE ROVER SPORT 2005-2013 — 3.0L V6 Diesel, ZF 6HP28 auto, from (V)AA000001
Alternative Codes
LR037224

In stock 1 unit
0 · Gouda 1 · Drachten
Express delivery available

When will my order arrive?
  • Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
  • UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
  • Netherlands / Belgium / Germany: 2–4 working days.
  • Other EU countries + UK: 4–8 working days.
  • Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What does the LR037224 transmission oil cooler pipe do?
The LR037224 transmission oil cooler pipe routes automatic transmission fluid between the ZF 6HP28 gearbox and the transmission oil cooler, carrying heat away before the fluid returns to the gearbox. It's fitted to the 3.0L V6 diesel driveline.
Where is this pipe located on the vehicle?
The pipe sits in the automatic transmission fluid cooling circuit, running between the ZF 6HP28 gearbox and the transmission oil cooler at the front of the vehicle. It's specific to the 3.0L V6 diesel with the 6HP28 automatic gearbox.
Which vehicles does the LR037224 pipe fit?
It fits the Discovery 4 (2009-2016) and Range Rover Sport L320 (2005-2013), both with the 3.0L V6 diesel and ZF 6HP28 automatic gearbox, from VIN AA000001. Confirm your gearbox is the 6HP28 before ordering, as the pipe is specific to that driveline.
